Carefree pool fun
With iQnnect, you can connect selected pool components to create an intelligently controlled pool system. Control your pool smartly and easily - for a carefree pool experience that leaves nothing to be desired.
- Comfortable
- Flexible
- Secure
- Premium quality
iQnnect components
The components for a smart pool control system
The iQnnect pool package combines selected products from the iQ series with control and automation components from Loxone. This allows you to centrally control and coordinate key functions of your pool system.
The components are carefully selected by our technical team and curated based on their technical capabilities and compatibility.
Whether you’re a private pool owner or a professional pool builder - iQnnect offers a flexible system solution for a variety of pool projects.
The main components
of the iQnnect system
Loxone Miniserver
The Loxone Miniserver serves as the central control unit of the system. Via Loxone Air, it communicates with the Loxone AQUASTAR® air and processes the corresponding control commands. It can be used either as a standalone server for the pool area or integrated into an existing smart home as a gateway client.
Loxone AQUASTAR® air
The Loxone AQUASTAR® air is a smart 6-way backwash valve that connects to the Miniserver via Loxone Air. It enables the control of various pool functions, such as the filter pump, level sensors, and temperature control. Functions such as backwashing, filter pump control, and level control can thus be automated.
Polyester Filter Bregenz 3 Pro
The Bregenz 3 Pro is a side-mount filter container made of glass-fiber-reinforced polyester. It is used to filter pool water. The large, transparent filter lid, with a diameter of 390 mm, provides a clear view of the filter area and makes maintenance easier.
Ocean Pool Pump Inver iQ 300
The self-priming pool pump features inverter technology and stepless speed control. Variable-speed operation allows the pump's performance to be adjusted to the specific operating requirements of the pool system. The pump is designed for quiet operation and enables flexible control of filter performance.
Smart Full Inverter Heat Pump iQ Inver Silence XP26
Allows you to control the pool water temperature using heating, cooling, and automatic modes. The desired water temperature is automatically maintained. Full-inverter technology adjusts the heat pump’s output to meet current operating requirements and ensures consistent temperature control. The heat pump is designed for quiet operation and offers convenient control of the pool temperature.
Intelligent water treatment
Crystal-clear water. Automated pool control.

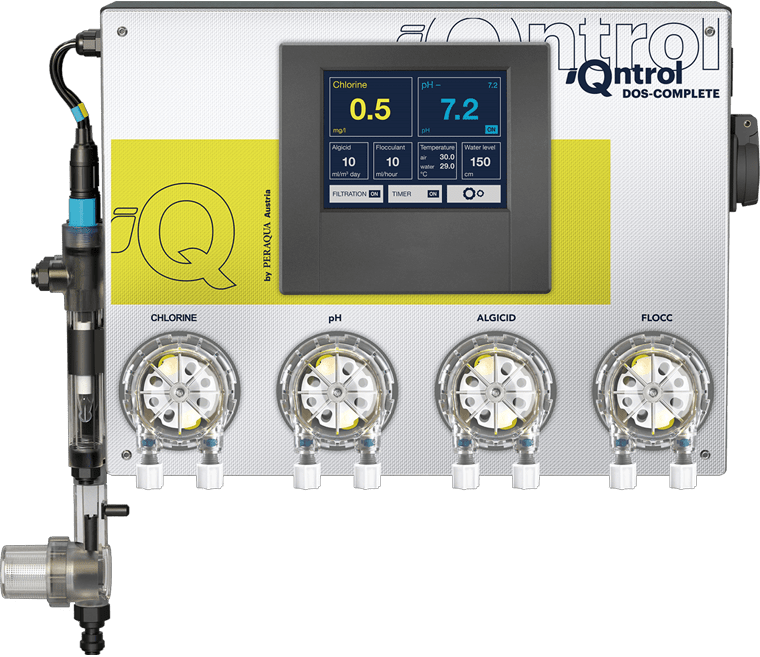

With iQnnect-compatible dosing and salt electrolysis systems, key water treatment functions can be integrated into the pool system.
The systems support the monitoring and regulation of relevant water parameters and enable the automatic control of various water treatment processes. Depending on the system used, parameters such as pH, disinfectant, algaecide, and flocculant are monitored or dosed.
Using the Loxone Smart Home App, you can keep track of your pool system and conveniently operate selected functions from home or on the go.
For private pool owners, this means convenient control over water treatment. Pool specialists benefit from an integrable system solution with automated functions and clear system control.
With iQnnect, you can combine water treatment, pool technology, and smart home control into a coordinated system.
The following water treatment systems are suitable for use in an iQnnect pool:
Aseko dosing system ASIN AQUA Home Pro
The dosing system automatically dispenses various water treatment chemicals. With its four dosing pumps, it can dispense disinfectants, pH adjusters, algaecides, and flocculants all through a single unit. The control system supports controlled and automated water treatment.
Aseko salt electrolysis system ASIN AQUA Salt Pro
The disinfection system features built-in pool management functions. It measures the salinity and redox potential and monitors the pH level of the pool water. The dosing is automatically adjusted based on the measured values and the current environmental conditions.
iQntrol dosing system DOS-NET Redox
This compact dosing system is designed for automated water treatment. It directly measures the redox potential of the pool water and uses the measured value to control the dosing of the connected water treatment chemicals.
iQntrol salt electrolysis system SALT-NET
The system combines high-performance salt electrolysis with redox- or CLF-controlled disinfection and automatic pH control. With a capacity of up to 20 g Cl/h and integrated pool management, this plug-and-play unit offers various functions for controlling water treatment.
Ocean Skimmer M5 De Luxe
This high-quality built-in skimmer is made of durable ABS and features an extra-wide intake opening. Its high water level of 4 – 5 cm, flexible connections, and an integrated sensor mount make it a versatile solution for modern pool systems.
Ocean Wide Mouth Skimmer Extension M5 De Luxe
The wide-mouth extension enlarges the intake opening of the Ocean Skimmer M5 De Luxe. It allows the skimmer to be adjusted to a higher water level and helps capture debris from the pool surface.
LED Underwater Pool Light VISION Pro RGBW
The LED underwater spotlight features 14 color programs and a wide beam angle. It enables a variety of lighting scenarios and creates an atmospheric ambiance while ensuring good visibility in the pool.
Praher Plastics 2-Way Ball Valve EO510
The S6 automatic ball valve opens during backwashing, rinsing, and draining. It helps control the water flow during the various switching operations and operating positions of the backwash valve.
iQnnect software complete packages
The iQnnect software enables quick and easy setup of the pool system using a preconfigured Loxone Config file. This file already contains all important functions and visualizations, can be easily transferred to the Loxone Miniserver, and can be customized.
Regular updates by the Peraqua technical team ensure that the installation is always up to date and efficient.
Expansion options for EVEN MORE convenience

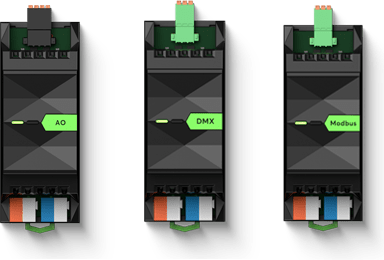

Using Loxone Extensions, additional devices can be integrated into the pool system or your existing smart home. For example, it is possible to integrate counter-current systems, pool covers, outdoor lighting, and video surveillance.
Extensions keep the iQnnect system flexible and expandable.
One Pool. One System. One Smart Home App.
Notes
- The iQnnect pool technology is suitable for private pools ranging in size from 5 × 3 × 1.5 m to 15 × 6 × 1.5 m. Depending on the pool size and individual requirements, different or additional products can be integrated.
- For iQnnect projects, we recommend collaboration between pool specialists and Loxone partners. We’d be happy to put you in touch with a partner near you.
- Loxone components are available through a Loxone partner or directly from Loxone.
- Loxone Miniserver and extensions are not included in the scope of delivery.
Ready
to take the first step?
Whether you’re planning a private pool or, as a professional contractor, looking for a reliable partner for your next project - we’re happy to help.
Simply fill out the form and tell us about your project. Our customer service team will receive your inquiry and get back to you promptly.
Our goal: to understand your needs, plan together, and find the right solution for your pool project.
Get started now – we look forward to your inquiry!
One Pool. One System. One Smart Home App.
