Aseko dosing system ASIN AQUA Home Pro
- Pool management
- Touch screen
- App-capable
- Plug-in ready
Description

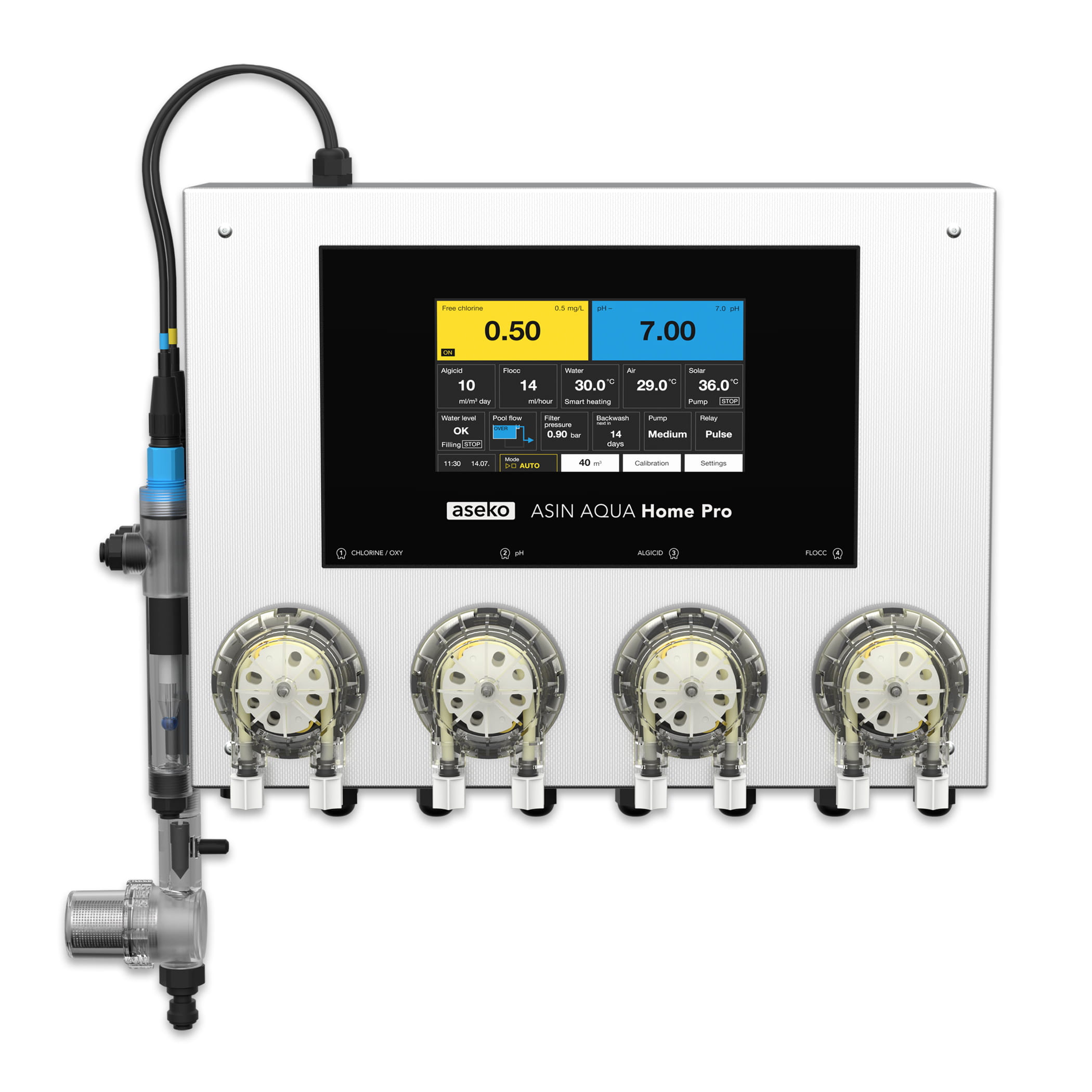

The ASEKO ASIN AQUA Home Pro is a professional measurement, control, and dosing system for private swimming pools up to approximately 250 m³.
It combines precise water treatment with comprehensive control of the entire pool system, thereby enabling largely automated, energy-efficient, and safe pool operation.
Available with CLF, Redox (ORP) oder active oxygen (Oxy) technology.
Product details
Technical data
| |
ASIN AQUA Home Pro |
|---|
| Power supply: | 230 V / 50 Hz |
| Power consumption: | 24 VA |
| Power consumption with filter pump: | 1449 VA |
| Fuses: | T1 A; T6.3 A |
| Overvoltage category: | II |
| Protection class: | IP40 |
| Pump power: | 60 ml/min and 10 ml/min (max. 1 bar) |
| Measured water pressure: | 1 bar (must not be vacuum) |
| Operating temperature: | +5 °C to +40 °C |
| Dimensions: | 430 x 330 x 160 mm |
| Weight: | approx. 6.7 kg |
| Installation: | Wall-mounted unit |
Features
- Water treatment method: Depending on the model, CLF, Redox, or active oxygen (Oxy).
- Fully automatic water treatment (disinfectant depending on the selected variant, pH, algaecide, flocculant)
- Central control of all pool technology
- Energy-efficient operation through pump control, solar, and PV integration
- Remote monitoring via app and cloud
- High operational reliability thanks to intelligent safety features
- Fewer individual components and simplified installation
Water treatment
Depending on the model selected, different measurement principles and disinfection methods are used:
CLF
| Method: | Chlorine |
| Measuring principle: | pH value + free chlorine (CLF probe) |
| Disinfectant: | Chlorine |
| Technology: | CLF probe with membrane technology measures the actual chlorine concentration |
| Features: | - The most precise chlorine control through direct chlorine measurement
- Also works with chlorine-free disinfectants (can be combined)
|
Redox
| Method: | Chlorine |
| Measuring principle: | pH value + Redox potential (ORP) |
| Disinfectant: | Chlorine |
| Technology: | Redox probe measures the disinfecting effect (not direct chlorine concentration) |
| Features: | - Demand-based chlorine dosing via Redox potential
- Evaluates the effectiveness of disinfection, not the amount of chlorine itself
|
OXY (Aktivsauerstoff)
| Method: | chlorine-free |
| Measuring principle: | pH value |
| Disinfectant: | Active oxygen (Oxy Pure) |
| Technology: | Chlorine-free oxygen technology based on the synergy of dosed chemicals and pool system control functions. |
| Features: | - High efficiency even at high temperatures and under intense sunlight
- Thanks to the coagulation mixer and filter disinfection, the system maximizes the efficiency of oxygen-based treatment
- Demand-based dosing of Oxy Pure
- Particularly gentle on the skin and eyes, ideal for people with allergies and for hot tubs
|
Differences Between Active Oxygen and Chlorine
Active oxygen provides a particularly gentle bathing experience, as it significantly reduces the smell of chlorine and irritation to the skin, eyes, and mucous membranes.
It is therefore especially pleasant for people with sensitive skin, those with allergies, and for hot tubs or smaller private pools.
Compared to chlorine, it is gentler on the skin and more odorless. However, it requires more careful monitoring under heavy use or at high temperatures, as its effectiveness can diminish more quickly.
In addition, the system automatically monitors and adjusts the pH level. The dosing of algaecides and flocculants (FLOC+C) is also fully automated, ensuring consistently high water quality while reducing chemical consumption.
Pool technology management
In addition to water treatment, the system performs numerous control functions:
- Control of circulation pumps, including variable-speed models
- Heating and solar control
- Automatic filter backwashing with optional filter disinfection
- Filter pressure monitoring
- Water level measurement with automatic refilling
- Switching between floor drain and skimmer/overflow operation
- Detection of the pool cover's position and movement
- Winter mode for the cold season
Energy and Automation Features
The system can detect excess photovoltaic power and use it to power pool functions. In addition, it features relay outputs for controlling lighting and other appliances, as well as interfaces for integration into pool automation and smart pool systems such as iQnnect and iQmfort.
Remote Monitoring and User-Friendly Operation
Water parameters, temperature, chemical usage, and system status can be monitored at any time via the touchscreen, app, and cloud platform. In addition, remote control allows you to adjust operating modes, pump output, filtration times, and other pool functions.
Safety
Comprehensive safety features monitor dosing quantities, flow rates, sensors, and system status. Automatic alerts and protective mechanisms prevent malfunctions and damage.
Benefits and Cost-Saving Potential
The ASIN AQUA Home Pro combines fully automatic water treatment and centralized pool system control in a single system, thereby offering significant cost-saving potential.
Through continuous measurement and on-demand dosing of disinfectants (depending on the selected model), pH correctors, algaecides, and flocculants, water treatment products are used efficiently, while at the same time reducing the need for manual maintenance and ensuring consistently high water quality.
Additional cost savings result from the intelligent control of the circulation pump, heating system, solar thermal system, and photovoltaic system. The ability to control variable-speed pumps reduces energy consumption, demand-based heating control lowers heating costs, and the use of solar and PV surplus energy maximizes the use of free energy. Automatic filter backwashing, filter pressure monitoring, and water level control also minimize maintenance effort and operating costs.
Since numerous functions are bundled into a single control platform, the need for separate components and control units is reduced. This simplifies planning, installation, and operation, and overall leads to lower energy, maintenance, and investment costswhile providing greater comfort, high operational reliability, and consistently optimal water quality.
Versions
| Product |
Art. Nr. |
|---|
| Aseko dosing system ASIN AQUA Home Pro Redox | 7302075 |
| Aseko dosing system ASIN AQUA Home Pro Oxy | 7302076 |
| Aseko dosing system ASIN AQUA Home Pro CLF | 7302077 |
Suitable for
For easy operation
External touchscreen display
For convenient pool control with password protection, display of all water parameters, a sleek glass-and-stainless-steel design, and wall mounting.
