iQntrol salt electrolysis system SALT NET Redox/CLF
- Pool management
- Touch screen
- App-capable
- Plug-in ready
Description

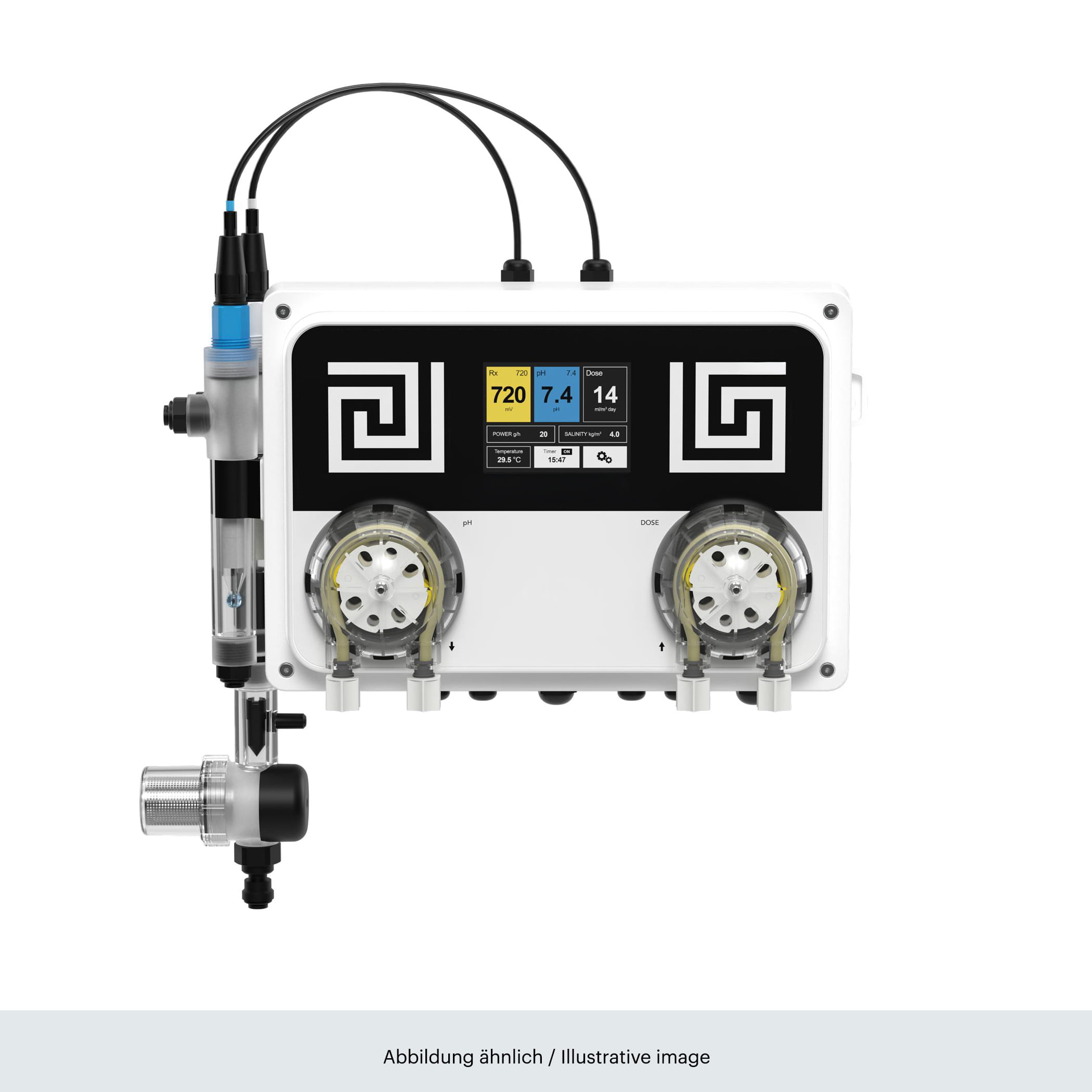

The iQntrol salt electrolysis system SALT NET Redox/CLF is a compact, networked all-in-one solution for fully automatic water treatment in private saltwater pools.
The system combines high-performance salt electrolysis (up to 20 g Cl/h), redox- or CLF-controlled disinfection, automatic pH control, and integrated pool management in a plug-and-play unit. Designed for private pools up to 70 m³ (with an 8-hour pump runtime), the system ensures consistent water quality with minimal chemical use.
Thanks to LAN and RS485 interfaces, a touchscreen display, and app and web connectivity, the system is ideally suited for modern service concepts featuring remote diagnostics and digital monitoring.
Product details
Technical data
| |
Salt electrolysis system SALT NET |
|---|
| Power supply: | 230 V / 50 Hz |
| Power consumption: | 150 W |
| Fuses: | T100 mA |
| Overvoltage category: | II |
| Protection: | IP40 |
| Pump power: | 60 ml/min (max. 1 bar) |
| Measured water pressure: | 1.5 bar |
| Chlorine production: | up to 20 g/h |
| Operating range: | 3.0 - 4.5 g/l salt |
| Operating temperature: | +5 °C to +40 °C |
| Weight: | ca. 2.2 kg |
| Installation: | Wall-mounted unit |
Disinfection & water balance
- Depending on the model: redox-controlled chlorine production (ORP) or controlled electrolysis for the generation of free chlorine, regulated by the CLF probe
- Ti20 Titanium-Iridium electrode
- Salt electrolysis with up to 20 g Cl/h
- Operating range: 3.0 - 4.5 g/l salt
- Automatic dosing of pH-Minus
- Time-controlled dosing of algicide / Floc+c / ACO
- Integrated salinity measurement unit
- Integrated peristaltic pump (60 ml/min)
- Hybrid function (electrolysis + dosing support) possible
Control & safety features
- Integrated pump control
- Level control
- Electronic flow sensor with fine filter
- Advanced safety and monitoring features
- Wall-mounted compact unit (IP40)
- Plug-and-play design
Operation & Connectivity
- On-device touchscreen
- LAN and RS485 interfaces
- App and web monitoring (remote access, historical graphs, event logs)
- Remote diagnostics and service optimization
Fully automatic water treatment and pH control
The built-in sensor continuously measures free chlorine and the oxidation-reduction potential (ORP) and automatically adjusts chlorine production. At the same time, the long-life pH sensor ensures precise pH control by dosing pH-Minus as needed.
The result:
- Stable water values
- Reduced chemical consumption
- Fewer manual interventions
- Pleasantly soft saltwater
Smart pool control with app & remote monitoring
The system can be integrated into modern pool technology via LAN or RS485. With the Aseko Pool Live app, operators and service partners can:
- Monitor water parameters in real time
- Check dosing quantities
- Detect malfunctions early
- Plan maintenance efficiently
Perfect for pool builders, specialty retailers, and service providers with a remote service concept.
Flexible disinfection strategy
The device supports three basic modes for water treatment:
- Dosing mode: The integrated peristaltic pump (PP60) doses liquid chlorine directly from a chemical tank into the system. The dosing rate is controlled based on the measured redox value or free chlorine level, ensuring that only as much chlorine is added as is necessary to achieve a preset target value.
- Salt mode: The device activates an external salt electrolysis unit via an internal relay. The electrolysis unit is responsible for the actual chlorine production; the iQntrol system controls when it is turned on or off, based on the current redox value/free chlorine level and the set parameters.
- Hybrid mode: Combination of salt electrolysis and a dosing pump. Electrolysis takes priority; if the chlorinator does not produce enough chlorine and the redox value or free chlorine level falls below the target range, the unit automatically activates the dosing pump to quickly reach or maintain the target value.
Versions
| Product |
Art. Nr. |
|---|
| iQntrol salt electrolysis system SALT-NET 20 g Redox | 7302055 |
| iQntrol salt electrolysis system SALT-NET 20 g CLF | 7302056 |
Scope of delivery
- Ti20 electrode
- pH electrode Long Life
- REDOX electrode Long Life or CLF electrode
- Peristaltic pump (PP60)
- Electronic flow monitor with filter
- Thermometer
- Thermometer immersion sleeve
- Sampling ball valve, 2 pcs.
- Injection valve, 2 pcs.
- Suction set for 20 L canister, 2 pcs.
- PE tubing 6.35 mm (1/4") 20 m - transparent
- Anchors and screws
Suitable for
For easy operation
External touchscreen display
For convenient pool control with password protection, display of all water parameters, a sleek glass-and-stainless-steel design, and wall mounting.
