Aseko salt electrolysis system ASIN AQUA Salt Pro Redox, 30 g Cl/h

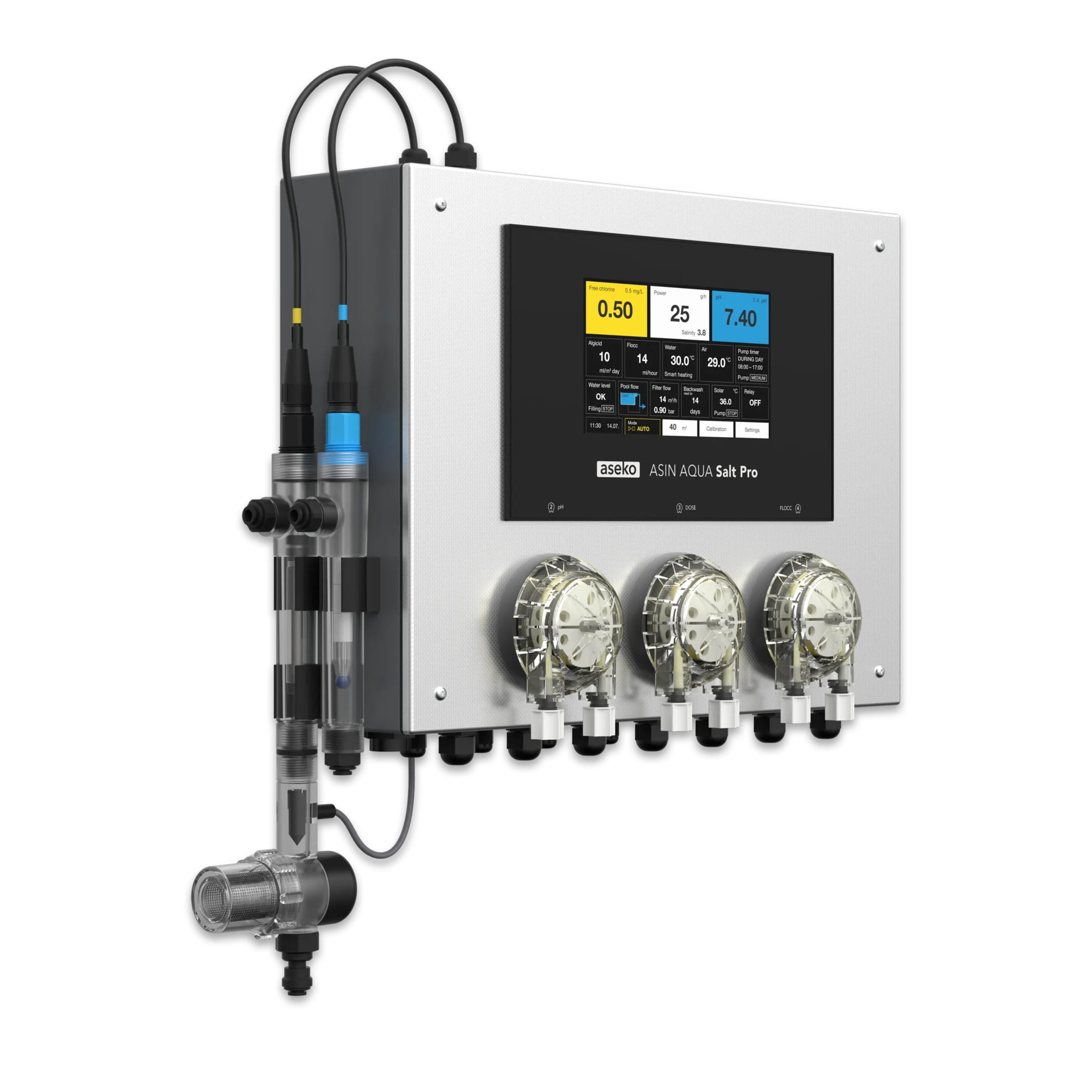

Aseko salt electrolysis system ASIN AQUA Salt Pro Redox

• Pool management
• Touch screen
• App-capable
• Plug-in ready

Description

The Aseko salt electrolysis system ASIN AQUA Salt Pro Redox was specifically developed for automatic pool water treatment in modern saltwater pools.

The system combines salt electrolysis, pH control, redox monitoring, and pool automation in a single central control unit. This allows for continuous monitoring and automatic regulation of disinfection, water balance, and technical system components. For pool builders, specialty retailers, and operators, this offers an efficient solution for ensuring consistently high water quality while reducing service and chemical costs.

The system generates disinfectant chlorine directly from the salt dissolved in the pool water. At the same time, a redox probe and a pH probe continuously monitor the water parameters. An intelligent control algorithm automatically regulates chlorine production and the dosing of pH correctors.

With a chlorine production capacity of up to 30 g/h at a salt concentration of 4 g/l, the system is suitable for pools up to 100 m³.

Product details

Technical data

Features

• Direct measurement of the Redox potential for maximum control accuracy
• Redox-controlled (ORP) chlorine production
• Ti30 titanium-iridium electrode
• Salt electrolysis with up to 30 g Cl/h
• Optimal chlorine production at a salt concentration of 4 g/l
• Fully automatic water treatment (chlorine, pH, algaecide, flocculant)
• Central control of all pool technology
• Energy-efficient operation through pump control, solar, and PV integration
• Remote monitoring via app and cloud
• High operational reliability thanks to intelligent safety features
• Fewer individual components and simplified installation

Water treatment and salt electrolysis

The Aseko ASIN AQUA Salt Pro Redox combines automatic water analysis, intelligent dosing technology, and powerful salt electrolysis in a compact system. The chlorine needed for disinfection is generated directly from the salt dissolved in the pool water, significantly reducing the need for manual addition of chlorine products.

The system continuously measures the Redox potential using a redox probe and automatically adjusts chlorine production to meet the actual disinfection requirements. At the same time, the integrated pH control system monitors and adjusts the pH level to ensure optimal water disinfection effectiveness.

For comprehensive water treatment, algaecide and the flocculant FLOC+C can also be dosed fully automatically. This efficiently binds suspended solids, reduces algae growth, and maintains stable water quality over the long term. Dosage based on actual needs also contributes to the economical use of chemicals.

At the heart of the salt electrolysis system is the durable Ti30 titanium electrode with a high-quality ruthenium-iridium coating, which enables reliable and efficient chlorine generation. The system operates optimally at a salt concentration of 4.0 g/l.

Benefits at a glance:

• Automatic chlorine generation from pool salt
• Redox-controlled chlorine production based on actual demand
• Automatic pH control for stable water parameters
• Fully automatic dosing of algaecide and FLOC+C
• Continuous monitoring of water quality
• Reduced chemical consumption through demand-based dosing
• Ti30 titanium electrode with ruthenium-iridium coating
• Consistent water disinfection and high swimming comfort

Pool technology management

In addition to water treatment, the system performs numerous control functions:

• Control of circulation pumps, including variable-speed models
• Heating and solar control
• Automatic filter backwashing with optional filter disinfection
• Filter pressure monitoring
• Water level measurement with automatic refilling
• Switching between floor drain and skimmer/overflow operation
• Detection of the pool cover's position and movement
• Winter mode for the cold season

Energy and Automation Features

The system can detect excess photovoltaic power and use it to power pool functions. In addition, it features relay outputs for controlling lighting and other appliances, as well as interfaces for integration into pool automation and smart pool systems such as iQnnect and iQmfort.

Remote Monitoring and User-Friendly Operation

Water parameters, temperature, chemical usage, and system status can be monitored at any time via the touchscreen, app, and cloud platform. In addition, remote control allows you to adjust operating modes, pump output, filtration times, and other pool functions.

Safety

Comprehensive safety features monitor dosing quantities, flow rates, sensors, and system status. Automatic alerts and protective mechanisms prevent malfunctions and damage.

Benefits and Cost-Saving Potential

The ASIN AQUA Salt Pro Redox combines fully automatic water treatment and centralized pool system control in a single system, thereby offering significant cost-saving potential.

Through continuous measurement and on-demand dosing of chlorine, pH correctors, algaecides, and flocculants, water treatment products are used efficiently, while at the same time reducing the need for manual maintenance and ensuring consistently high water quality.

Additional cost savings result from the intelligent control of the circulation pump, heating system, solar thermal system, and photovoltaic system. The ability to control variable-speed pumps reduces energy consumption, demand-based heating control lowers heating costs, and the use of solar and PV surplus energy maximizes the use of free energy. Automatic filter backwashing, filter pressure monitoring, and water level control also minimize maintenance effort and operating costs.

Since numerous functions are bundled into a single control platform, the need for separate components and control units is reduced. This simplifies planning, installation, and operation, and overall leads to lower energy, maintenance, and investment costswhile providing greater comfort, high operational reliability, and consistently optimal water quality.

Versions

Scope of delivery

• Ti30 electrode
• Redox probe Long Life
• pH electrode Long Life
• Probe mount, 2 pcs.
• Peristaltic pumps (2 x PP60 + 1 x PP10)
• Flow sensor with fine filter and salinity measurement
• Thermometer
• Thermometer immersion sleeve
• Sampling ball valve, 2 pcs.
• Injection valve, 3 pcs.
• Cap with suction tube housing for 20l canister, 3 pcs.
• PE tube 6,35 mm (1/4") 20 m - transparent
• Mounting rail, 1 pcs.
• Dowels and screws

Suitable for

• iQnnect - Smart Pool Systems
• iQmfort - Pool Automation

For easy operation

External touchscreen display
For convenient pool control with password protection, display of all water parameters, a sleek glass-and-stainless-steel design, and wall mounting.
