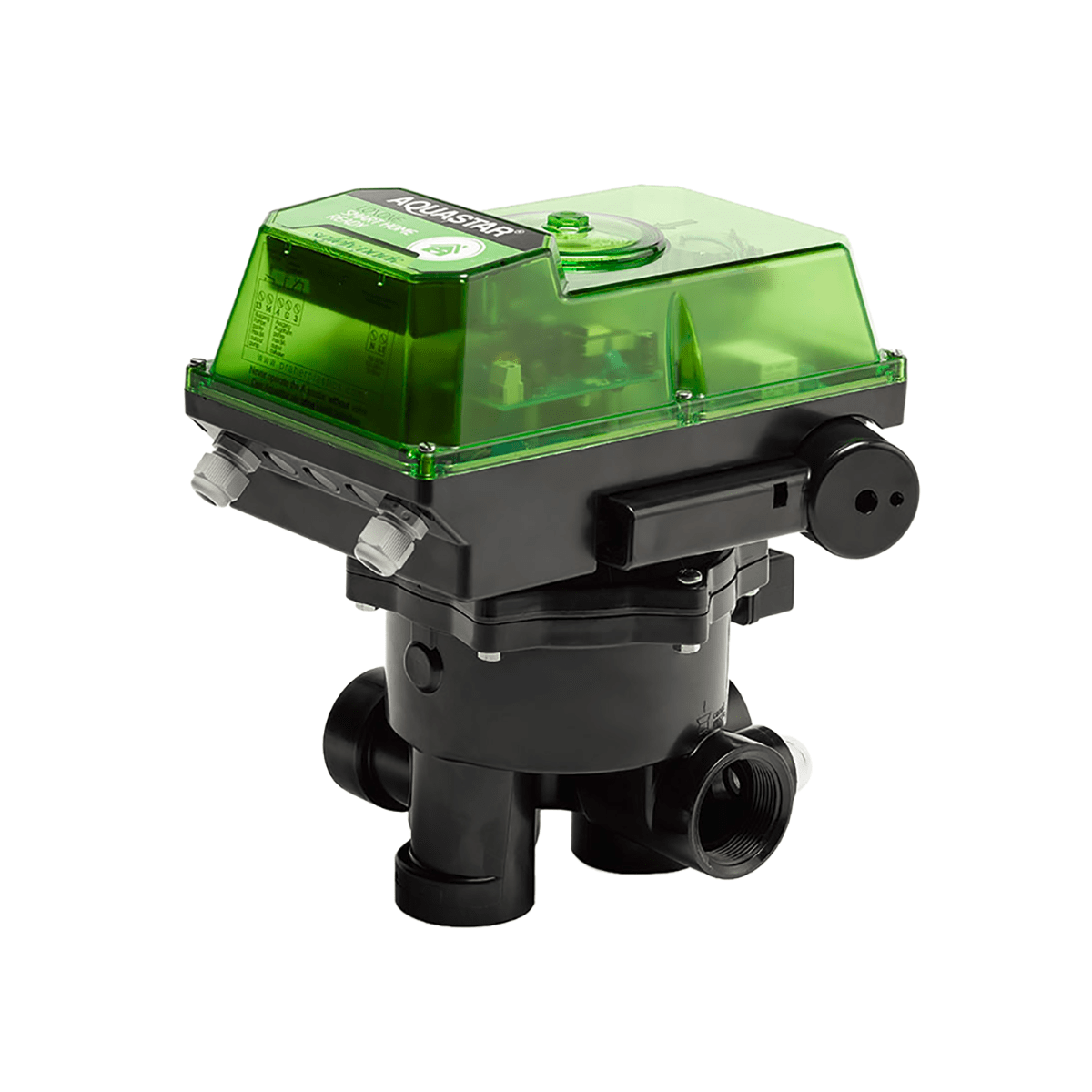

LOXONE AQUASTAR® Air 6-Way Backwash Valve
- LOXONE Air
Technology
- iQnnect
Smart Pool compatible
- App
Control
- Retrofit
Easily possible
Description
The LOXONE AQUASTAR® Air is a control and automation solution for Praher 6-way backwash valves in swimming pool systems. When used in combination with a LOXONE Miniserver, the system enables the automatic execution of filter and backwash cycles as well as the control of other pool system components.
The system supports the valve positions Filter, Backwash, Rinse, Circulate, Drain, Closed as well as an additional Winter Position to relieve pressure on the seals during winter storage. Backwashing can be automated based on time or pressure. Additionally, the control system supports the integration of other pool equipment components, such as pool pumps, EO510 electric ball valves, solenoid valves for automated water filling, and heat exchangers for pool heating.
Wireless communication with the LOXONE Miniserver is enabled via LOXONE Air technology. Operation and visualization can be performed via compatible devices within the LOXONE system. In addition, the solution offers various interfaces for temperature sensors, pressure sensors, and other automation components.

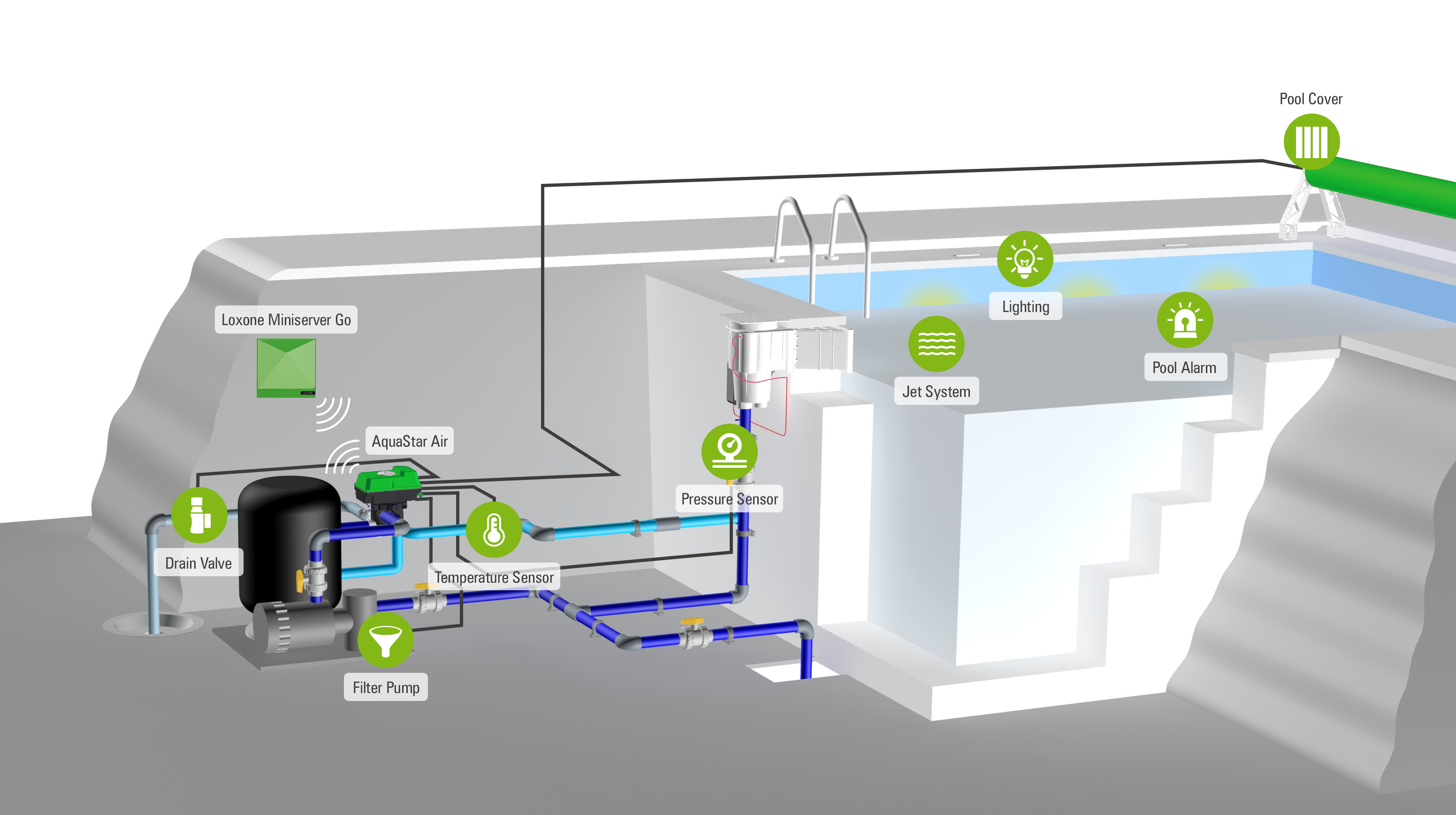

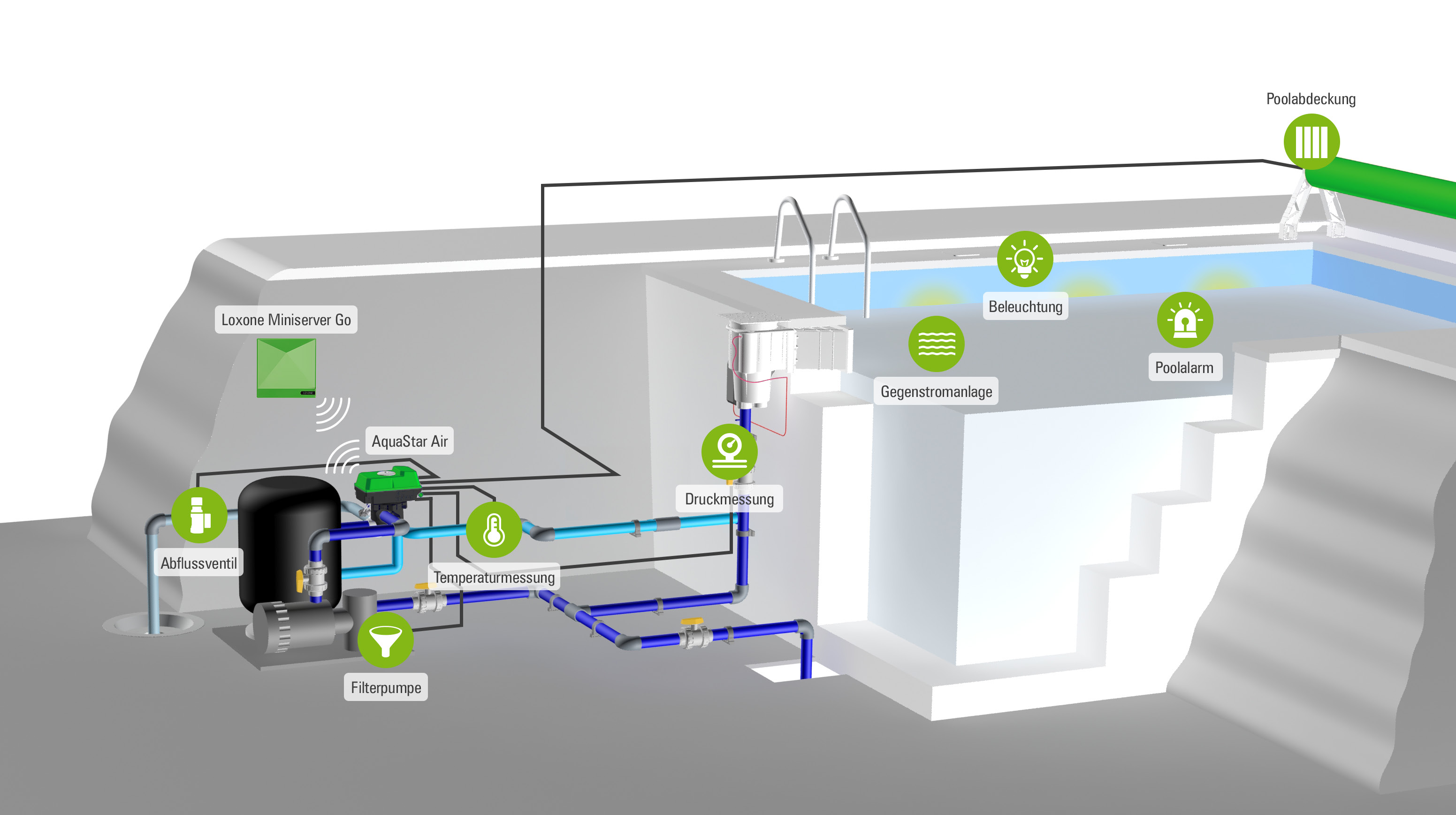

As part of the iQnnect concept, the LOXONE AQUASTAR® Air can be integrated into a networked pool management system. This allows functions such as filter control, pool lighting, water treatment, heat pump control, and water level control to be managed within a single system.
Product details
| |
LOXONE AQUASTAR® Air 6-Way Backwash Valve |
| Product Type: | Automated 6-Way Backwash Valve / Pool Control |
| Communication: | LOXONE Air wireless technology |
| Voltage: | 100–240 V AC, 50/60 Hz |
| Protection rating: | IP65 |
| Max. power consumption: | 15 W |
| Environmental conditions: | 0–40°C, non-condensing |
| Pressure: | MOP 3.5 bar |
| Max. static pressure: | 0.3 bar |
| Max. water column: | 3 m |
| Housing material: | ABS |
| Seal material: | NBR |
| Seat seal: | TPE |
| Nominal diameter: | 1 ½" or 2" |
| Pipe connection type: | BSP thread, top and bottom solvent socket |
| Number of ports: | 3 |
| Series: | V6 ND |
| Type: | SM10 or SM20 |
Features
- Centralized control and status monitoring via compatible devices.
- Part of the iQnnect pool automation concept.
- Reduces the manual effort required for recurring filtration processes.
- Supports automated backwash and filtration cycles.
- Control of valve positions for various operating modes.
- Wireless communication via LOXONE Air.
- Remote control and visualization via the LOXONE system.
- Integration of temperature, pressure, and level monitoring.
- Direct control of pool pumps and EO510 electric ball valves.
- Retrofitting of existing filter systems with compatible Praher valves is possible.
- Integration of additional sensors and automation components is possible.
Interfaces
- 1-Wire input for temperature sensors
- 1 analog input, 0.5 to 5 V
- 1 analog input, 0 to 10 V
- 3 relay outputs, 250 V AC / 5 A, for flexible use
- LOXONE Air technology for wireless communication with the LOXONE Miniserver
- Direct pump connection (250 V AC, 8 A)
Smart Home Integration
When used in combination with a LOXONE Miniserver, the LOXONE AQUASTAR® Air can be seamlessly integrated into an existing LOXONE system. This allows pool and building systems to be networked within a single automation platform, monitored centrally, and controlled as needed.
Possible applications:
- Control and automation of pool lighting.
- Integration of pool lighting into existing smart home and building systems.
- Joint control of pool and home systems, such as shading systems, alarm systems, or audio solutions.
- Demand-based control of pool systems such as filter pumps and heating systems in conjunction with compatible components.
- Centralized visualization and control of various functions via the LOXONE environment.
- Push notifications for important pool system events directly in the LOXONE Smart Home App.
Note: Actual functionality, as well as operating and consumption values, depend on the specific system configuration, the components used, and individual usage conditions.
Scope of Delivery
- LOXONE AQUASTAR® Air (pre-assembled on the backwash valve)
- 1-Wire Temperature Sensor
- SMA Antenna 868 MHz
Versions
| Product |
Art. Nr. |
| LOXONE AQUASTAR® Air, SM10, 1 ½", ABS | 131372a |
| LOXONE AQUASTAR® Air, SM20, 2", ABS | 131373a |
Operating Requirements
- A LOXONE Miniserver is required for the setup and operation of the LOXONE AQUASTAR® Air.
- The LOXONE Miniserver is not included in the scope of delivery and is available separately from LOXONE or authorized LOXONE partners.
