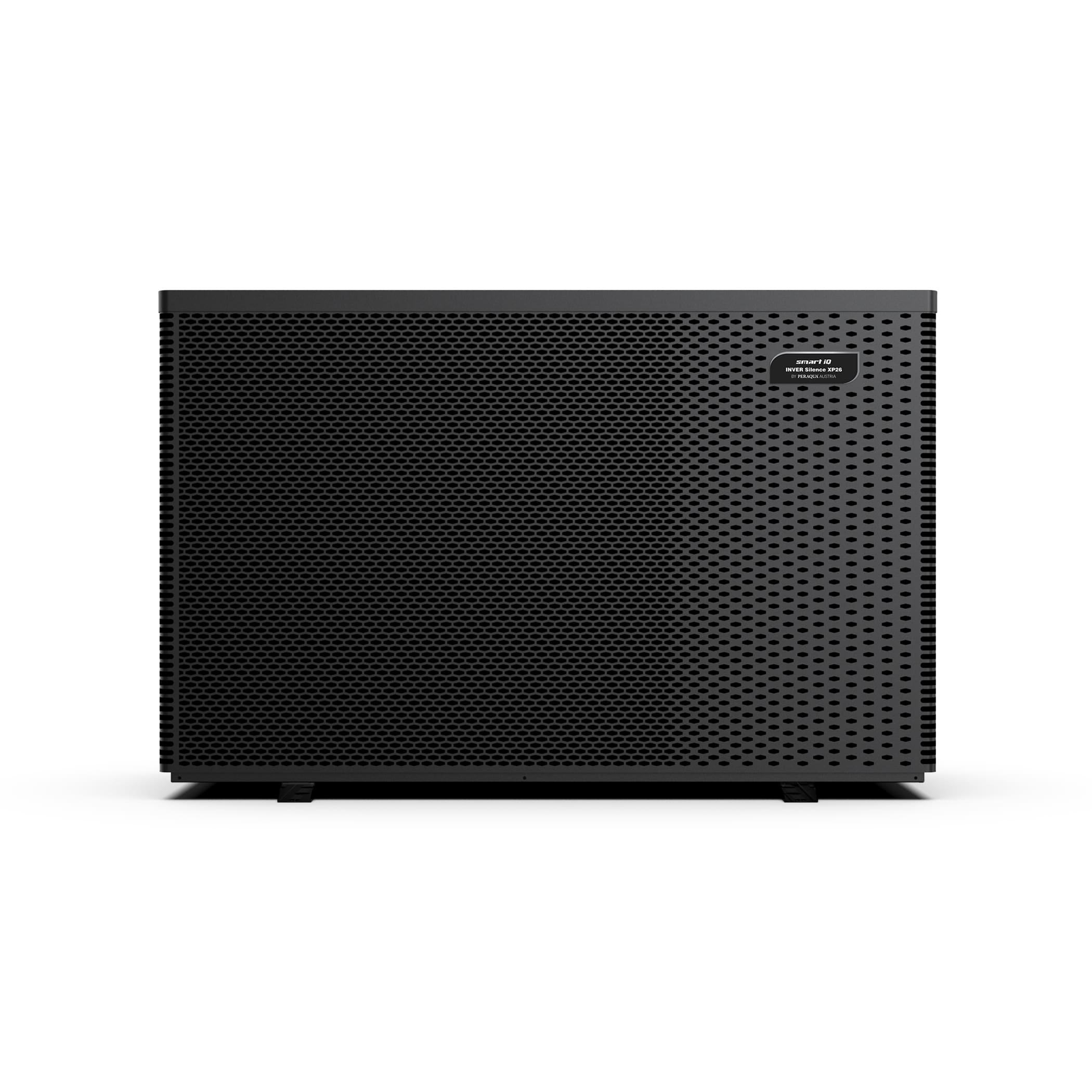

Smart full inverter heat pump iQ Inver Silence XP26

Description

The Smart Full Inverter Heat Pump iQ Inver Silence XP26 was developed for heating and cooling private and commercial pools.

The heat pump uses inverter technology with continuously variable power control. This allows the heating output to be adjusted to current demand. Depending on the model and operating conditions, COP values of up to 30 can be achieved.

R290, with a GWP value of 3, is used as the refrigerant. The heat pump is equipped with a titanium heat exchanger and is suitable for use in pools with chlorine or saltwater treatment.

The aluminum alloy housing and the design for operating temperatures ranging from -20 °C to +43 °C enable use under a variety of environmental conditions.

Operation is via a digital touchscreen display with microprocessor control. Additionally, a Wi-Fi connection is available for control via an app. The heat pump can be integrated into compatible building and pool control systems via Modbus RTU.

10-year replacement warranty for gas leaks and a 5-year warranty on other components in accordance with warranty terms (excluding shipping and installation costs).

Product details

Performance conditions: air 26°C, water 26°C, humidity 80%

Swipe/scroll to see all columns

	9.6 kW	11.5 kW	13.8 kW	16.5 kW	19 kW	22 kW	26 kW	26 kW	32 kW	32 kW	40 kW
Heating capacity (kW) Smart mode	7.8	8.6	11.5	13.6	15.0	17.2	21.7	21.7	26.6	26.6	33.5
Heating capacity (kW) Turbo mode	9.6	11.5	13.8	16.5	19.0	22.0	26.0	26.0	32.0	32.0	40.0
C.O.P	21.2~7.4	23.0~7.5	21.5~7.4	21.6~7.2	22.1~7.1	26.0~7.3	20.3~7.2	20.0~7.0	21.3~7.1	20.5~7.0	20.7~7.1
C.O.P at 50% speed	14.1	14.4	14.7	14.5	14.3	15.5	14.6	14.4	14.5	14.4	14.4

Performance conditions: air 15°C, water 26°C, humidity 70%

	9.6 kW	11.5 kW	13.8 kW	16.5 kW	19 kW	22 kW	26 kW	26 kW	32 kW	32 kW	40 kW
Heating capacity (kW) Smart mode	5.3	6.1	7.4	9.0	10.2	12.1	14.5	14.5	18.0	18.0	23.0
Heating capacity (kW) Turbo mode	6.5	8.1	9.0	11.0	13.0	15.4	17.5	17.5	21.7	21.7	27.6
C.O.P	7.7~5.3	8.5~5.4	7.8~5.1	8.6~5.1	8.0~4.9	8.9~5.2	7.7~5.3	7.6~5.2	8.1~5.2	7.8~5.1	7.9~4.8
C.O.P at 50% speed	7.1	7.3	7.2	7.4	7.1	7.0	7.6	7.1	7.3	7.3	7.3

Performance conditions: air 35°C, water 28°C, humidity 80%

	9.6 kW	11.5 kW	13.8 kW	16.5 kW	19 kW	22 kW	26 kW	26 kW	32 kW	32 kW	40 kW
Cooling capacity (kW)	4.6	5.3	6.3	8.4	9.6	11.1	12.3	12.3	14.4	14.4	18.4

Technical data

	9.6 kW	11.5 kW	13.8 kW	16.5 kW	19 kW	22 kW	26 kW	26 kW	32 kW	32 kW	40 kW
Advised pool volume (m³)	18 - 35	25 - 40	30 - 50	35 - 60	40 - 65	45 - 75	55 - 90	55 - 90	65 - 105	65 - 105	75 - 120
Working air temperature (°C)	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*	-20 - 43*
Sound pressure 1 m dB(A)	36.9 - 43.9	38.1 - 45.4	38.1 - 46.3	41.3 - 47.2	41.9 - 47.9	42.2 - 49.9	41.1 - 50.3	41.1 - 50.3	42.5 - 50.9	42.5 - 50.9	41.8 - 51.9
Sound pressure 10 m dB(A)	16.9 - 23.9	18.1 - 25.4	18.1 - 26.3	21.3 - 27.2	21.9 - 27.9	22.2 - 29.9	21.1 - 30.3	21.1 - 30.3	22.5 - 30.9	22.5 - 30.9	21.8 - 31.9
Sound pressure 50% capacity 1 m dB(A)	37.9	39.1	40.6	43.0	42.8	43.6	44.4	44.4	45.5	45.5	45.8
Compressor	Twin-rotary DC-inverter
Heat exchanger	Lightning heat exchanger
Housing	Aluminium-alloy casing
Phases	1	1	1	1	1	1	1	3	1	3	3
Power supply 50 Hz (V)	230	230	230	230	230	230	230	400	230	400	400
Rated input power at air 15 °C (kW)	0.14 - 1.23	0.14 - 1.5	0.19 - 1.76	0.21 - 2.16	0.26 - 2.65	0.27 - 2.96	0.38 - 3.3	0.38 - 3.37	0.44 - 4.17	0.46 - 4.25	0.58 - 5.75
Rated input current at air 15 °C (A)	0.61 - 5.35	0.61 - 6.52	0.83 - 7.65	0.91 - 9.39	1.13 - 11.52	1.17 - 12.87	1.65 - 14.35	0.55 - 4.86	1.91 - 18.13	0.66 - 6.13	0.84 - 8.3
Advised water flux (m³/h)	2 - 4	2 - 4	3 - 4	4 - 6	4 - 6	6.5 - 8.5	8 - 10	8 - 10	10 - 12	10 - 12	12 - 18
Water pipe spec in‑out (mm)	50	50	50	50	50	50	50	50	50	50	50
Net dimension LxWxH (mm)	923x427x661	923x427x661	1120x427x661	1110x427x760	1160x427x760	1146x536x955	1146x536x955	1146x536x955	1315x536x1055	1315x536x1055	1400x536x1250
Net weight (kg)	67	67	75	83	86	110	113	122	133	143	180
Gas (g)	750	750	950	1000	1150	1300	1500	1500	2200	2200	3000
GWP	3	3	3	3	3	3	3	3	3	3	3
CO₂ equivalent (t)	2.30	2.30	2.90	3.00	3.50	3.90	4.50	4.50	6.60	6.60	9.00
Art.-Nr.	on demand	7302029	7302030	7302031	7302032	on demand	7302034	on demand	on demand	7302036	7302037

* Efficient and optimum operation is only recommended above freezing point (0 C°). The specified values apply under ideal conditions: Pool is covered with an isothermal cover, filter system runs at least 15 hours a day, minor deviations in the technical specifications are possible depending on the system and subject to technical changes.

Features

Heating and Cooling
Control via the Inverter Life app
Variable-speed fan motor
Continuously variable inverter compressor
Soft-start function
Aluminum alloy housing
R290 refrigerant (GWP 3)
COP values of up to 30 under defined test conditions
Turbo mode for increased heating capacity
Smart mode for demand-based capacity control
Silence mode to reduce noise levels
Power-off memory function
Titanium heat exchanger for pools with salt electrolysis
Automatic hot-gas defrost
Automatic flow detection via integrated flow switch
Direct pump control
Diagnostic functions and parameter menu
Modbus RTU compatible
Wi-Fi connectivity for mobile operation

Product note

Winter cover, vibration absorber and condensation drain set are already included in the scope of delivery.

Note on Performance Values

The specified performance, COP, and energy consumption values apply exclusively under the respective test and operating conditions listed. Actual performance in practical use depends, among other factors, on pool size, water temperature, outdoor temperature, operating duration, system configuration, and usage.
