iQnnect combines high-quality pool technology from Peraqua with smart automation from Loxone. The result is a centrally controllable pool system that connects the pool, home, and garden.
- Comfortable
- Flexible
- Secure
- Premium quality
Peraqua and Loxone -
a successful partnership
Peraqua and Loxone combine their respective expertise to create an intelligent, modular control system for pools.
iQnnect enables the integration of pool technology, smart home systems, and the garden. Automated processes, centralized control options, and intuitive operation make the system a versatile solution for private pool owners and professional pool builders.
The Benefits of Loxone Integration
- Centralized Control: Control pool, garden, and home systems via a single system.
- Notifications: Receive status and error messages directly through the app.
- On-Demand Control: Individually set and automate operating times and functions for pool systems.
- Easy Retrofit: Preconfigured components simplify integration into existing systems.
- Cloud-independent system architecture: Control is handled by the local Loxone system. Specific data processing depends on the respective system configuration.
Loxone in action
How the components work together
Loxone Aquastar Air
Loxone Miniserver
Loxone Smart Home App
Modbus Extension
DMX Extension
AO Extension
Loxone in action
How the components work together

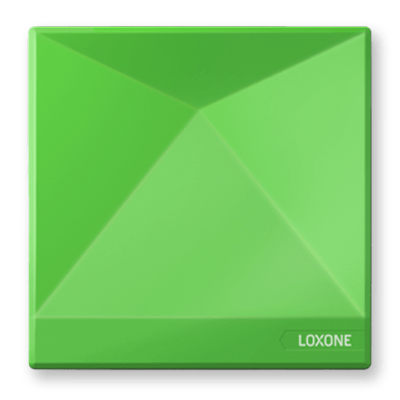

Loxone Miniserver
The Loxone Miniserver is the central control unit of the Loxone Smart Home System. It connects the integrated devices and functions and enables the automation and monitoring of various applications in the areas of security, comfort, and building control. In the iQnnect system, it handles the central processing of control commands and coordinates the connected pool components.

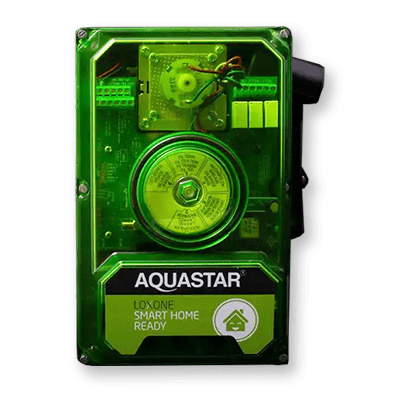

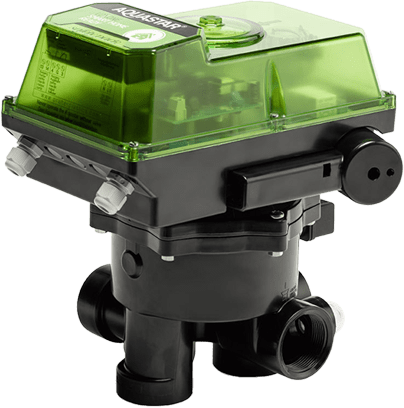

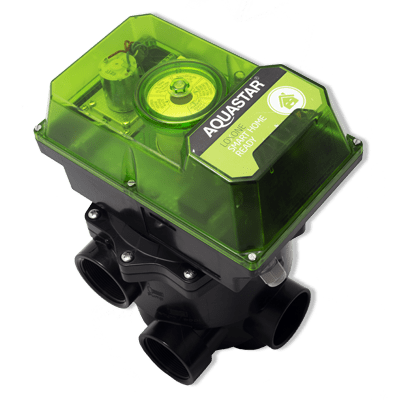

Loxone AQUASTAR® air
The smart, fully automatic 6-way backwash valve was developed for integration into the Loxone Smart Home System. When connected to the Loxone Miniserver, pool functions such as filter control, water treatment, and other control processes can be automated. The connection to the Miniserver is wireless via Loxone Air technology.

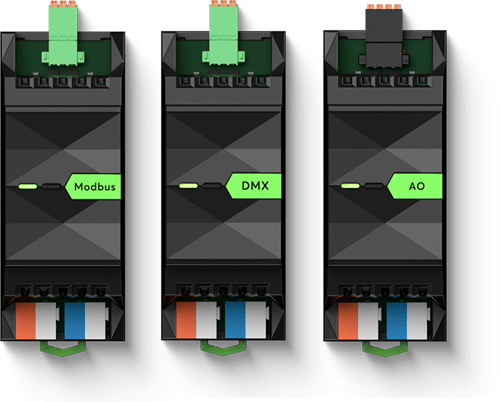

Loxone Extension
An extension unit for the Loxone Miniserver that provides additional digital and analog inputs and outputs. Extensions enable the integration of additional devices and functions. They can be retrofitted or replaced at any time to adapt the system to changing requirements. Up to 30 extensions can be connected per Miniserver.
iQnnect uses extensions to integrate devices such as heat pumps, filter pumps, underwater lighting, and water treatment systems. Basically, all devices that are compatible with a Loxone extension can be integrated into the iQnnect system. This allows the expansion of an iQnnect basic installation with additional components such as pool covers, video surveillance, counter-current systems, outdoor lighting, photovoltaic systems, and much more.
Other important Loxone terms
Loxone Link
A stable and expandable proprietary communication bus based on CAN bus technology. The Miniserver and Extensions communicate with each other via the Loxone Link. Up to 30 Extensions can be connected via this two-wire bus, ensuring reliable and fast data transmission.
Loxone Air
The wireless standard for communication within the Loxone Smart Home system. Loxone Air enables various devices such as buttons, sensors, and actuators to be connected wirelessly – a flexible alternative to wired Tree Bus technology.
Loxone Library
The Loxone Library is a comprehensive online database of templates and interfaces for integrating external devices and systems. All devices compatible with the Peraqua iQnnect system are listed there for integration into the Loxone system.
Loxone Config Software
The Loxone Config software is used to program and configure the Loxone Miniserver. Here, you can create custom control sequences, adjust settings, and tailor system functions to the requirements of your specific installation.

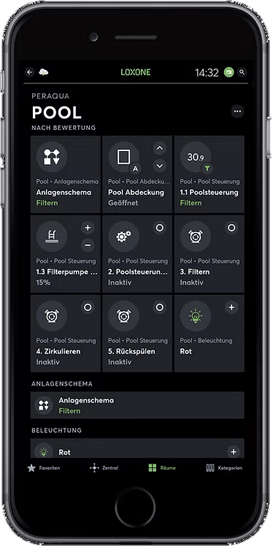

Loxone App
The Loxone app allows you to centrally control the integrated functions of the Loxone system. From pool monitoring to lighting, all available functions can be controlled via a single user interface. Using the System Schematics and the Automatic Designer, you can link different pool functions together and program custom sequences.
Read more...
iQnnect –
the smart connection between your pool and your home
Whether you want to operate your private pool more conveniently or, as a professional service provider, are looking for a flexible control solution: iQnnect combines modern pool technology with Loxone’s automation capabilities.
By integrating the AQUASTAR® air into the Loxone Smart Home System, connected pool functions can be centrally controlled and automated.
From the filter pump to water treatment and lighting, the integrated components can be conveniently operated via the Loxone Smart Home app or integrated into individually programmable routines.
The system architecture allows for flexible retrofitting and the integration of additional components and expansions.
Smart pool control, centralized operation, flexible expansion
With iQnnect, you can combine pool technology, automation, and smart home features into a single system.
Your benefits as a pool owner:
- You benefit from a centralized user interface for your connected pool systems.
- Operating times, control sequences, and available functions can be customized. Using the Loxone app, you can monitor your pool system and adjust the settings on the go.
- Automating recurring processes simplifies operation and supports structured control of pool operations.
Your benefits as a specialist contractor:
- For pool specialists, iQnnect offers a modular solution with preconfigured software functions.
- The components can be assembled, installed, and expanded according to the requirements of the respective pool project.
- Through integration into existing building automation systems, pool functions can be incorporated into overarching control concepts.
One Pool. One System. One Smart Home App.
Notes
- The iQnnect pool technology is suitable for private pools ranging in size from 5 × 3 × 1.5 m to 15 × 6 × 1.5 m. Depending on the pool size and individual requirements, different or additional products can be integrated.
- For iQnnect projects, we recommend collaboration between pool specialists and Loxone partners. We’d be happy to put you in touch with a partner near you.
- Loxone components are available through a Loxone partner or directly from Loxone.
- Loxone Miniserver and extensions are not included in the scope of delivery.
About Loxone
Loxone is an Austrian technology company that specializes in products and solutions for building automation.
The company was founded in 2009 by Thomas Moser and Martin Öller in Kollerschlag, Upper Austria. Since then, Loxone has established itself in the smart home and building automation sectors.
With intelligent automation solutions, Loxone aims to simplify everyday routines and give people more time for the important things in life.
Ready
to take the first step?
Whether you’re planning a private pool or, as a professional contractor, looking for a reliable partner for your next project - we’re happy to help.
Simply fill out the form and tell us about your project. Our customer service team will receive your inquiry and get back to you promptly.
Our goal: to understand your needs, plan together, and find the right solution for your pool project.
Get started now – we look forward to your inquiry!
