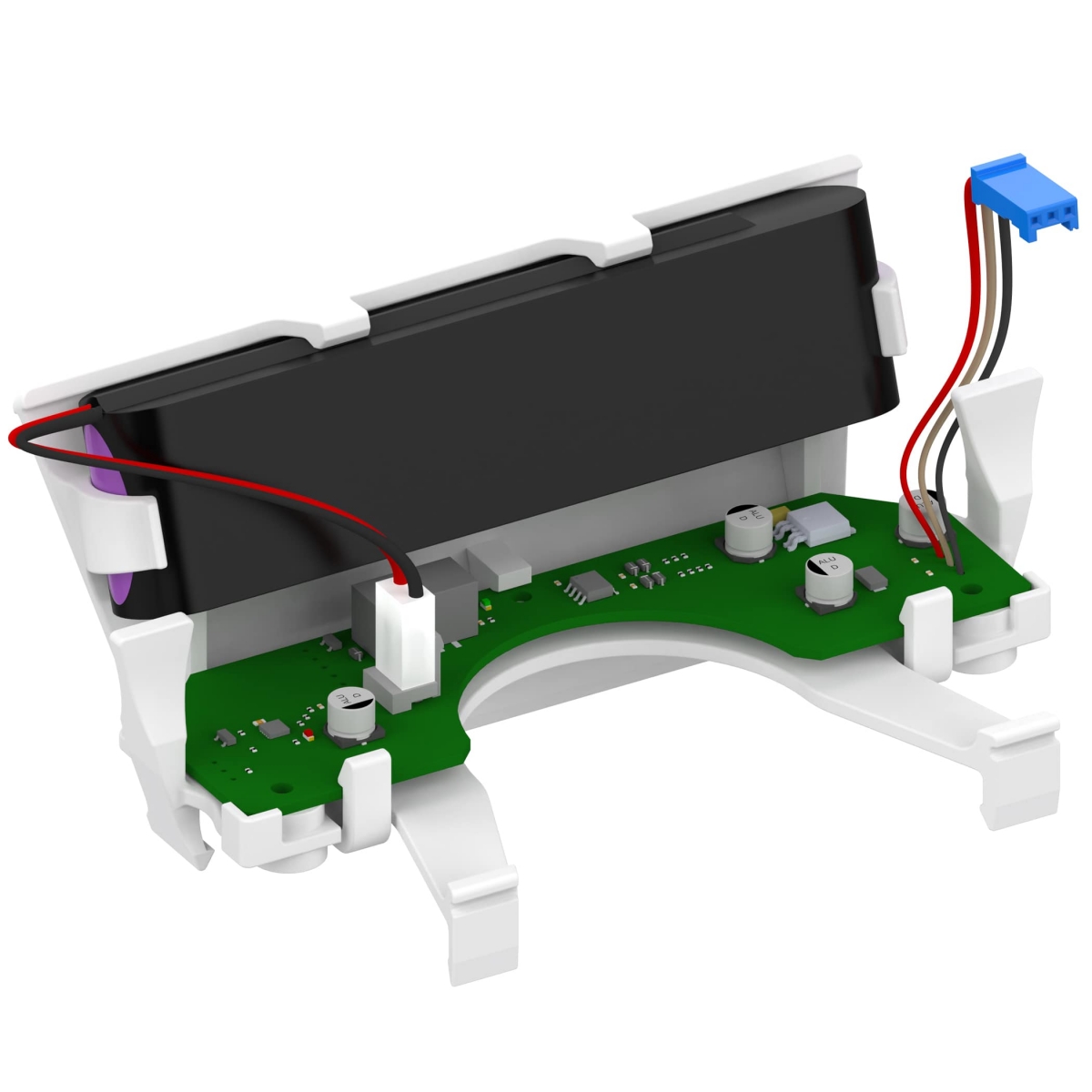

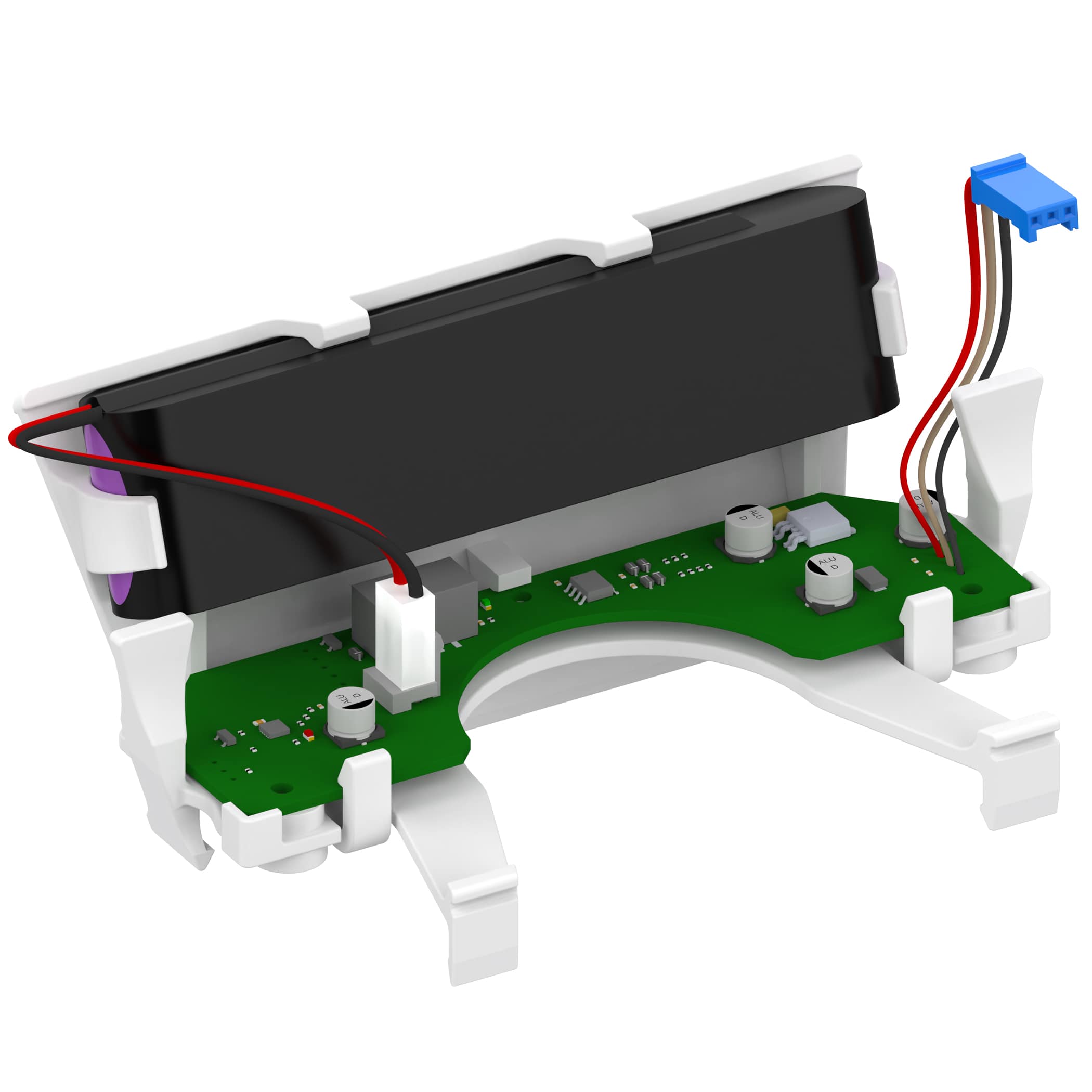

SafetyPack retrofit kit for Aquastar mp6 plc
- 90 second
battery emergency power supply
- Automatic return
to the “Filter” position
- Automatic
battery charging function
Description
The SafetyPack retrofit kit adds an integrated emergency power function to Aquastar Control backwash valves.
In the event of a power outage during the backwash process, the battery unit temporarily takes over the power supply to the backwash valve. If the external power supply is interrupted for more than 90 seconds, the valve automatically moves to the defined “Filter” position.
This helps reduce the risk of certain operational malfunctions, such as water loss, unintentional pool drainage, or the filter pump running dry.
Once the defined position is reached, the system shuts down to conserve battery power. As soon as the external power supply is available again, the SafetyPack is automatically reactivated.
Once power is restored, the backwash valve remains in the “Filter” position until a new control pulse is received.
The battery pack features an automatic charging function. A compatible replacement battery is available as an option.
The retrofit kit is available for Aquastar Control with pressure sensor, Aquastar Control with pressure sensor and valve and Aquastar mp6 plc.
Product details
| |
SafetyPack retrofit kit |
|---|
| Temperature range (°C) | 0 - 40 outside temperature |
| Power (W) | 30 |
| Input voltage (V) | 24 |
| Output voltage (V) | 8.5 |
| Protection class | IP65 (when installed) |
| Battery performance | 100+ power outages* |
| Unsafe positions | Backwash, rinse, drain, intermediate position |
* Actual performance and service life depend on operating conditions, state of charge, and operating environment.
Versions
| Product |
Art. Nr. |
|---|
| SafetyPack retrofit kit for Aquastar Control | 131439 |
| SafetyPack retrofit kit for Aquastar mp6 plc | 131534 |
Suitable for:
