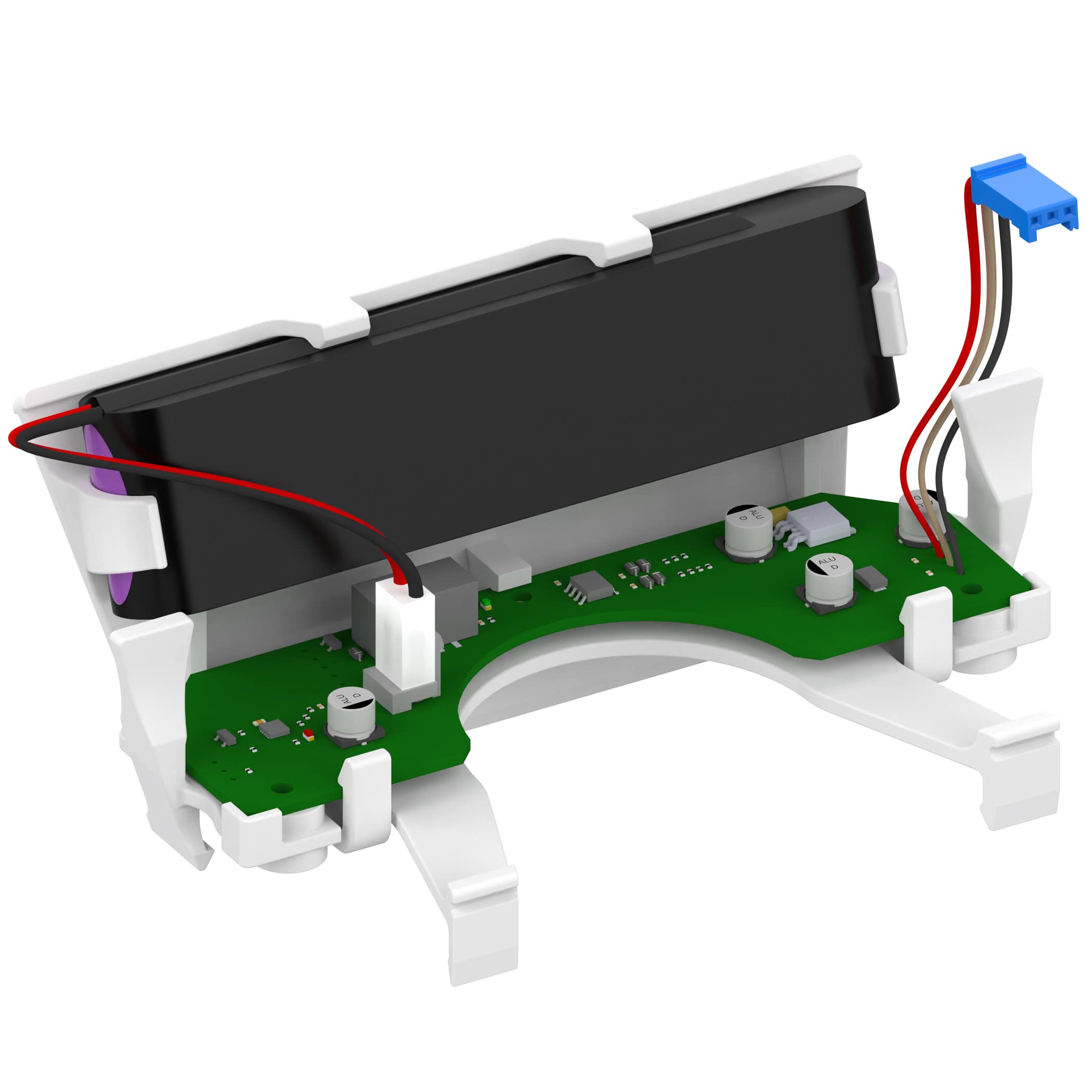

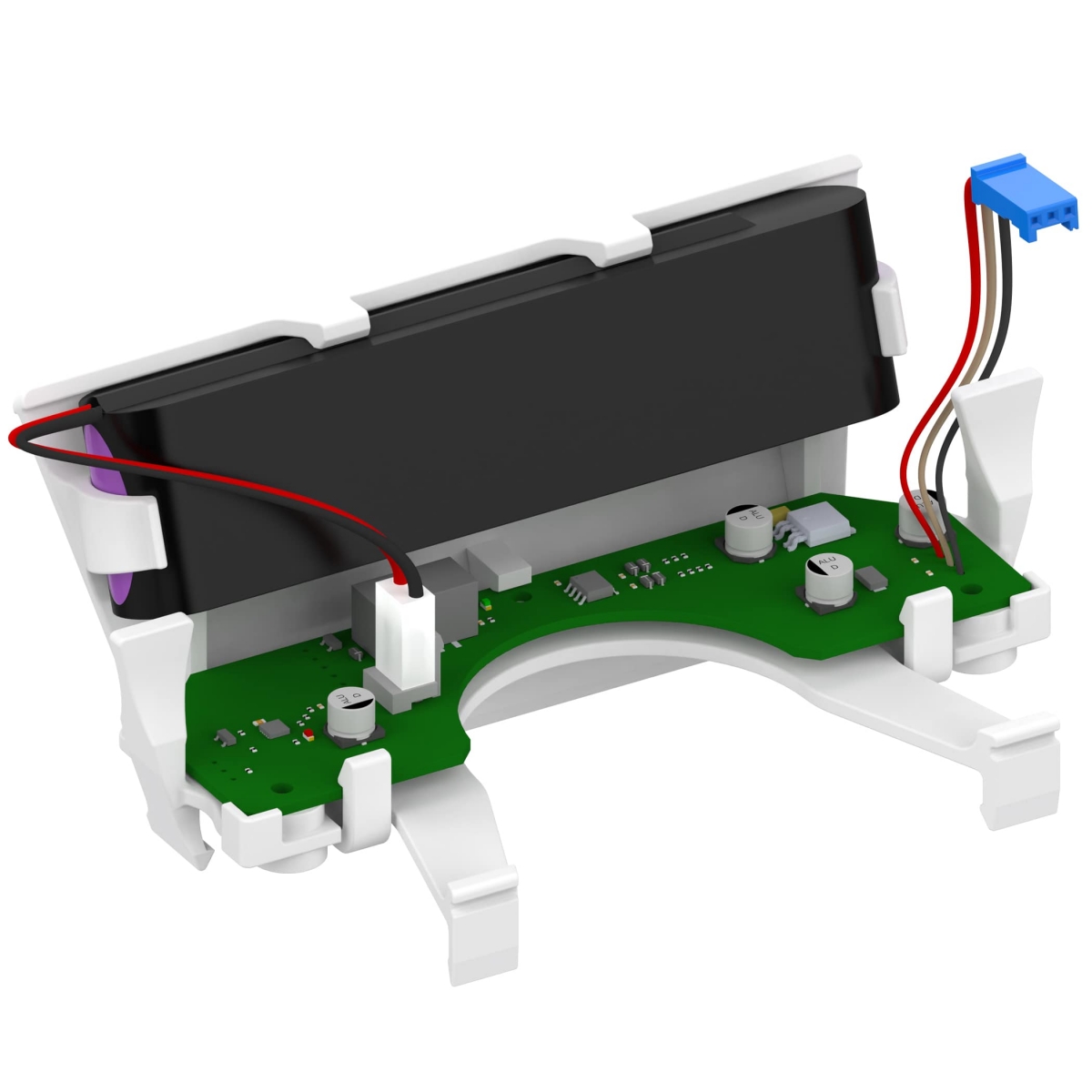

SafetyPack retrofit kit for Aquastar Control
- Effective protection
of the filter system - 90 second
battery emergency power supply - Safe position
is assumed automatically - Simple installation
into the Aquastar
Description
Increases operational safety in the event of a power failure during backwashing. This effectively and easily prevents water loss, emptying of the pool or dry running of the filter pump, for example.
During a power failure, the battery of the SafetyPack retrofit kit supplies the Aquastar Control backwash valve of the filter system with power. If the external power source fails for longer than 90 seconds, the backwash valve is automatically moved to the safe “filtering” position.
The SafetyPack is then switched off in such a way that no power is drawn from the battery and it is only put back into operation when the external power supply has returned.
When power is restored, the Aquastar Control remains in the safe position as long as no external impulse is given to change position.
When the power supply is working, the battery unit is maintenance-free and charges automatically. A suitable Spare battery pack (131535) is optionally available.
Conversion of the Aquastar Control backwash valve is very easy.
Available for Aquastar Control with pressure sensor and Aquastar Control with pressure sensor and valve.
Productdetails
| SafetyPack retrofit kit | |
|---|---|
| Temperature range (°C) | 0 - 40 outside temperature |
| Power (W) | 30 |
| Input voltage (V) | 24 |
| Output voltage (V) | 8.5 |
| Protection class | IP65 (when installed) |
| Guaranteed battery life | 100+ power failures 3 power failures without intermediate charging |
| Unsafe positions | Backwash, rinse, drain, intermediate position |
Versions
| Product | Art. Nr. |
|---|---|
| SafetyPack retrofit kit for Aquastar Control | 131439 |
| SafetyPack retrofit kit for Aquastar mp6 plc | 131534 |
