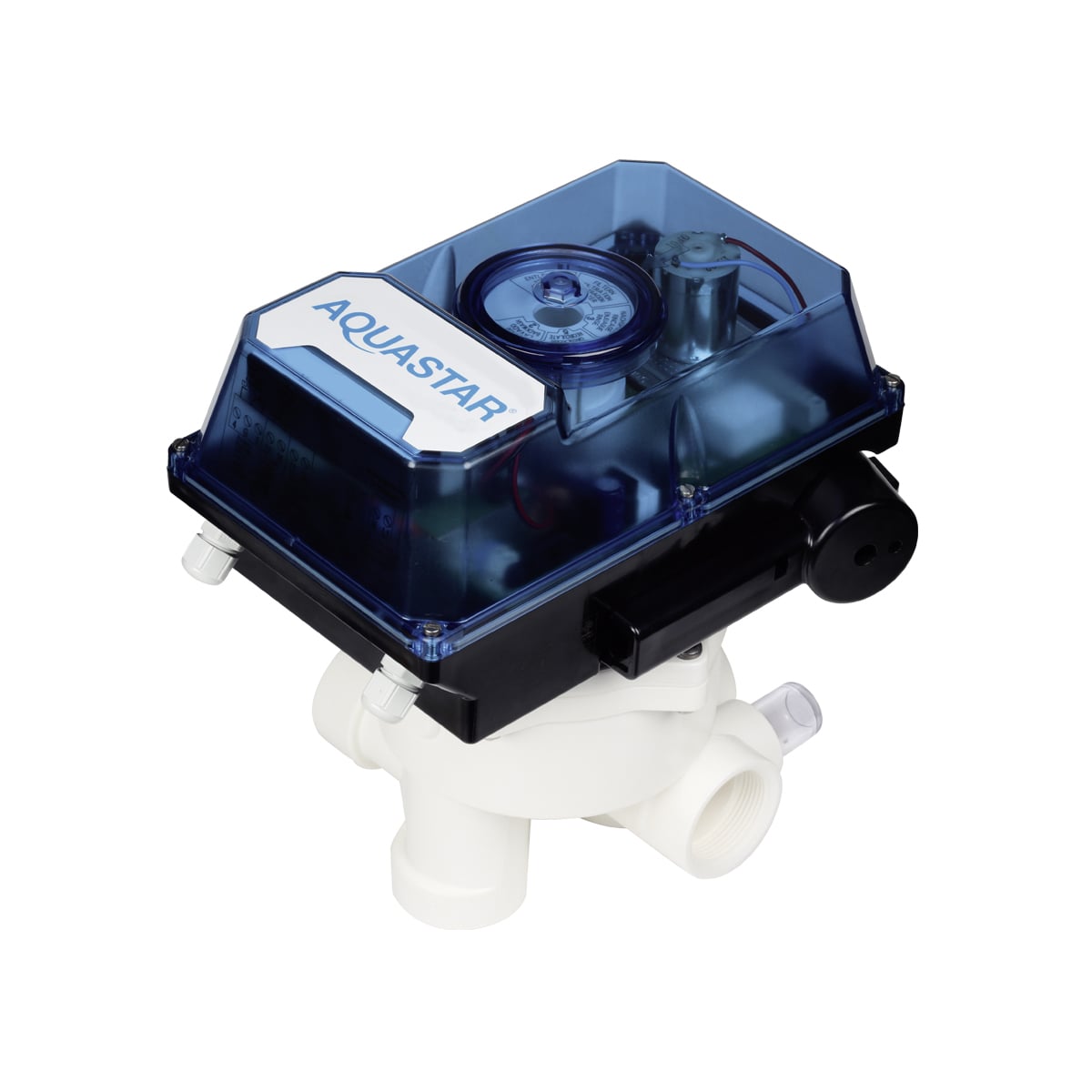

Backwash Valve AQUASTAR® mp6 plc

Backwash Valve AQUASTAR® mp6 plc

Selection:

  • AquaStar mp6 plc SM10 AO 1 ½" ABS white thread connection R 1 ½" BSP MOP 3,5 bar NBR tpe 24 AC/DC
  • AquaStar mp6 plc SM20 AO 2“ ABS white thread connection R 2“ BSP MOP 3,5 bar NBR tpe 24 AC/DC
  • AquaStar mp6 plc SM10 AO 1 ½" ABS white thread connection R 1 1 ½" BSP MOP 3,5 bar NBR tpe 100-240 VAC
  • AquaStar mp6 plc SM20 AO 2“ ABS white thread connection R 2“ BSP MOP 3,5 bar NBR tpe 100-240 VAC
  • AquaStar mp6 plc SM11 AO 1 ½" ASA-GF nature thread connection R 1 ½" BSP MOP 5 bar NBR tpe 24 AC/DC
  • AquaStar mp6 plc SM21 AO 2“ PPO-GF nature thread connection R 2“ BSP MOP 5 bar NBR tpe 24 AC/DC
  • AquaStar mp6 plc SM31 AO 1 ½" ASA-GF nature thread connection R 1 ½" BSP MOP 5 bar NBR tpe 100-240 VAC
  • AquaStar mp6 plc SM11 AO 1 1/2“ ASA-GF nature thread connection R 1 1/2“ BSP MOP 5 bar NBR tpe 100-240 VAC
Please select a variant to see the product information.
  • Description
  • Downloads

Description

The AquaStar® mp6 plc was developed for the automated control of filtration systems in conjunction with PLCs.

It is available with ABS backwash valves rated up to 3.5 bar or ASA-GF versions rated up to 5 bar and is suitable for filtration systems ranging in size from d500 to d1050.

Product details

  • Microcontroller-controlled linear-rotary actuator for PLC controls
  • Control of valve positions via DC signals from the controller
  • Integrated error and status messages
  • Functions for detecting specific system states and malfunctions
  • Relays with gold contacts for feedback of switching states
  • Wide-range operating voltage (100–240 VAC, 50–60 Hz / 150–300 VDC or 24 V AC/DC)
  • Available in 1½“, 2”, and 3" sizes
  • IP65 protection rating
  • UV-resistant valve and actuator unit
  • Additional “Winter” position
  • “Circulate” position for use with suitable saltwater chlorination systems
  • Potential-free terminals for controlling Praher EO510 electric valves
  • Direct pump connection
  • Can be retrofitted to compatible Praher Ocean® V6 side-mount and top-mount valves with a new sealing system
  • Visual position indicator on the actuator cover
  • TGM test certificate

Assembly Instruction - DE/EN (PDF)
Manual - FR (PDF)
Manual - DE/EN (PDF)

SafetyPack retrofit kit

SafetyPack Logo
product image SafetyPack retrofit kit for Aquastar backwash valves

SafetyPack - protection for the filter system

Additional Safety Feature for the Filter System

The SafetyPack adds an integrated emergency power function to automatic Aquastar backwash valves.

In the event of a power outage, the system facilitates an automatic return to the defined “Filter” position. This helps reduce the risk of certain operational malfunctions, such as water loss, unintentional pool drainage, or the filter pump running dry.

Features

  • Battery-backed emergency power supply for up to 90 seconds
  • Automatic return to the “Filter” position
  • Integration into compatible Aquastar systems
  • Self-charging battery unit

Available for the automatic backwash valves Aquastar Control and Aquastar mp6 plc.
