Praher Plastics 3-Way Ball Valve M1, PVCu, T-ball, solvent socket ends metric with union nut, EPDM O-rings, PTFE ball seat ring, grey

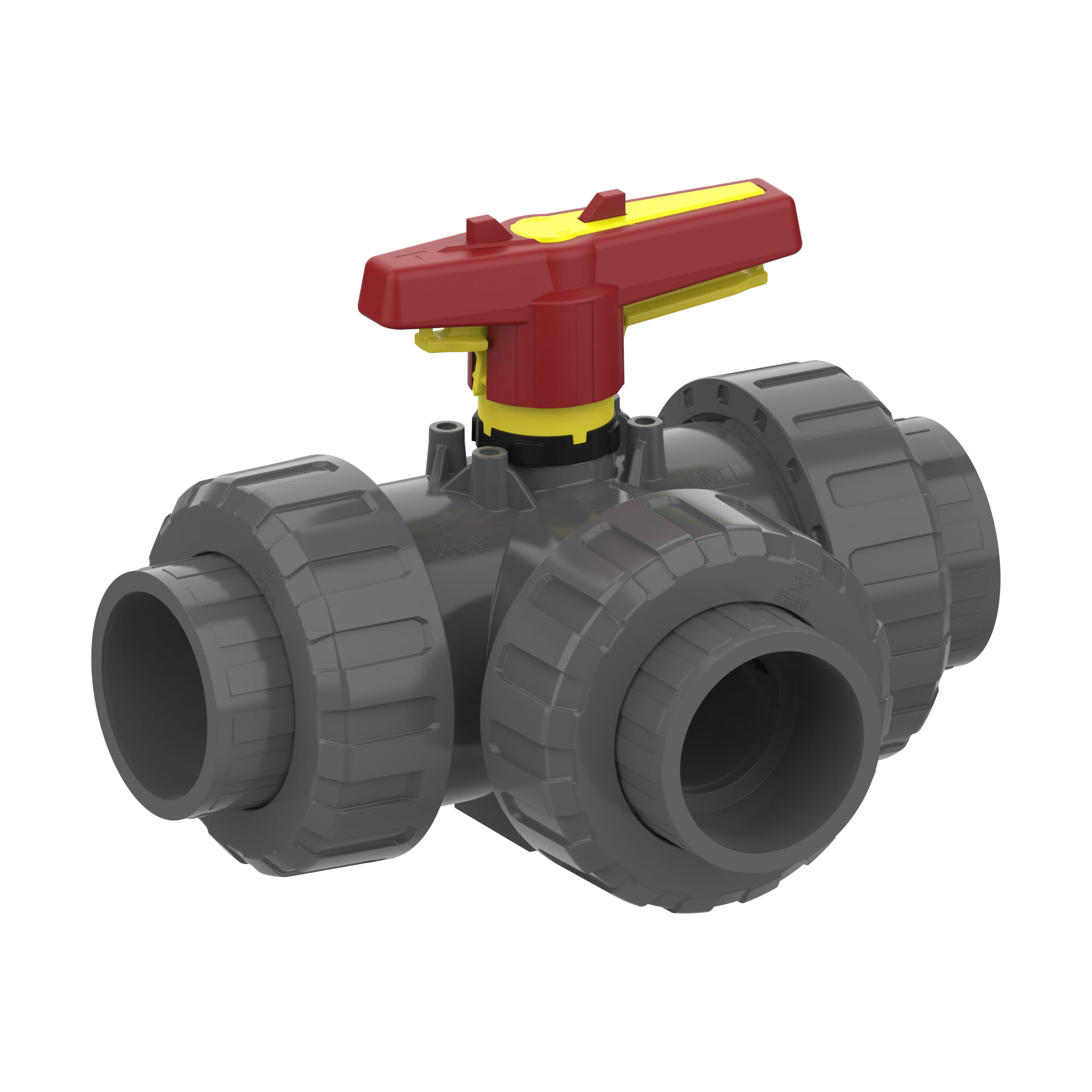

3-Way Ball Valve M1 with solvent socket ends metric

• Modular
  for easy expansion
• CE 0036
  certified
• Radial
  installation & removal
• Integrated domes
  for adapter set

Description

The M1 3-way ball valve with T-ball from Praher Plastics is a modular valve designed for applications in swimming pool, water treatment, and process engineering.

The valve is designed for switching and distribution tasks in filter circuits, solar bypasses, pool switching systems, and piping systems. The T-ball allows for precise control of flow paths without mixing of media.

Thanks to the modular platform and integrated domes, the ball valve can be equipped with suitable electric or pneumatic actuators. The true-union connections with union nuts allow the valve to be disassembled without disconnecting the piping.

Each valve is tested for leaks prior to shipment. The operating and service life values specified in the technical data refer to the operating conditions defined therein.

Product details

Features

• Modular design for accessory expansion
• Buttress thread for secure positioning of the union nut
• Safety handle with Praher Labeling System (PLS)
• Integrated domes for adapter sets
• Integrated bracket for fix point mounting
• Silicon-free design
• PTFE seat with O-ring
• Double sealed shaft
• Floating ball bearing
• Radial installation and removal
• Low-maintenance design

Technical data

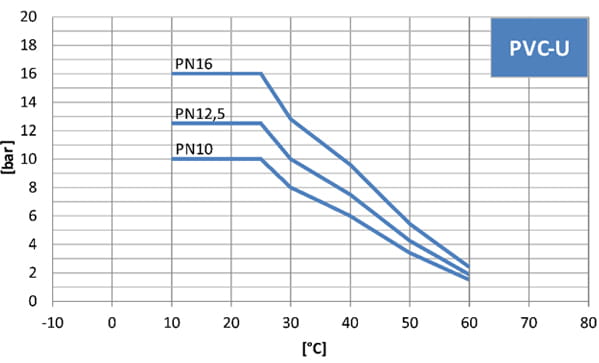

Pressure - temperature - diagram

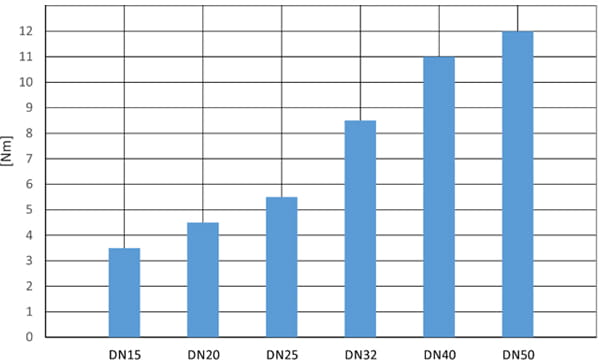

Torque at the shaft

Note: The values of the pressure-temperature-diagram are based on a service life of 25 years at static pressure load and apply to water or water-like media.

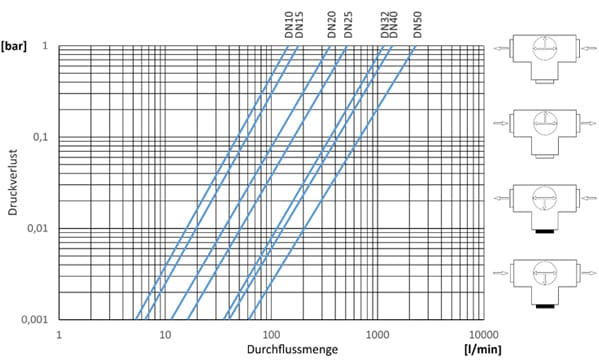

Flow rate - pressure loss 3-way ball valve / T-ball / -position

Swipe/scroll to see all columns

Pressure loss	DN10 d16	DN15 d20	DN20 d25	DN25 d32	DN32 d40	DN40 d50	DN50 d63
0.001 bar	5.3	6.5	11.4	16.3	35.6	40	61.3
1.0 bar	145	180	360	520	1150	1380	2300

Specification in l/min (PN16 pipe)

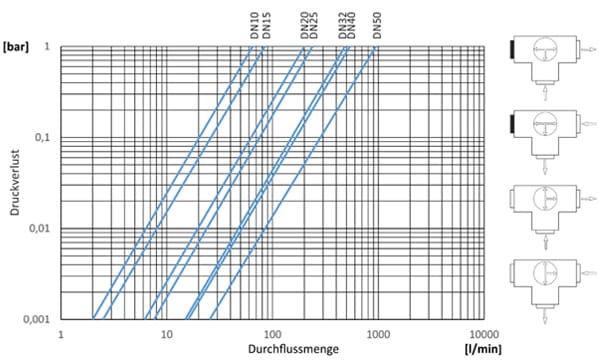

Flow rate - pressure loss 3-way ball valve / T-ball / L&T-position

Swipe/scroll to see all columns

Pressure loss	DN10 d16	DN15 d20	DN20 d25	DN25 d32	DN32 d40	DN40 d50	DN50 d63
0.001 bar	2	2.5	6.2	7.6	15	16	25.5
1.0 bar	65	85	200	240	485	540	950

Specification in l/min (PN16 pipe)

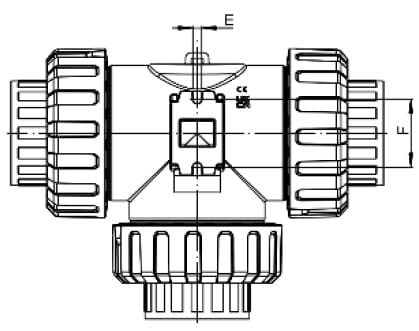

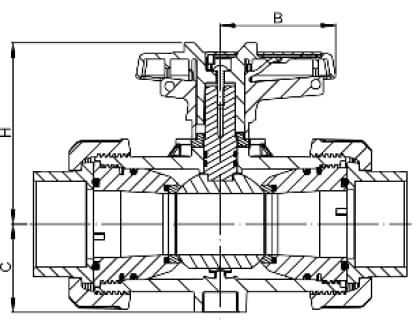

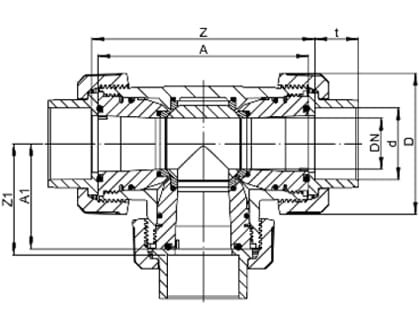

Dimensions

PVCu solvent socket ends metric / ASTM (Dimensions in mm)

Versions

The key features of the M1 in detail

Modular design

Prepared for automation

The design of the M1 3-way ball valve is optimized for easy installation of actuator components.

A dome and a mounting base are integrated into the valve body. This allows the valve to be prepared for retrofitting with electric or pneumatic actuators. Retrofitting is also possible while the valve is installed. A suitable adapter set is required for this.

A clamping element is available as an option for fixed-point mounting. For flange connections on flat surfaces, a spacer facilitates positioning and installation.

Optionally available with position feedback or a failsafe function.

Buttress thread

A buttress thread helps ensure a secure fit for the union nut and is designed for applications subject to vibration.

Left-hand thread on the pressure rings

The left-hand thread on the pressure rings reduces the risk of accidental rotation when installing the union nut and helps position the ball.

Safety handle with labeling plate

The safety handle ensures safe operation and maintenance. The correspondence between the handle and ball positions, integrated locking lugs, and a tool for removing the pressure rings make handling easier.

A form-fit connection to the shaft ensures proper installation. Custom label plates provide additional clarity.

T-ball for clear switching functions

Robust & chemical-resistant

Easy to service
