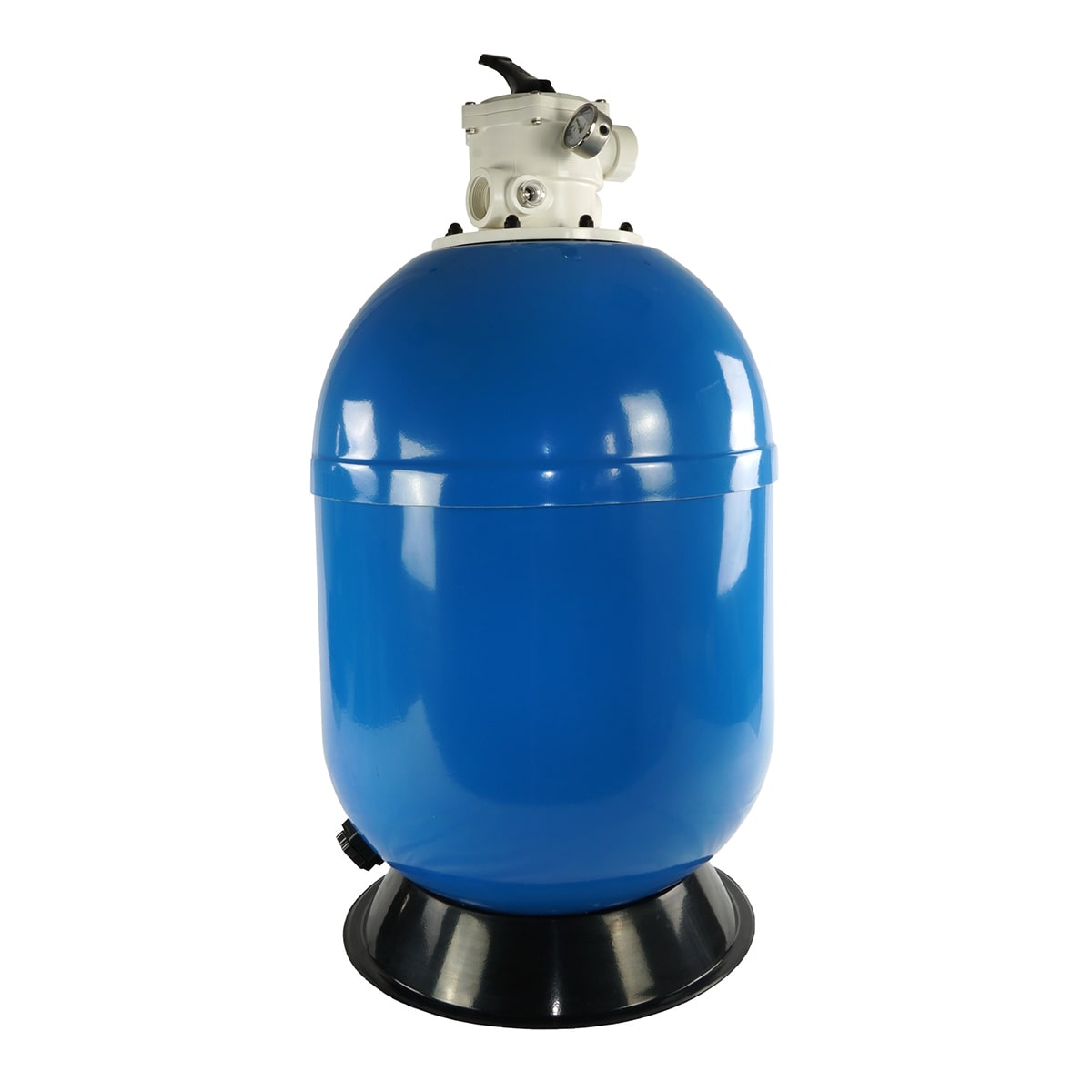

Polyester filter Vienna 2, top mount, including 6-way valve
- 2 bar
operating pressure - pressure gauge
included - drainage set
included - 6-way valve
included
Description
Top mount filter container made of reinforced, UV-resistant fibreglass. Suitable for private pools. The drainage set for easier emptying of the filter and the integrated ventilation to prevent air bubbles in the filter ensure easy maintenance.
2-year guarantee on filter container.
Product details
Features
- Including original Praher 6-way valve, 1 ½" or 2" (from d750)
- Filter for private pools
- Including pressure gauge
- Filter opening (d175 mm)
- Drainage set
- Integrated ventilation
- Max. operating pressure: 2 bar
- Reinforced fibreglass filter container
- UV-resistant
- Laminated
- Top mount
- Filter container in RAL5015 blue
- 2 year guarantee on filter housing tightness
Dimensions
Swipe/scroll to see all columns
d400 | d510 | d620 | d750 | d900 | |
---|---|---|---|---|---|
Connection | 1 ½" | 1 ½" | 1 ½" | 2" | 2" |
D outside (mm) | 400 | 510 | 620 | 750 | 900 |
Height A (mm) | 775 | 1000 | 1070 | 1280 | 1280 |
C (mm) | 675 | 790 | 860 | 1020 | 1020 |
Filtration area (m²) | 0.13 | 0.20 | 0.30 | 0.44 | 0.64 |
Flow rate (m³/h)* | 7 | 10 | 15 | 22 | 32 |
Lid D (mm) | 175 | 175 | 175 | 175 | 175 |
Art.Nr. | 7300506 | 7300507 | 7300508 | 7301811 | 7301812 |
* (v = 50 m/h)
Dimensions Vienna 2
Filling quantities
Swipe/scroll to see all columns
d400 | d510 | d620 | d750 | d900 | |
---|---|---|---|---|---|
Filter bed height (mm) | 375 | 475 | 525 | 580 | 580 |
Nature Works* (kg) | 60 | 100 | 140 | 200 | 315 |
Filter sand** (kg) | 70 | 100 | 150 | 225 | 350 |
* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm
FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®
Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.
For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
