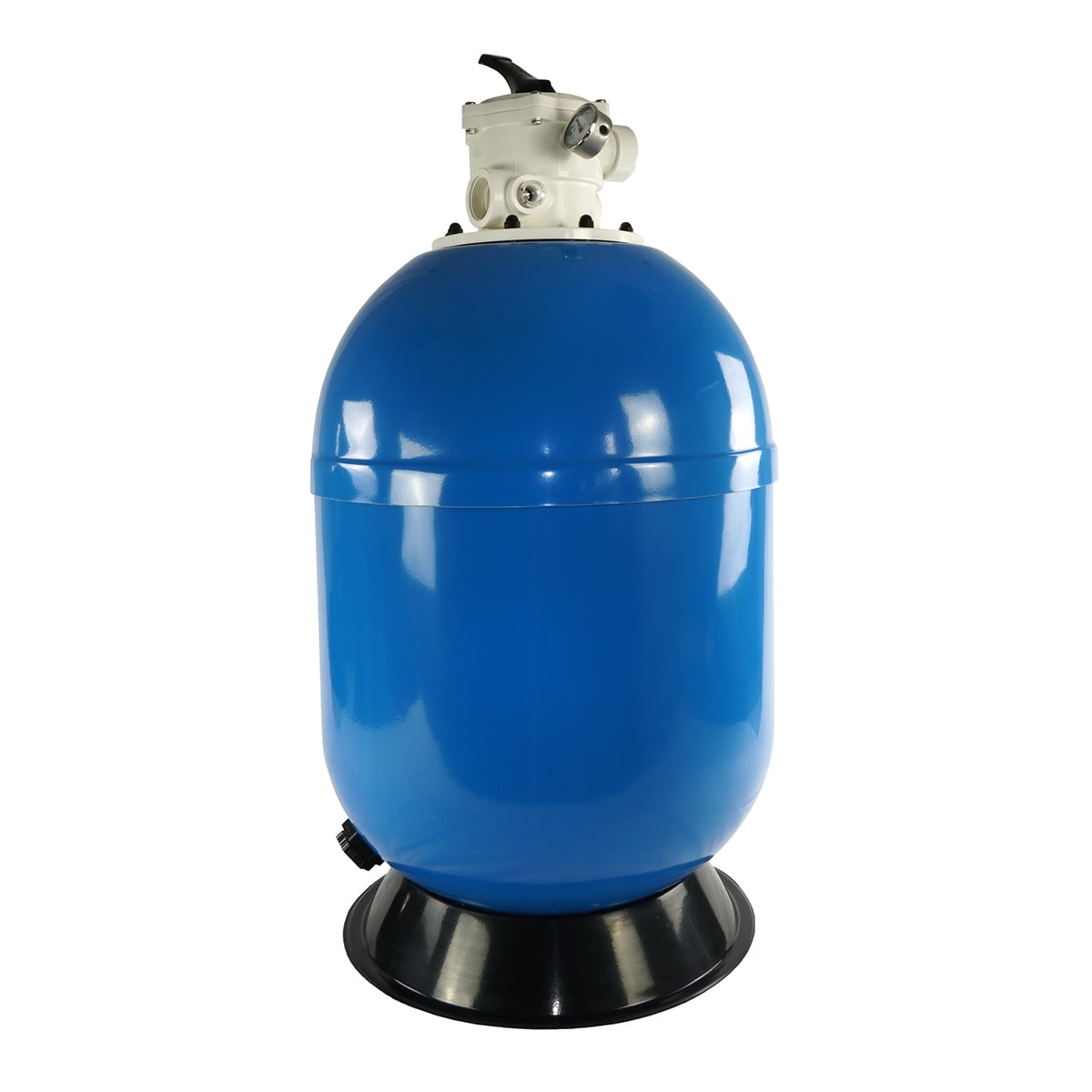

Polyester filter Vienna 2, top mount, including 6-way valve
- 2 bar
operating pressure - pressure gauge
included - drainage set
included - 6-way valve
included
Description
Top mount filter container made of reinforced, UV-resistant fibreglass. Suitable for private pools. The drainage set for easier emptying of the filter and the integrated ventilation to prevent air bubbles in the filter ensure easy maintenance.
2-year guarantee on filter container.
Product details
Eigenschaften
- Inklusive original Praher 6-Wege TM Ventil, 1 ½" bzw. 2" (ab d750)
- Filter für private Pools
- Inklusive Manometer
- Filteröffnung (d175 mm)
- Entleerungsset
- Integrierte Entlüftung
- Betriebsdruck max: 2 bar
- Verstärkter Fiberglas Filterkessel
- UV-beständig
- Laminiert
- Top Mount
- Filterbehälter in RAL5015 blau
- 2 Jahre Garantie auf Filtergehäusedichtheit
Abmessungen
Wischen/scrollen, um alle Spalten zu sehen
| d400 | d510 | d620 | d750 | d900 | |
|---|---|---|---|---|---|
| Anschluss | 1 ½" | 1 ½" | 1 ½" | 2" | 2" |
| D außen B (mm) | 400 | 510 | 620 | 750 | 900 |
| Höhe A (mm) | 775 | 1000 | 1070 | 1280 | 1280 |
| C (mm) | 675 | 790 | 860 | 1020 | 1020 |
| Filterfläche (m²) | 0,13 | 0,20 | 0,30 | 0,44 | 0,64 |
| Durchfluss (m³/h)* | 7 | 10 | 15 | 22 | 32 |
| Deckel D (mm) | 175 | 175 | 175 | 175 | 175 |
| Art.Nr. | 7300506 | 7300507 | 7300508 | 7301811 | 7301812 |
* (v = 50 m/h)
Abmessungen Vienna 2
Füllmengen
Wischen/scrollen, um alle Spalten zu sehen
| d400 | d510 | d620 | d750 | d900 | |
|---|---|---|---|---|---|
| Filterbetthöhe (mm) | 375 | 475 | 525 | 580 | 580 |
| Nature Works* (kg) | 42 | 85 | 128 | 191 | 297 |
| Filtersand** (kg) | 70 | 100 | 150 | 225 | 350 |
* Filterglas, Granulatgröße 0,6 - 1,2 mm | ** Granulatgröße 0,4 - 0,8 mm
FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®
Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.
For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
