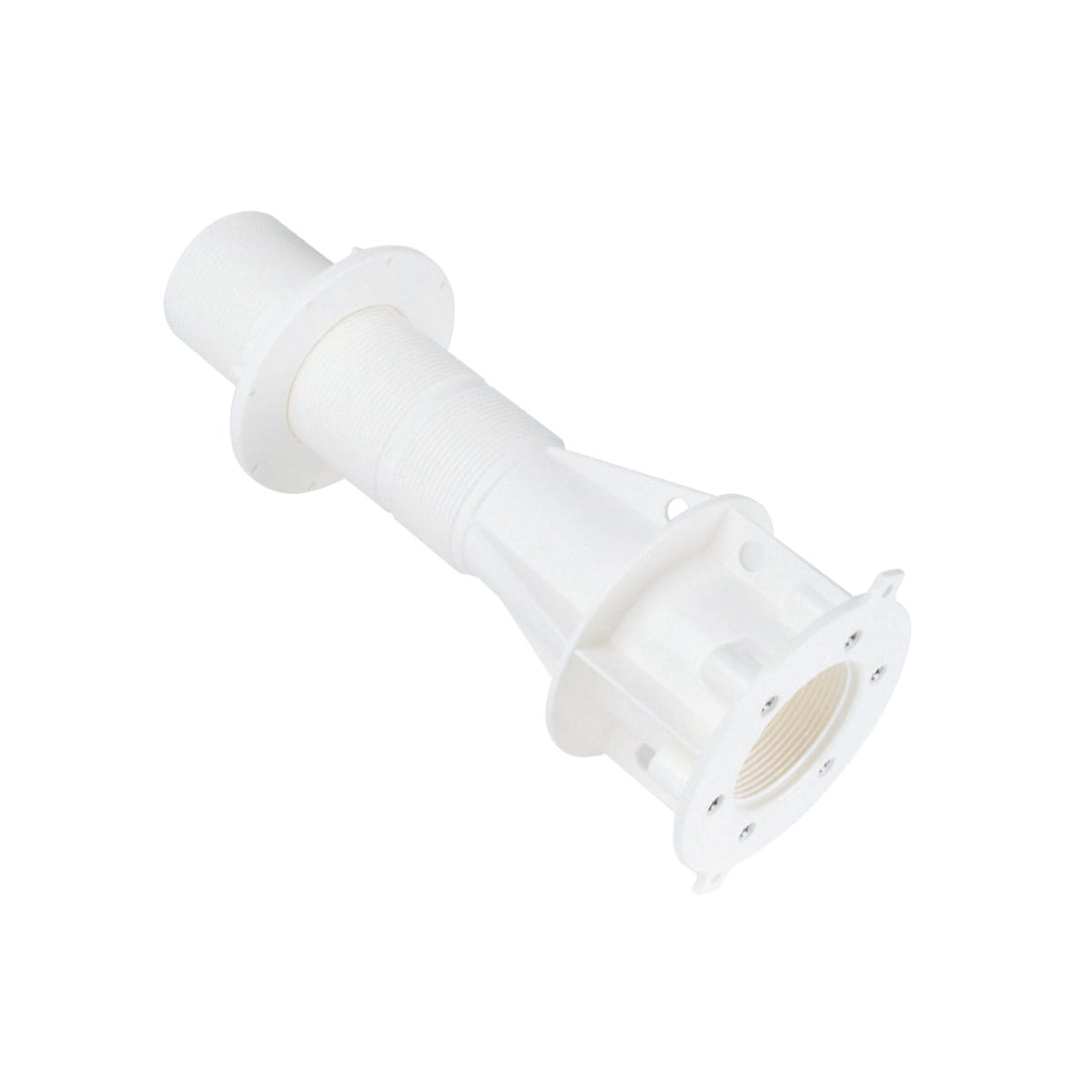

Ocean wall conduit M5 De Luxe
- M5 A4 (SS316)
stainless steel threaded inserts - DIN EN 16582
compliant - Extremely sturdy
thanks to solid construction - Complete set
incl. clamping nut for installation
Description
The Ocean M5 De Luxe wall conduit is a high-quality, robust wall conduit designed for Ocean M5 inlet nozzles, ensuring a watertight and mechanically stable connection between the pool wall and the piping. Integrated stainless steel inserts guarantee durable, corrosion-resistant, and reusable screw connections - ideal for maintenance and long-term use.
Thanks to its sturdy construction with fixing brackets and openings for reinforcing bars, the component can be securely installed in concrete, while various connection options (2" male and female threads and d50 solvent sleeve) offer maximum flexibility.
Suitable for liner, precast, concrete, and tiled pools.
Product details
| Ocean wall conduit M5 De Luxe | |
|---|---|
| Material: | ABS plastic |
| Connection: | 2" male and female threads, solvent socket d50 metric |
| Color: | White |
Features
- Integrated M5 A4 (SS316) stainless steel threaded inserts
- Perfectly matched to Ocean inlet nozzles M5 De Luxe
- 2 fixing brackets
- Openings for reinforcing bars
- Clamping nut for wall formwork
- Easy to maintain and can be removed multiple times
- High installation security in concrete
- Complete set ready for installation

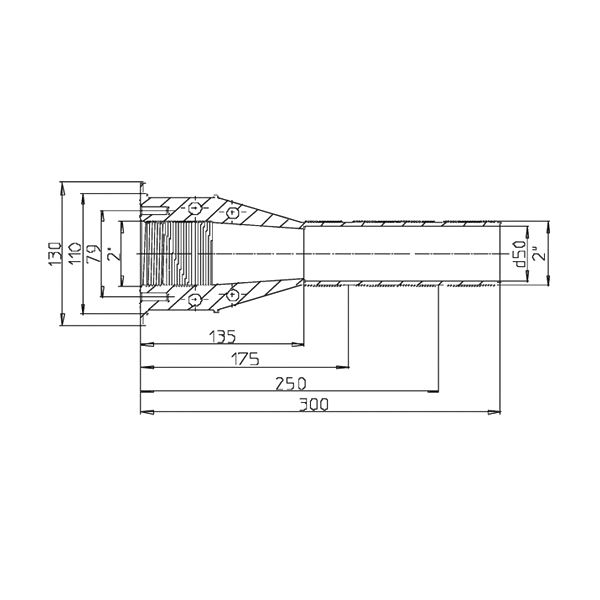

Dimensions
Dimensions in mm
The key advantage over the PT version
Connections that can be repeatedly connected and disconnected without loosening
The M5 version features integrated stainless steel inserts (A4/SS316), which ensure a permanently stable and corrosion-resistant screw connection. Unlike plastic threads, these connections can be loosened and retightened multiple times without wear or loss of function - ideal for maintenance, replacement, and retrofits.
Compared to the standard PT version with self-tapping screws in plastic, the M5 version offers significantly higher long-term stability and ease of maintenance. It prevents thread stripping, reduces maintenance requirements, and ensures greater safety during regular service work.
This makes the Ocean wall conduit M5 De Luxe the more sustainable and economical solution, particularly for high-end pool systems and applications requiring frequent maintenance.
Installation advice
- Install without applying tension (to prevent warping).
- Hand-tighten the screws until they are just seated (at least two threads). Then tighten them with a cordless screwdriver (max. 500 rpm).
- Avoid tightening at an angle (risk of damage).
- Maximum torque: 2 Nm (do not exceed!)
