Ocean wall conduit PT De Luxe
- For PT
self-tapping screws - DIN EN 16582
compliant - Extremely sturdy
thanks to solid construction - Complete set
incl. clamping nut for installation
Description

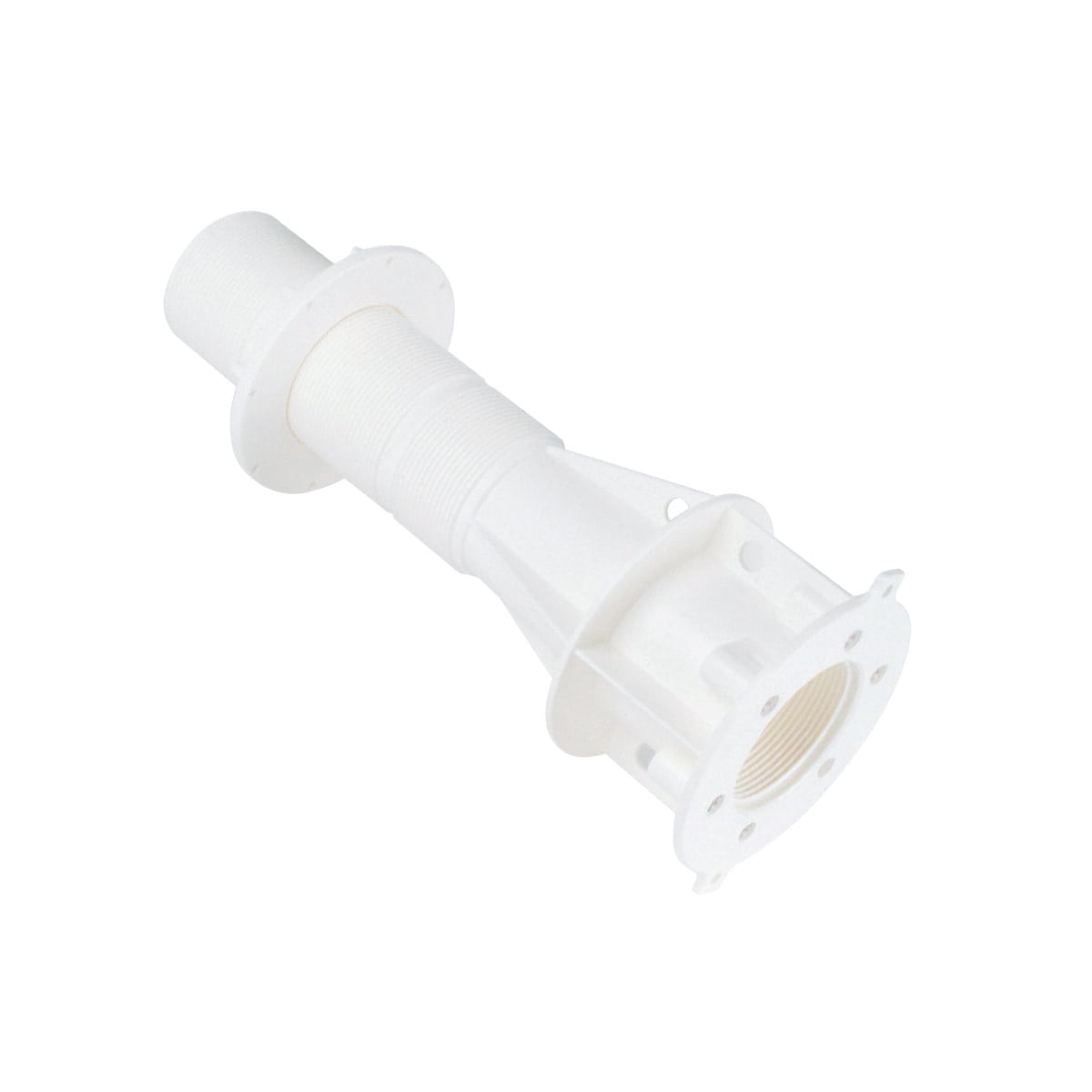

The Ocean PT De Luxe wall conduit is a wall conduit for Ocean PT-series components. It connects the pool wall to the piping and is designed for use with self-tapping PT screws.
Its design allows for direct screw fastening into thermoplastic materials and is particularly suitable for liner pools.
Thanks to integrated mounting tabs and openings for rebar, the wall conduit can be precisely positioned during installation. The connection options - including a 2“ female thread, a 2” male thread, and a d50 solvent sleeve - offer versatile application possibilities for connecting to the pool’s plumbing system.
The design facilitates efficient installation and ensures a stable connection between the in-wall fitting and the piping.
Suitable for liner, prefabricated, concrete, and tiled pools.
Product details
| Ocean wall conduit PT De Luxe | |
|---|---|
| Material: | ABS plastic |
| Connection: | 2“ female thread, 2” male thread, adhesive socket d50 metric |
| Color: | White |
Features
- Suitable for self-tapping PT screws
- Designed for Ocean PT De Luxe inlet nozzles
- 2 mounting tabs
- Openings for rebar
- Clamping nut for wall formwork
- Design features to facilitate installation in concrete
- Complete installation kit

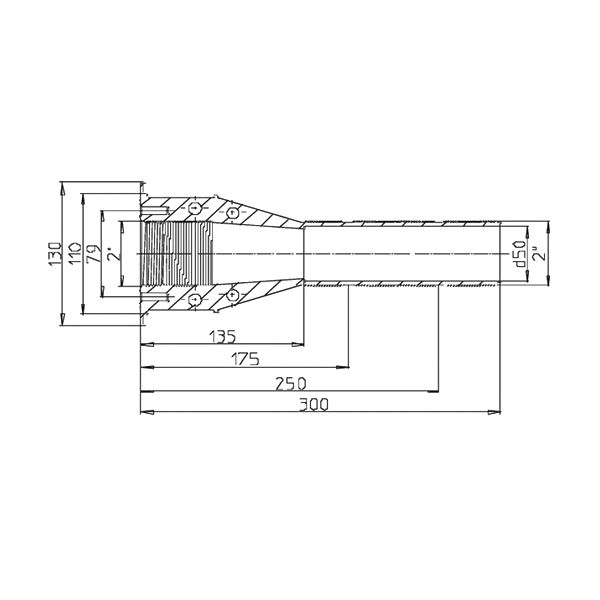

Dimensions
Dimensions in mm
Recommendation
For applications requiring regular maintenance or servicing, the Ocean wall conduit M5 De Luxe may be a suitable alternative.
The integrated stainless steel threaded inserts allow for repeatedly detachable screw connections and support applications in which components are disassembled and reassembled multiple times.
Installation advice
- Install without applying tension (to prevent warping).
- Hand-tighten the screws until they are just seated (at least two threads). Then tighten them with a cordless screwdriver (max. 500 rpm).
- Avoid tightening at an angle (risk of damage).
- Maximum torque: 2 Nm (do not exceed!)
