Ocean inlet nozzle M5 De Luxe DIN, ABS, integrated M5 A4 stainless steel threaded inserts, DIN EN16582 multiflow ball, installation kit for liner pools, white

Ocean inlet nozzle M5 De Luxe DIN

• M5 A4 (SS316)
  stainless steel threaded inserts
• DIN EN 16582
  multiflow ball
• 13/17/21 mm
  opening diameter (break-out)
• Freely
  adjustable ball

Description

The Ocean inlet nozzle M5 De Luxe DIN is a premium solution compliant with DIN EN 16582 for precise and efficient water flow in liner pools. Designed for professional use, it combines maximum hydraulic flexibility with ease of installation and maintenance.

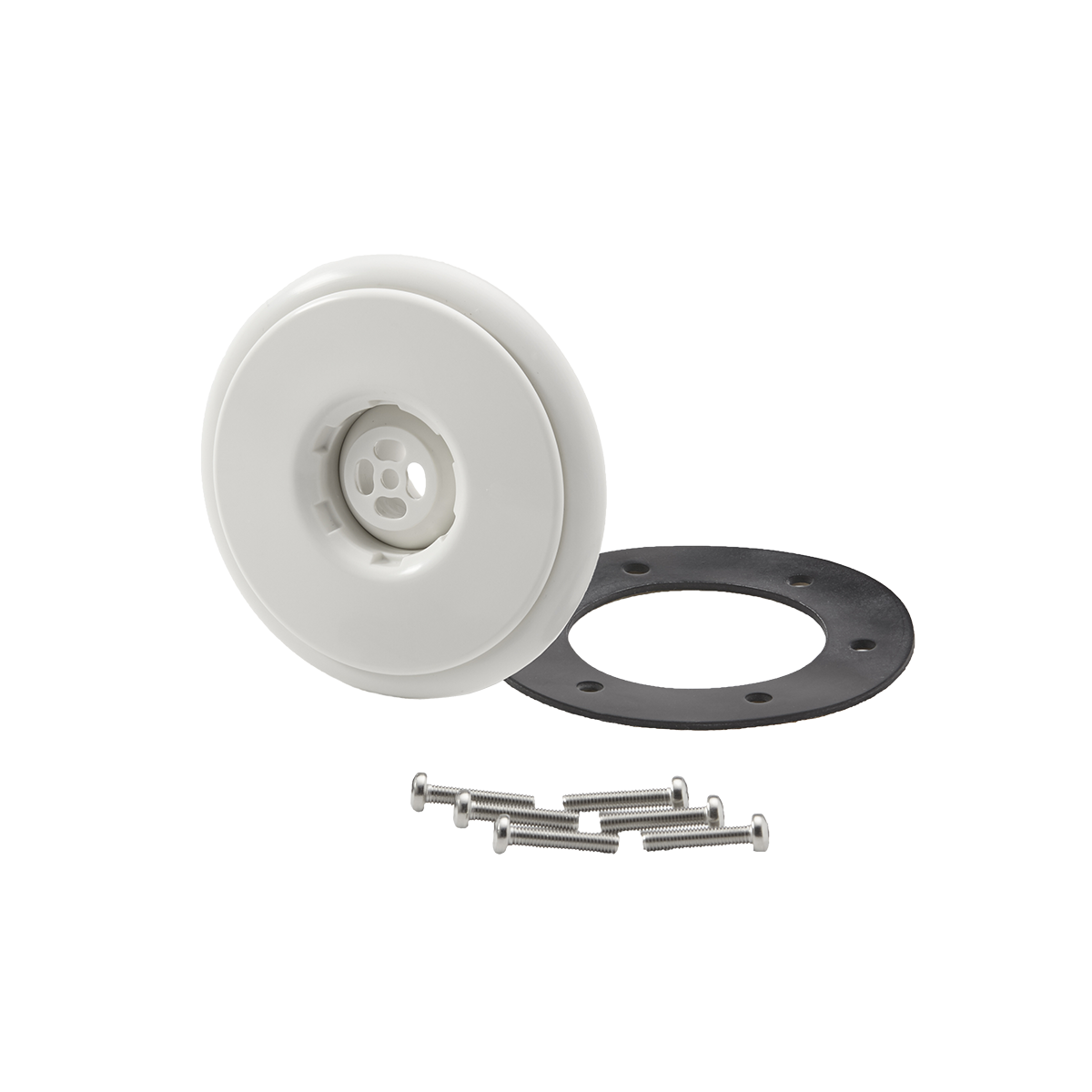

Set includes an inlet nozzle, gasket, and M5 screw set.

Suitable for liner pools.

Product details

Features

• Perfectly balanced water circulation: Thanks to the universal ball with 3 opening sizes (13 / 17 / 21 mm), you can precisely adjust the flow rate to any installation situation - for optimal circulation throughout the entire pool.
• Precise flow control: The fully adjustable ball allows for individual adjustment of the outlet direction and angle. This ensures even water flow and supports efficient dirt removal to the skimmer.
• Standard-compliant safety: The design in accordance with DIN EN 16582 ensures the highest safety standards in pool operation - particularly with regard to injury and entrapment protection while maintaining a defined flow rate.
• Quick, secure installation: The robust M5 stainless steel screw connection ensures easy installation and permanently tight connections.
• Service-friendly design: The ball and face plate can be loosened, cleaned, or replaced in just a few simple steps. This reduces maintenance time and facilitates subsequent hydraulic adjustments during operation.
• Durable & resilient: High-quality ABS plastic and corrosion-resistant stainless steel components guarantee a long service life - even with intensive use.

Installation diagram for liner pools

Installation diagram for the Ocean inlet nozzle M5 De Luxe in a liner pool

1. Face plate
2. Ocean multiflow ball
3. Torx-screws M5 (6 pieces)
4. Nozzle
5. Gasket
6. Wall conduit (170629) - must be ordered separately

Dimensions

Dimensions in mm

Versions

The key advantage over the PT version

Connections that can be repeatedly connected and disconnected without loosening

The M5 version features integrated stainless steel inserts (A4/SS316), which ensure a permanently stable and corrosion-resistant screw connection. Unlike plastic threads, these connections can be loosened and retightened multiple times without wear or loss of function - ideal for maintenance, replacement, and retrofits.

Compared to the standard PT version with self-tapping screws in plastic, the M5 version offers significantly higher long-term stability and ease of maintenance. It prevents thread stripping, reduces maintenance requirements, and ensures greater safety during regular service work.

This makes the Ocean components M5 De Luxe the more sustainable and economical solution, particularly for high-end pool systems and applications requiring frequent maintenance.

Note

For installation, you will need an Ocean wall conduit M5 De Luxe (170629).
