Ocean inlet nozzle PT De Luxe DIN, ABS, for self-tapping PT screws, DIN EN16582 multiflow ball, installation kit for liner pools, white

Ocean inlet nozzle PT De Luxe DIN

• For PT
  self-tapping screws
• DIN EN 16582
  compliant ball
• 13/17/21 mm
  opening diameter (break-out)
• Infinitely
  adjustable ball

Description

The Ocean inlet nozzle PT De Luxe DIN is an inlet nozzle for liner pools in accordance with DIN EN 16582.

Thanks to the universal ball with three selectable opening diameters and the infinitely variable adjustment of the outlet direction, the water flow can be adapted to different pool designs and installation situations.

Set includes an inlet nozzle, gasket, and PT screw set.

Suitable for liner pools.

Product details

Features

• Adjustable Water Flow: The universal ball, featuring three opening diameters, allows the flow rate to be adjusted to suit various installation scenarios.
• Adjustable Flow Direction: The ball can be adjusted continuously, allowing the outlet direction and outlet angle to be set individually.
• Safety in accordance with DIN EN 16582: The ball meets the requirements of DIN EN 16582 for pool installation components.
• Installation: The PT screw connection is designed for installation in conjunction with the intended components.
• Maintenance: The ball and face plate can be loosened, cleaned, or replaced in just a few simple steps.

Installation diagram for liner pools

Installation diagram for the Ocean inlet nozzle PT De Luxe in a liner pool

1. Face plate
2. Ocean multiflow ball
3. Torx-screws PT (6 pieces)
4. Nozzle
5. Gasket
6. Wall conduit (170879) - must be ordered separately

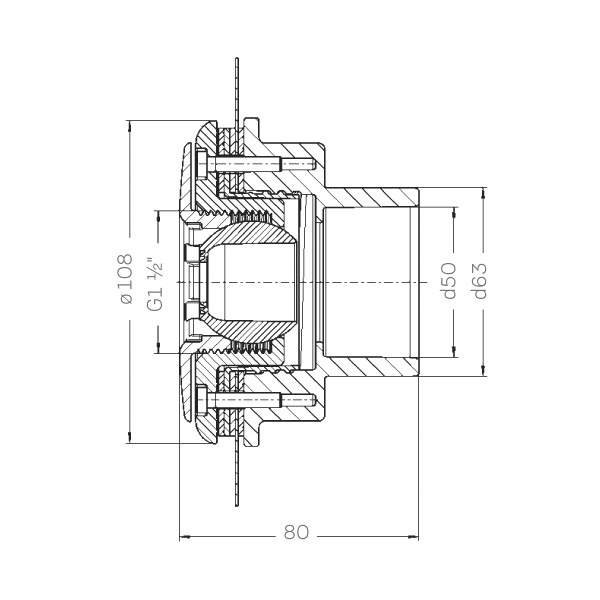

Dimensions

Dimensions in mm

Versions

Notes

• For installation, you will need an Ocean wall conduit PT De Luxe (170879).
• For applications requiring regular maintenance, we recommend using the Ocean wall conduit M5 De Luxe (170629). This model uses stainless steel threaded inserts for screw connections that can be repeatedly loosened and tightened.
