Ocean Brick pool system EPS30
- Ocean® Brick
modular system
- Pool tech package
including filter and pump
- Simple assembly
thanks to coordinated set parts
- Made in AT/EU
Manufactured in Europe
Description
The Ocean Brick pool system is a well-designed, all-in-one system for building rectangular private pools based on the Ocean Brick formwork brick construction system. It combines a heat-insulating EPS pool structure, a custom-fit liner, and specially matched pool technology into a single package.
This construction method enables a stable, energy-efficient, and easy-to-install solution with reduced concrete usage and high durability.
The system is available in standard sizes, is flexibly customizable, and stands for trusted quality "Made in Austria."
The package includes an Ocean ABS PT DE Luxe installation kit and a VISION Spectra lighting kit.
Product details
Highlights

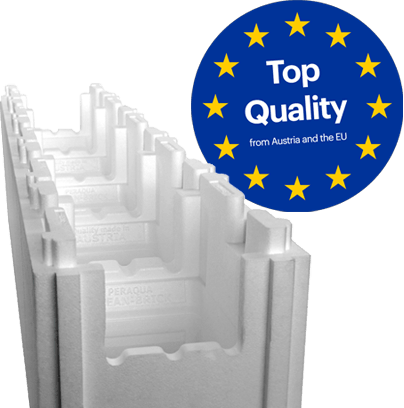

Ocean Brick formwork brick EPS 30
Made of expanded polystyrene (EPS), with high stability thanks to a tongue-and-groove system featuring extra-tall and wide connecting ribs and reinforced interior sections.
More infos
Polyester filter Vienna 2
Laminated side mount polyester filter with reinforced fiberglass filter container. Large, transparent flanged lid. Includes a bleed valve and pressure gauge.
More infos
VISION Spectra 10 RGB
Energy-efficient LED underwater spotlight, NoAir™ housing, 11 color programs, very wide beam angle, ultra-flat mounting
Features
Swipe/scroll to see all columns
| |
5 x 3 x 1.5 m |
6 x 3 x 1.5 m |
7 x 3.5 x 1.5 m |
8 x 4 x 1.5 m |
9 x 4 x 1.5 m |
|---|
| Brick EPS 30 (pcs.) | 68 | 76 | 88 | 100 | 108 |
| Insert EPS 30 (pcs.) | 40 | 40 | 40 | 40 | 40 |
| Polyester filter Vienna 2 | d400 | d400 | d510 | d620 | d620 |
| Ocean pool pump Series O | O50 | O50 | O50 | O75 | O75 |
| Liner sack, adria blue (pcs.) | 1 | 1 | 1 | 1 | 1 |
| Ladder 4 steps (pcs.) | 1 | 1 | 1 | 1 | 1 |
| Fleece S-Felt T-300 (m²) | 39 | 45 | 56 | 68 | 75 |
| Ocean PVC profile rail (pcs.) | 8 | 9 | 11 | 12 | 13 |
| Ocean PVC corner profile (pcs.) | 4 | 4 | 4 | 4 | 4 |
| Hammer rivets (pcs.) | 250 | 250 | 250 | 250 | 250 |
| Nature Works glass filter media (20 kg sack) | 3 | 3 | 4 | 4 | 4 |
| Art.Nr. |
7302026 |
7302027 |
74974 |
74975 |
74976 |
Ocean ABS PT DE Luxe installation kit
Set includes:
Ocean skimmer PT De Luxe, white (1 pcs.)
Ocean wall conduit PT De Luxe, white (4 pcs.)
Ocean inlet nozzle PT De Luxe DIN, white (4 pcs.)
Ocean main drain PT, white (1 pcs.)
VISION Spectra lighting kit
Set includes:
VISION LED underwater pool light Spectra 10 RGB (2 pcs.)
VISION cover, white (2 pcs.)
VISION wall conduit long (2 pcs.)
Control unit for VISION Spectra, with transformer, incl. 1 hand-held transmitter (1 pcs.)
Versions
| Product |
Art. Nr. |
|---|
| Ocean Brick pool system EPS30, 5 x 3 x 1.5 m | 7302026 |
| Ocean Brick pool system EPS30, 6 x 3 x 1.5 m | 7302027 |
| Ocean Brick pool system EPS30, 7 x 3.5 x 1.5 m | 74974 |
| Ocean Brick pool system EPS30, 8 x 4 x 1.5 m | 74975 |
| Ocean Brick pool system EPS30, 9 x 4 x 1.5 m | 74976 |
Note
The PVC piping material for the entire pool system, as well as the associated built-in components, must be ordered separately.
