Ocean® System Brick 300
- 1250 mm length
divisible in 250 mm sections - tongue-and-groove
for high stability - 82 mm
reinforced inner bar - 0.29
U-value
Description
Extra high and wide connecting bars
82 mm reinforced inner bar with stress-optimized transitions to the side walls
Integrated notch or markings, divisible in 250 mm sections
Shaped inner contour increases stability during filling
54 l concrete volume

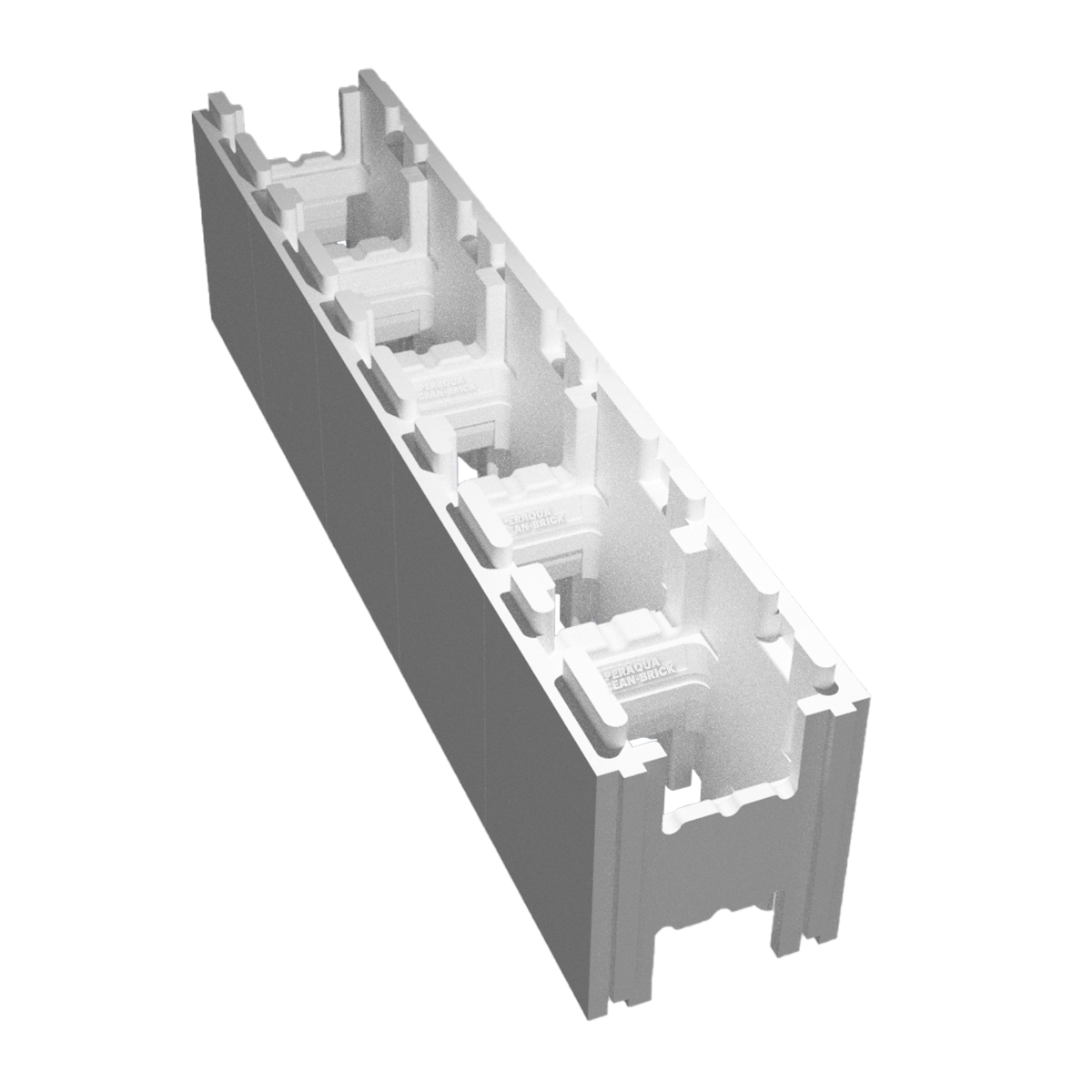

The Ocean® System Brick formwork block is the central building block of the Ocean® Brick pool system. Made from expanded polystyrene (EPS), the blocks can be assembled quickly and precisely to form stable pool walls. They form the ideal basis for modern, energy-efficient, and durable pools and impress with their intelligent details and ease of use.
Product details
- High stability thanks to tongue-and-groove system with extra high and wide connecting bars and reinforced inner areas.
- Reinforced inner bar (82 mm) with stress-optimized transitions to the side walls and integrated slopes helps to ensure optimum concrete distribution and reduces the risk of breakage during filling.
- Three integrated guide gutters give the reinforcement iron sufficient support.
- The unique shape of the inner contour reduces the volume of concrete required.
- Thanks to the EPS material used, the formwork blocks offer significantly better thermal insulation (U-value from 0.29) than traditional concrete walls. The optimal insulation reduces the pool's heating time and saves energy.
- Easy to cut and process. Standard length 1250 mm, can be divided into 250 mm sections, integrated notches/markings facilitate division.
- Suitable for private and hotel pools as well as public swimming facilities.
- Available in hardness grades EPS25, EPS30, and EPS MAX.
- Developed and manufactured in Austria.
Dimensions

Ocean® Brick | |
---|---|
Length (mm) | 1250 |
Width (mm) | 250 |
Height (mm) | 300 |
Versions
Product | Art. Nr. |
---|---|
Ocean® System Brick EPS 25 | 7301114 |
Ocean® System Brick EPS 30 | 7301115 |
Ocean® System Brick EPS MAX | 7301117 |
Delivery
Delivery is made on disposable pallets. The quantity of bricks per pallet depends on the order quantity:
- Single pallet: 32 pieces.
- Total truckload: 720 units (= 20 pallets with 36 units each)
Quantity table
Pool size m |
Required pieces* |
ISO elements m² |
EPS plates** m² |
Lining m² |
Edge lfm |
---|---|---|---|---|---|
5 x 3 x 1.5 | 68 | 25.5 | 15 | 40.5 | 16 |
5 x 3,5 x 1.5 | 72 | 27 | 17.5 | 44.5 | 17 |
5 x 4 x 1.5 | 76 | 28.5 | 20 | 48.5 | 18 |
6 x 3 x 1.5 | 76 | 28.5 | 20 | 48.5 | 18 |
6 x 3.5 x 1.5 | 80 | 30 | 21 | 51 | 19 |
6 x 4 x 4.5 | 84 | 31.5 | 24 | 55.5 | 20 |
7 x 3 x 1.5 | 84 | 31.5 | 21 | 52.5 | 20 |
7 x 3.5 x 1.5 | 88 | 33 | 24.5 | 57.5 | 21 |
7 x 4 x 1.5 | 92 | 34.5 | 28 | 62.5 | 22 |
8 x 3.5 x 1.5 | 96 | 36 | 28 | 64 | 23 |
8 x 4 x 1.5 | 100 | 37.5 | 32 | 69.5 | 24 |
9 x 4 x 1.5 | 108 | 40.5 | 36 | 76.5 | 26 |
9 x 5 x 1.5 | 116 | 43.5 | 45 | 88.5 | 28 |
10 x 4 x 1.5 | 116 | 43.5 | 40 | 83.5 | 28 |
10 x 5 x 1.5 | 124 | 46.5 | 50 | 96.5 | 30 |
* The quantities given do not include any additional elements. The quantities of elements required for the construction of the technical shaft and access stairs must be calculated and ordered separately
** non-slip version for the pool floor area, 100 x 500 x 5 cm
Notes
- 40 Ocean® Brick inserts are required per pool size.
- Calculations and information on other pool sizes available on request.
- Personalization of the inscription on the inner bar is possible on request.

Safety note
Static calculations regarding necessary iron quantities are to be provided by a qualified contractor, as these static requirements may vary from pool location (e.g.: level site or slope, groundwater, etc.).
