Ocean® System Brick 300

Please select a variant to see the product information.

Description

Ocean® System Brick 300

1250 mm length
divisible in 250 mm sections
tongue-and-groove
for high stability
82 mm
reinforced inner bar
0.29
U-value

Description

Extra high and wide connecting bars
82 mm reinforced inner bar with stress-optimized transitions to the side walls
Integrated notch or markings, divisible in 250 mm sections
Shaped inner contour increases stability during filling
54 l concrete volume

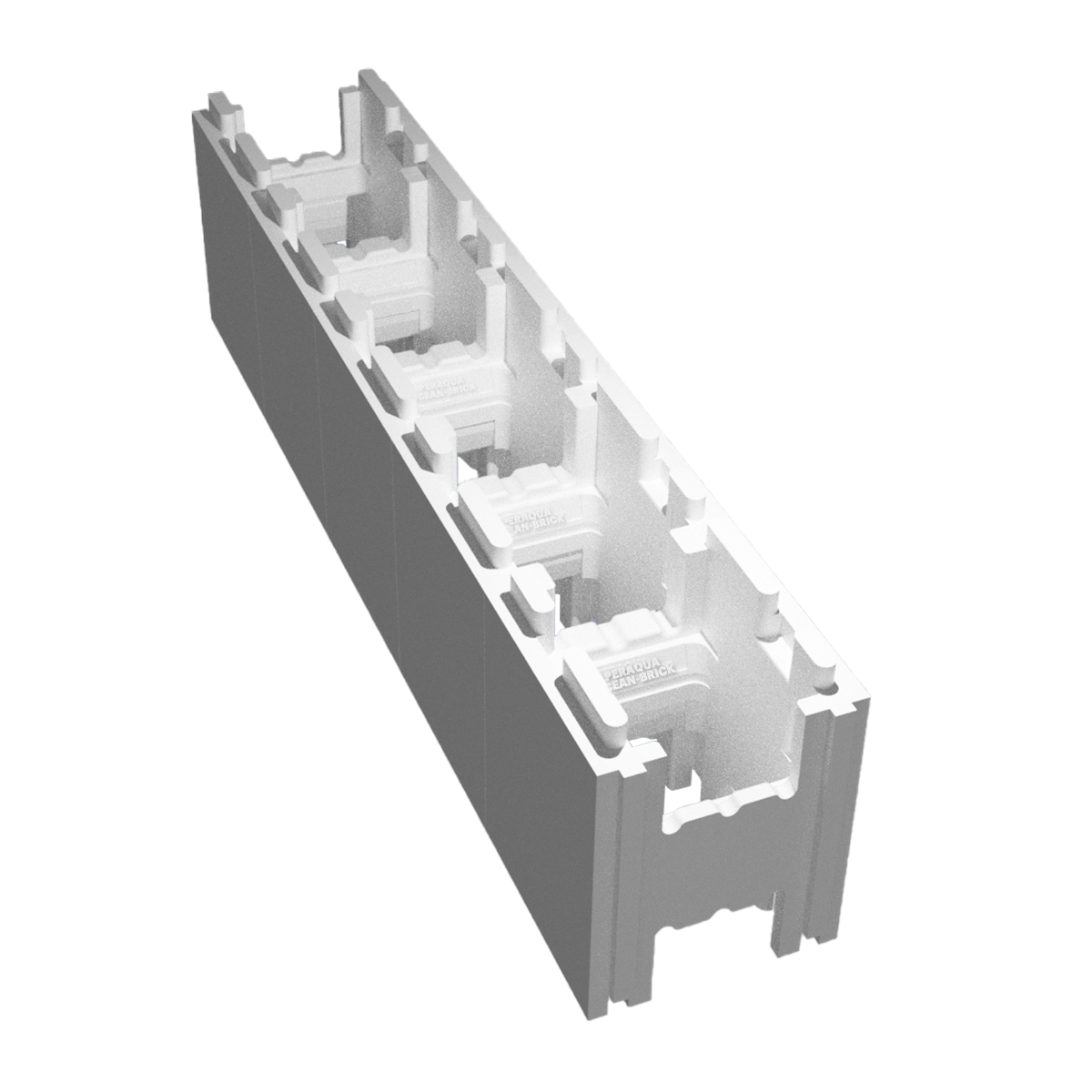

The Ocean® System Brick formwork block is the central building block of the Ocean® Brick pool system. Made from expanded polystyrene (EPS), the blocks can be assembled quickly and precisely to form stable pool walls. They form the ideal basis for modern, energy-efficient, and durable pools and impress with their intelligent details and ease of use.

Product details

High stability thanks to tongue-and-groove system with extra high and wide connecting bars and reinforced inner areas.
Reinforced inner bar (82 mm) with stress-optimized transitions to the side walls and integrated slopes helps to ensure optimum concrete distribution and reduces the risk of breakage during filling.
Three integrated guide gutters give the reinforcement iron sufficient support.
The unique shape of the inner contour reduces the volume of concrete required.
Thanks to the EPS material used, the formwork blocks offer significantly better thermal insulation (U-value from 0.29) than traditional concrete walls. The optimal insulation reduces the pool's heating time and saves energy.
Easy to cut and process. Standard length 1250 mm, can be divided into 250 mm sections, integrated notches/markings facilitate division.
Suitable for private and hotel pools as well as public swimming facilities.
Available in hardness grades EPS25, EPS30, and EPS MAX.
Developed and manufactured in Austria.

Dimensions

	Ocean® Brick
Length (mm)	1250
Width (mm)	250
Height (mm)	300

Versions

Product	Art. Nr.
Ocean® System Brick EPS 25	7301114
Ocean® System Brick EPS 30	7301115
Ocean® System Brick EPS MAX	7301117

Delivery

Delivery is made on disposable pallets. The quantity of bricks per pallet depends on the order quantity:

Single pallet: 32 pieces.
Total truckload: 720 units (= 20 pallets with 36 units each)

Quantity table

Swipe/scroll to see all columns

Pool size m	Required pieces*	ISO elements m²	EPS plates** m²	Lining m²	Edge lfm
5 x 3 x 1.5	68	25.5	15	40.5	16
5 x 3,5 x 1.5	72	27	17.5	44.5	17
5 x 4 x 1.5	76	28.5	20	48.5	18
6 x 3 x 1.5	76	28.5	20	48.5	18
6 x 3.5 x 1.5	80	30	21	51	19
6 x 4 x 4.5	84	31.5	24	55.5	20
7 x 3 x 1.5	84	31.5	21	52.5	20
7 x 3.5 x 1.5	88	33	24.5	57.5	21
7 x 4 x 1.5	92	34.5	28	62.5	22
8 x 3.5 x 1.5	96	36	28	64	23
8 x 4 x 1.5	100	37.5	32	69.5	24
9 x 4 x 1.5	108	40.5	36	76.5	26
9 x 5 x 1.5	116	43.5	45	88.5	28
10 x 4 x 1.5	116	43.5	40	83.5	28
10 x 5 x 1.5	124	46.5	50	96.5	30

* The quantities given do not include any additional elements. The quantities of elements required for the construction of the technical shaft and access stairs must be calculated and ordered separately
** non-slip version for the pool floor area, 100 x 500 x 5 cm

Notes

40 Ocean® Brick inserts are required per pool size.
Calculations and information on other pool sizes available on request.
Personalization of the inscription on the inner bar is possible on request.

Safety note

Static calculations regarding necessary iron quantities are to be provided by a qualified contractor, as these static requirements may vary from pool location (e.g.: level site or slope, groundwater, etc.).
