Compact filter system Graz, side mount

Please select a variant to see the product information.

Description
Downloads

Compact filter system Graz, side mount

Incl. filter pump
Smart Series M
6-way valve
included
Piping set
glued
Pre-assembled
on filter pallet

Description

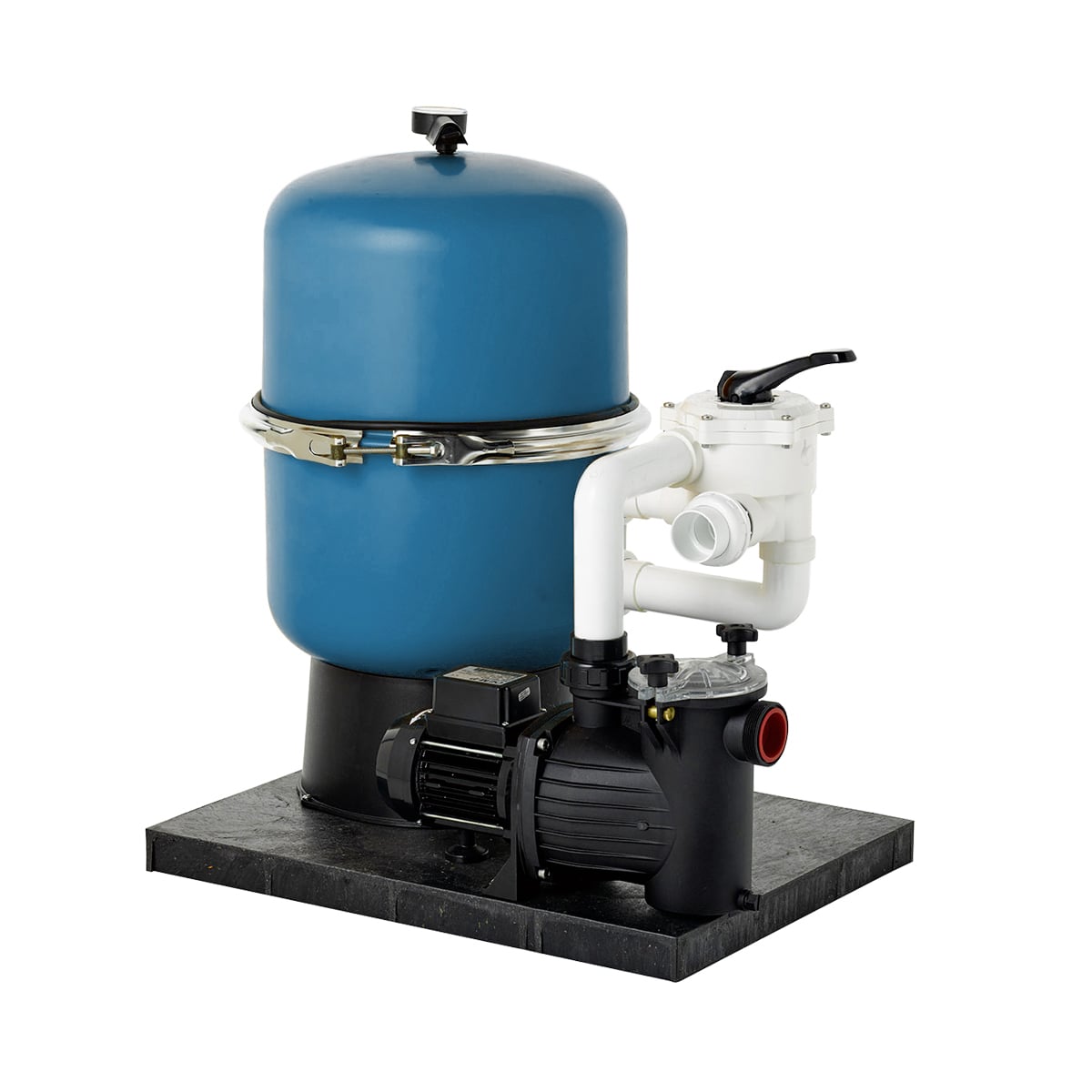

Compact filter system consisting of polypropylene (PPGF) filter, self-priming filter pump and 6-way backwash valve. Completely piped and mounted on a noise-reducing PE filter pallet. Suitable for private pools.

Product details

Polypropylen filter Graz
Two-part side mount filter container made of glass fibre reinforced polypropylene. Chrome steel clamping ring for service-friendly opening. Suitable for private pools.
More infos

product image Smart filter pump Series M

Smart filter pump Series M
Self-priming electric pump with built-in, large pre-filter. Asynchronous motor, hermetically sealed. The motor's ball bearings are permanently lubricated and guarantee a long service life and low noise level.
More infos

product image original Praher 6-way valve

Original Praher 6-way valve
ABS housing, max. operating pressure: 3.5 bar, 7 positions including winter position, with bonded pipework set.
More infos

Dimensions

Swipe/scroll to see all columns

	d400	d500	d600
Connection	1 ½"	1 ½"	1 ½"
D outside (mm)	400	500	600
Height A (mm)	725	795	825
Filtration area (m²)	0.10	0.19	0.28
Flow rate (m³/h)*	6	10	15
Filter pump	Serie M (0.16 kW)	Serie M (0.33 kW)	Serie M (0.55 kW)
6-way valve	1 ½"	1 ½"	1 ½"
Art.Nr.	74429	74430	74431

* (v = 50 m/h)

Dimensions filter Graz

Filling quantities

Swipe/scroll to see all columns

	d400	d500	d600
Filter bed height (mm)	430	390	405
Nature Works* (kg)	50	70	120
Filter sand** (kg)	50	80	120

* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm

Scope of delivery

Polypropylen filter Graz
Smart filter pump Series M
Original Praher 6-way valve, 1 ½", white
Valve pipework set bonded
Ocean screw connections 3 pcs.
Pre-assembled on PE filter pallet
