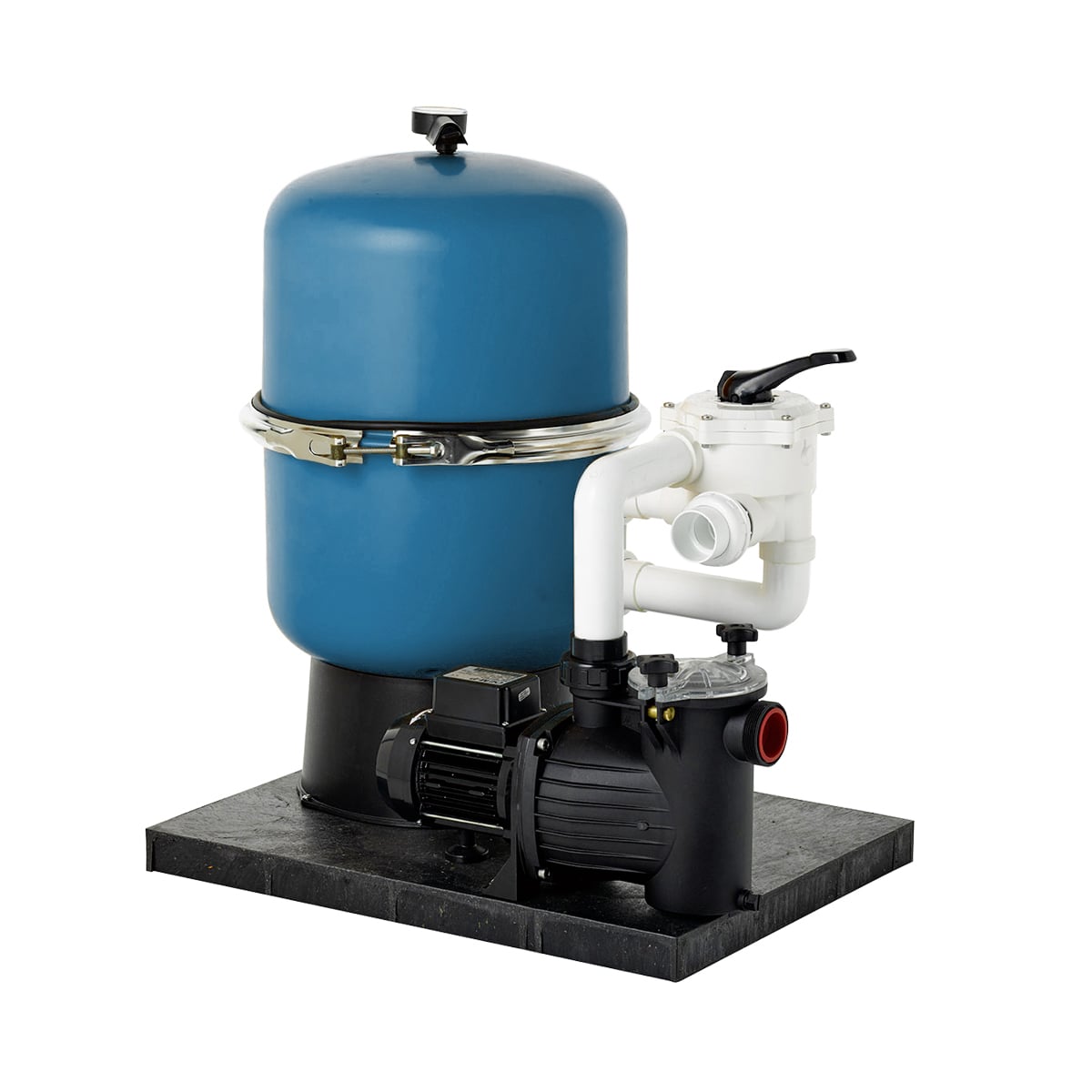

Compact filter system Graz, side mount
- Incl. filter pump
Smart Series M - 6-way valve
included - Piping set
glued - Pre-assembled
on filter pallet
Description
Compact filter system consisting of polypropylene (PPGF) filter, self-priming filter pump and 6-way backwash valve. Completely piped and mounted on a noise-reducing PE filter pallet. Suitable for private pools.
Product details
Polypropylen filter Graz
Two-part side mount filter container made of glass fibre reinforced polypropylene. Chrome steel clamping ring for service-friendly opening. Suitable for private pools.
More infos
Two-part side mount filter container made of glass fibre reinforced polypropylene. Chrome steel clamping ring for service-friendly opening. Suitable for private pools.
More infos
Smart filter pump Series M
Self-priming electric pump with built-in, large pre-filter. Asynchronous motor, hermetically sealed. The motor's ball bearings are permanently lubricated and guarantee a long service life and low noise level.
More infos
Self-priming electric pump with built-in, large pre-filter. Asynchronous motor, hermetically sealed. The motor's ball bearings are permanently lubricated and guarantee a long service life and low noise level.
More infos
Original Praher 6-way valve
ABS housing, max. operating pressure: 3.5 bar, 7 positions including winter position, with bonded pipework set.
More infos
ABS housing, max. operating pressure: 3.5 bar, 7 positions including winter position, with bonded pipework set.
More infos
Dimensions
Swipe/scroll to see all columns
* (v = 50 m/h)
Dimensions filter Graz
Filling quantities
Swipe/scroll to see all columns
| d400 | d500 | d600 | |
|---|---|---|---|
| Filter bed height (mm) | 430 | 390 | 405 |
| Nature Works* (kg) | 50 | 70 | 120 |
| Filter sand** (kg) | 50 | 80 | 120 |
* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm
Scope of delivery
- Polypropylen filter Graz
- Smart filter pump Series M
- Original Praher 6-way valve, 1 ½", white
- Valve pipework set bonded
- Ocean screw connections 3 pcs.
- Pre-assembled on PE filter pallet
FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®
Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.
For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
