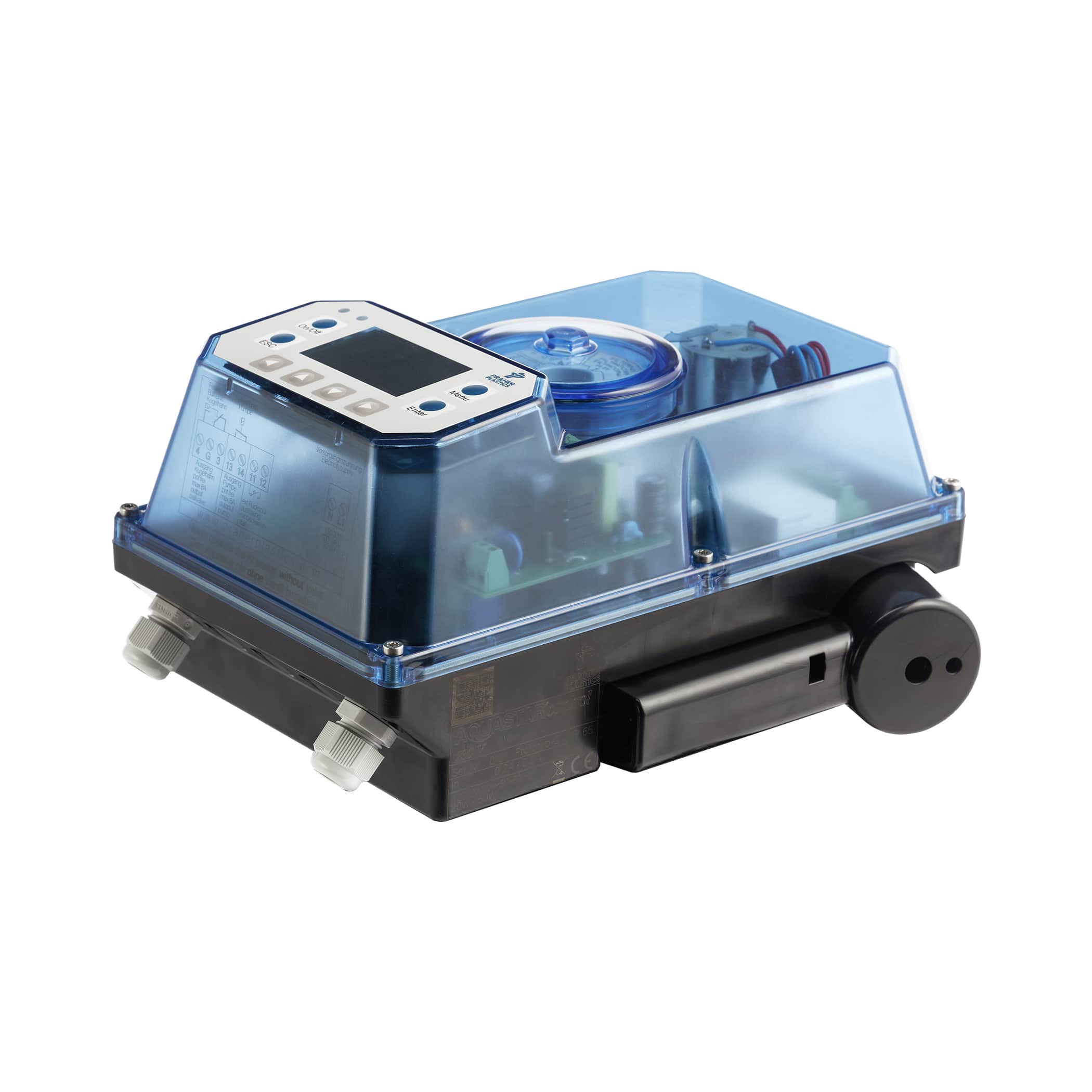

Actuator AQUASTAR® control with Pressure Sensor
- Automation
of 6-way backwash valves
- Integrated display
with keypad
- Integrated
pool control functions
- Retrofitting
is easily possible
Description
The AQUASTAR® control actuator is an automatic backwash system designed for the automation of Praher Plastics 6-way backwash valves in swimming pool and water treatment systems. The system is available for valves with nominal diameters of 1 ½", 2", and 3" and enables the automatic control of filtration and backwash processes.
Backwashing can be initiated based on predefined time schedules, the measured filter pressure, or via an external trigger. This allows recurring filtration processes to be automated and standardized backwashing sequences to be carried out. The system supports the valve positions Filtering, Backwashing, Rinsing, Circulating, Draining, Closed as well as an additional Winter Position to relieve pressure on the seals during winter storage.
The unit is operated via an integrated display with a keypad. In addition, various monitoring and control functions are available, including filter pump control, level monitoring, and heating or solar control. Freely configurable inputs and outputs allow for adaptation to different system configurations.
The integrated safety functions include, among others, dry-run protection, pump detection, fill time monitoring, and pressure-dependent backwash control. For applications with increased requirements for supply reliability, an optional SafetyPack is available, which can assist the valve in returning to the "Filter" position in the event of a power failure.
Product details
| |
Actuator AQUASTAR® control with Pressure Sensor |
| Product Type: | Actuator with control unit for 6-way backwash valve |
| Compatibility: | 6-way valves in 1½", 2", and 3" |
| Backwash Trigger: | Time program, pressure control, or external trigger |
| Voltage: | 100–240 V AC 50/60 Hz, 150–300 V DC, or 24 V AC/DC (depending on model) |
| Protection rating: | IP65 |
Features
- Lift-and-rotate actuator with integrated control
- Automatic backwashing with time or pressure control
- Automatic filter pump control
- Connection option for EO510 ball valves
- Level and temperature management
- Display with multilingual user interface
- Real-time clock (RTC) with battery
- Manual override for maintenance purposes
- PIN-protected access to system settings
- Alarm and safety functions with automatic emergency stop
- Freely configurable inputs and outputs
- Retrofittable for Praher Plastics V6 backwash valves
- Suitable for residential, commercial, and industrial applications
Versions
| Product |
Art. Nr. |
| AQUASTAR® control actuator for V6 backwash valve, ND 1 ½" + 2", 24 V AC/DC | 131492 |
| AQUASTAR® control actuator for V6 backwash valve, ND 1 ½" + 2", 100 - 240 V AC | 131493 |
| AQUASTAR® control actuator for V6 backwash valve, ND 3", 24 V AC/DC | 131494 |
| AQUASTAR® control actuator for V6 backwash valve, ND 3", 100 - 240 V AC | 131495 |
Note
The actuator is shipped without a 6-way backwash valve. For proper operation, you will need a compatible side-mount backwash valve. This must be ordered separately from the AQUASTAR® control actuator.
