Titanium tube heat exchanger

Please select a variant to see the product information.

Description
Downloads

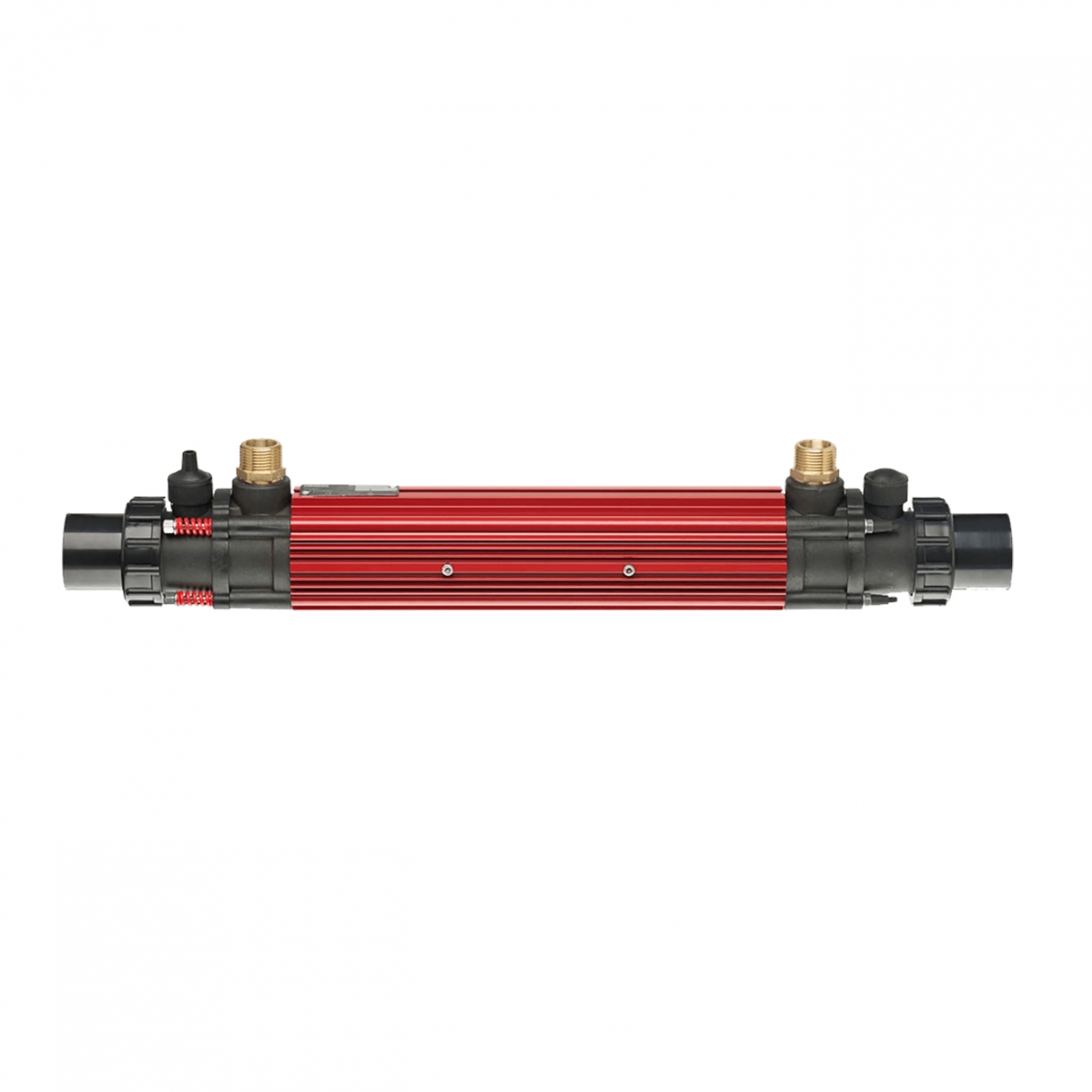

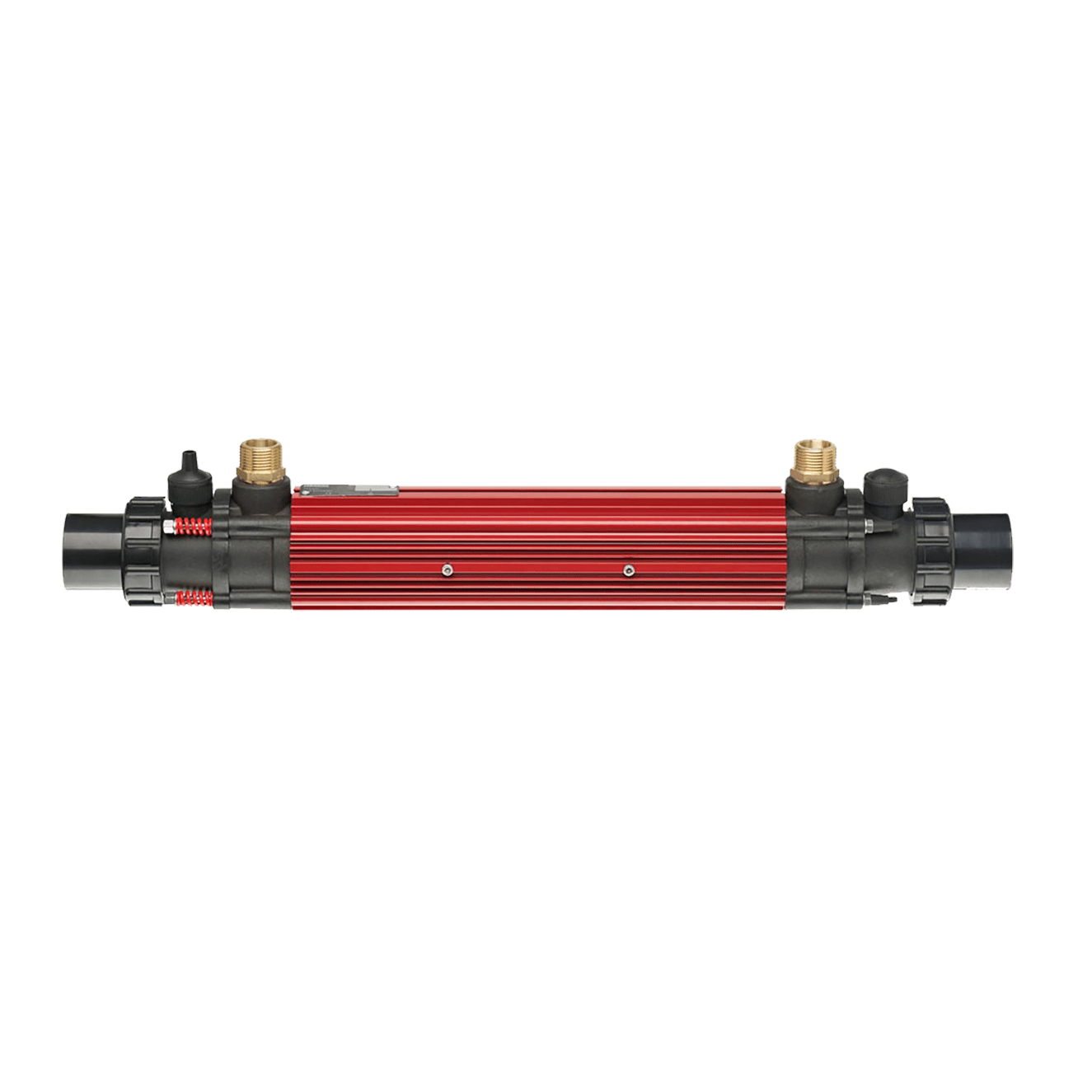

Titanium tube heat exchanger

High efficiency
with minimum energy losses
Primary side
AISI 316L (V4A) (EN 1.4432) stainless steel
Heat exchanger
can be connected vertically/horizontally
Salt electrolysis
suitable

Description

The compact titanium multi-tube bundle element is located in an optimally insulated outer chamber. The small volume of the chamber combined with the high surface area of the titanium tubes ensures outstanding efficiency with minimised energy losses

The outer shell of the primary circuit is made of AISI 316L (V4A) (EN 1.4432) stainless steel and is optimally insulated with an additional aluminium housing with a plastic filling in between, thus guaranteeing the highest possible efficiency.

Depending on the installation situation, the G2 heat exchanger can be installed vertically or horizontally.

Product details

Technical data

Swipe/scroll to see all columns

Standard power output (kW)	Primary (HOT) flow (m³/h)	Primary (HOT) head loss (Bar)	Secondary (POOL) flow (m³/h)	Secondary (POOL) head loss (Bar)	ΔT 15° C (kW)	ΔT 20° C (kW)	ΔT 30° C (kW)	ΔT 40° C (kW)	ΔT 50° C (kW)	ΔT 60° C (kW)	ΔT 70° C (kW)
30 kW	1.1	0.061	10	0.050	9	11	16	20	26	30	33
30 kW	1.3	0.068	10	0.050	10	13	18	23	31	34	39
30 kW	1.3	0.068	14	0.070	11	15	20	26	34	41	46
49 kW	1.6	0.077	16	0.092	13	18	25	43	41	50	56
49 kW	1.8	0.083	16	0.092	15	20	28	38	45	55	62
49 kW	2.2	0.093	17	0.098	16	22	33	44	52	64	73
85 kW	2.4	0.113	17	0.106	22	28	40	53	64	75	81
85 kW	2.7	0.129	17	0.106	26	32	46	60	73	82	89
85 kW	3.2	0.147	17	0.106	28	34	49	64	77	90	102
122 kW	3.8	0.183	19	0.126	33	43	68	75	93	108	120
122 kW	4.2	0.200	19	0.126	36	48	70	89	108	126	143
122 kW	4.6	0.211	19	0.126	38	53	73	95	116	137	156

Features

Consists of 36 titanium tubes
Low pressure drop
100% compatible with salt chlorinator pools
Max. operating pressure: 4 bar
Material primary side: AISI 316L (V4A) (EN 1.4432) stainless steel
Secondary side material: Titanium
Water connection primary circuit: 1" BSP female thread (incl. 1" ET/ET brass thread adapter)
Secondary circuit water connection: 1 1/2"/50 mm adhesive connection
Temperature and flow sensor connection
Floor or wall mounting
Including 2 x 1" ET brass double nipples, 1 x cover cap for immersion sleeve, 1 x brass non-return valve 1" IT

Versions

Product	Art. Nr.
Titanium tube heat exchanger 30 kW	740084
Titanium tube heat exchanger 49 kW	740085
Titanium tube heat exchanger 85 kW	740086
Titanium tube heat exchanger 122 kW	740087

Dimensions

	30 kW	49 kW	85 kW	122 kW
L1 (mm)	540	710	840	1000
L2 (mm)	426	596	726	886
L3 (mm)	247	417	547	707
Net weight (kg)	3.5	4.5	5.3	6.4
Gross weight (kg)	3.9	5.0	6.3	7.6
Volume (m³)	0.016	0.021	0.026	0.037
