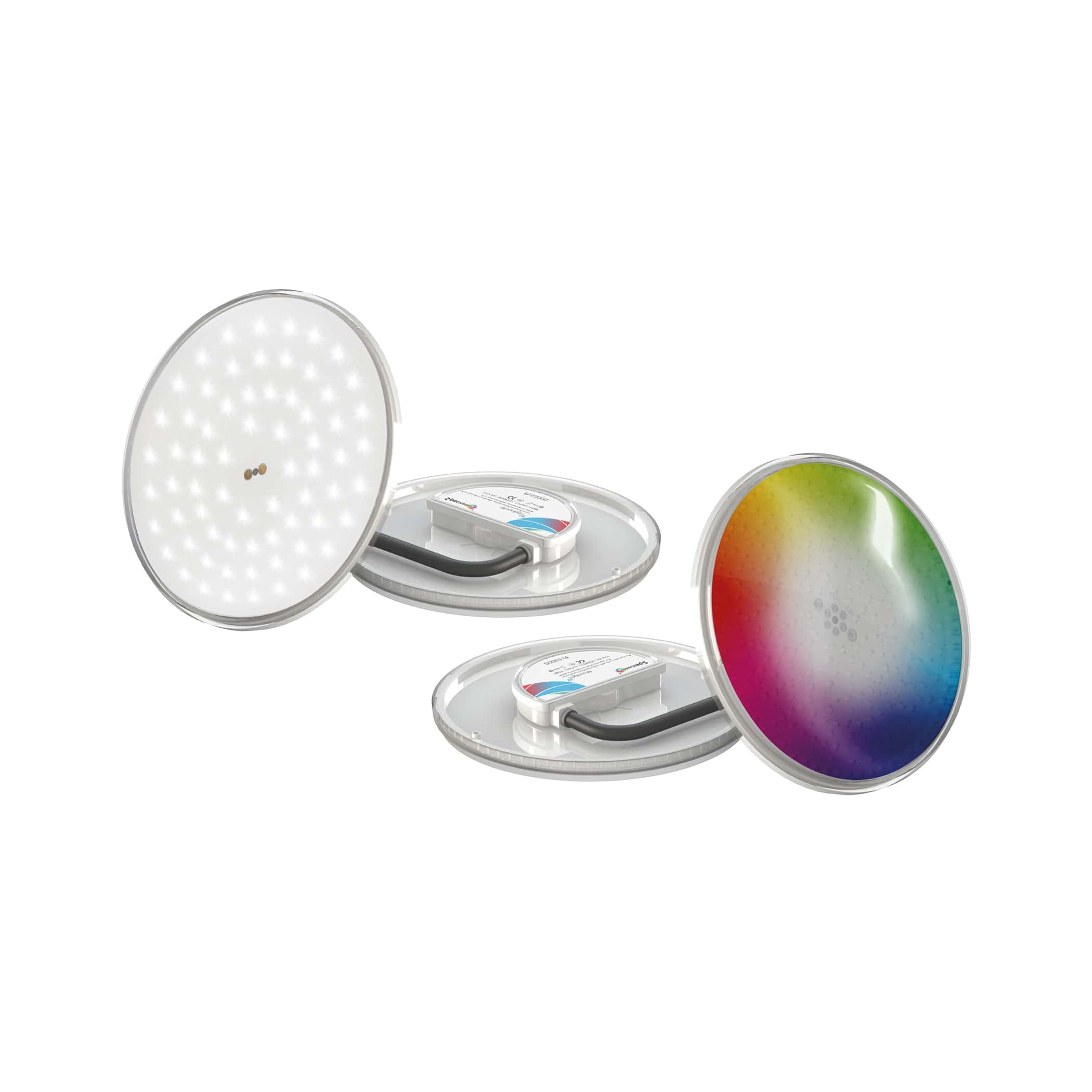

LED underwater pool light VISION Moonlight
- 17 cm
diameter
- PAR56
retrofit kit
- Salt electrolysis
suitable
Description
The VISION Moonlight underwater spotlight is ideal for retrofitting conventional pool lighting to LED underwater lighting. The spotlight is fully compatible with the PAR56 niche and can be installed in all standard 300 W spotlight frames using mounting clips.
A resin-filled NoAir™ housing prevents water from entering the pool light. The high-quality housing is made of corrosion-resistant polymer and can be used in pools with salt electrolysis systems.
The spotlight has a wide beam angle, which means that shadow zones in the pool can be avoided.
Available in "RGB" (16 fixed color programs) and "white" versions.
Can be controlled via simple transformer or with remote control.
Product details
Technical data
Swipe/scroll to see all columns
| |
VISION Moonlight |
|---|
| |
WHITE |
RGB |
|---|
| Color | white | white | white | RGB | RGB | RGB |
| Nominal color temp. (K) | 9000 | 9000 | 9000 | - | - | - |
| Power (W) | 14 | 23 | 35 | 13 | 23 | 33 |
| Lumens (lm) | 1350 | 2400 | 3500 | 800 | 1550 | 2200 |
| Diameter (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
| Beam angle (°) | 120 | 120 | 120 | 120 | 120 | 120 |
| VA transformer (VA) | 18 | 30 | 46 | 17 | 30 | 43 |
| Voltage (V AC) | 12 | 12 | 12 | 12 | 12 | 12 |
| Max. water temp. (°C) | +40 | +40 | +40 | +40 | +40 | +40 |
| Art.-Nr. |
74741 |
74742 |
74743 |
74738 |
74739 |
74740 |
Features
- Available in different luminous flux levels and colours
- Suitable for PAR56 Niche
- With mounting clips for common brands and all common 300 W spotlight frames
- Easy installation with Moonlight mounting kit
- NoAir™ housing
- Salt electrolysis compatible
- RGB: 16 fixed color programs
- Wide beam angle
- Operates on 12 VAC
- Simple control
Color programs
| |
RGB lamps |
|
| 1 | Sun White | Warm white |
| 2 | Red | Fixed color red |
| 3 | Green | Fixed color green |
| 4 | Blue | Fixed color blue |
| 5 | Green-Blue | Fixed color green-blue |
| 6 | Red-Green | Fixed color red-green |
| 7 | Blue-Red | Fixed color blue-red |
| 8 | Evening Sea | Slow animation red-blue |
| 9 | Evening River | Slow animation red-green |
| 10 | Riviera | Slow animation green-blue |
| 11 | Neutral White | Cold white |
| 12 | Rainbow | Slow animation blue-red-green |
| 13 | River of Colors | Program 12, followed by program 15 |
| 14 | Disco | Fast animation |
| 15 | Four Seasons | Slow animation red-blue-green-violet |
| 16 | Party | Fast animation |
Versions
| Product |
Art. Nr. |
|---|
| LED underwater pool light VISION Moonlight white, 1350 lm, 14 W, d 170 mm | 74741 |
| LED underwater pool light VISION Moonlight white, 2400 lm, 23 W, d 170 mm | 74742 |
| LED underwater pool light VISION Moonlight white, 3500 lm, 35 W, d 170 mm | 74743 |
| LED underwater pool light VISION Moonlight RGB, 800 lm, 13 W, d 170 mm | 74738 |
| LED underwater pool light VISION Moonlight RGB, 1550 lm, 23 W, d 170 mm | 74739 |
| LED underwater pool light VISION Moonlight RGB, 2200 lm, 33 W, d 170 mm | 74740 |
Scope of delivery
- VISION Moonlight pool light
- Non-removable 2-wire cable, length 4 m
- Retrofit kit for PAR56 niche
Suitable control units
Our recommendation
Control unit with transformer
For OFF/ON and color setting functions. Built-in 200 VA transformer. Includes 1 hand-held transmitter.
More infos
Control unit without transformer
For OFF/ON and color setting functions. Includes 1 hand-held transmitter.
More infos
Alternate control options
Transformer TORO DIN 150 W
Toroidal transformer. Model for DIN rail mounting.
More infos
Transformer TORO IP64 150 W
Toroidal transformer. Model for wall mounting with IP64 housing.
More infos
Innovative technology for easy installation
NoAir™
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
