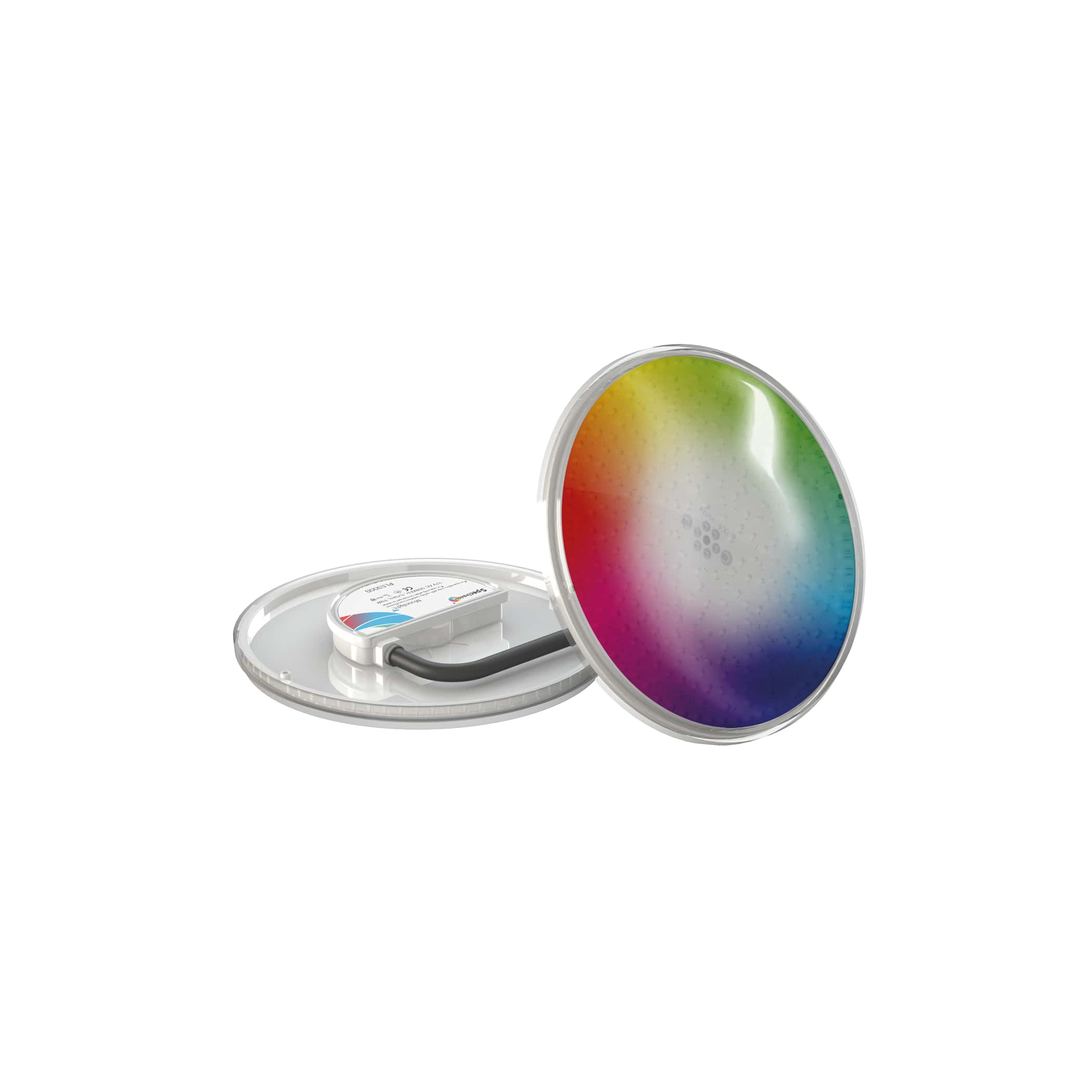

LED underwater pool light VISION Moonlight RGB
- 800
lumens - 17 cm
diameter - PAR56
retrofit kit - Salt electrolysis
suitable
Description
The VISION Moonlight underwater spotlight is ideal for retrofitting conventional pool lighting to LED underwater lighting. The spotlight is fully compatible with the PAR56 niche and can be installed in all standard 300 W spotlight frames using mounting clips.
A resin-filled NoAir™ housing prevents water from entering the pool light. The high-quality housing is made of corrosion-resistant polymer and can be used in pools with salt electrolysis systems.
The spotlight has a wide beam angle, which means that shadow zones in the pool can be avoided.
Can be controlled via simple transformer or with remote control.
16 fixed color programs.
Product details
Technical data
Swipe/scroll to see all columns
| VISION Moonlight RGB, 800 lm | |
|---|---|
| Color | RGB |
| Power (W) | 13 |
| Lumens (lm) | 800 |
| Diameter (mm) | 170 |
| Beam angle (°) | 120 |
| VA transformer (VA) | 17 |
| Voltage (V AC) | 12 |
| Max. water temp. (°C) | +40 |
Features
- 16 fixed color programs
- Suitable for PAR56 Niche
- With mounting clips for common brands and all common 300 W spotlight frames
- Easy installation with Moonlight mounting kit
- NoAir™ housing
- Salt electrolysis compatible
- Wide beam angle
- Operates on 12 VAC
- Simple control
Versions
| Product | Art. Nr. |
|---|
| VISION Moonlight white, 3500 lm | |
|---|---|
| Color | white |
| Nominal color temp. (K) | 9000 |
| Power (W) | 35 |
| Lumens (lm) | 3500 |
| Diameter (mm) | 170 |
| Beam angle (°) | 120 |
| VA transformer (VA) | 46 |
| Voltage (V AC) | 12 |
| Max. water temp. (°C) | +40 |
Features
- Suitable for PAR56 Niche
- With mounting clips for common brands and all common 300 W spotlight frames
- Easy installation with Moonlight mounting kit
- NoAir™ housing
- Salt electrolysis compatible
- Wide beam angle
- Operates on 12 VAC
- Simple control
Versions
| Product | Art. Nr. |
|---|---|
| LED underwater pool light VISION Moonlight white, 1350 lm, 14 W, d 170 mm | 74741 |
| LED underwater pool light VISION Moonlight white, 2400 lm, 23 W, d 170 mm | 74742 |
| LED underwater pool light VISION Moonlight white, 3500 lm, 35 W, d 170 mm | 74743 |
| LED underwater pool light VISION Moonlight RGB, 800 lm, 13 W, d 170 mm | 74738 |
| LED underwater pool light VISION Moonlight RGB, 1550 lm, 23 W, d 170 mm | 74739 |
| LED underwater pool light VISION Moonlight RGB, 2200 lm, 33 W, d 170 mm | 74740 |
Scope of delivery
- VISION Moonlight pool light
- Non-removable 2-wire cable, length 4 m
- Retrofit kit for PAR56 niche
Suitable control units
Our recommendation
Control unit with transformer
For OFF/ON and color setting functions. Built-in 200 VA transformer. Includes 1 hand-held transmitter.
More infos
For OFF/ON and color setting functions. Built-in 200 VA transformer. Includes 1 hand-held transmitter.
More infos
Control unit without transformer
For OFF/ON and color setting functions. Includes 1 hand-held transmitter.
More infos
For OFF/ON and color setting functions. Includes 1 hand-held transmitter.
More infos
Alternate control options
Transformer TORO IP64 150 W
Toroidal transformer. Model for wall mounting with IP64 housing.
More infos
Toroidal transformer. Model for wall mounting with IP64 housing.
More infos
Innovative technology for easy installation
NoAir™
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
