iQnnect Base - Smart Pool, complete pool technology set

iQnnect Base - Smart Pool

• Pool tech set
  for skimmer pools
• Loxone®
  Smart Home integration
• Central control
  via app
• Chlorine/salt system
  for pools up to 60 m³

Description

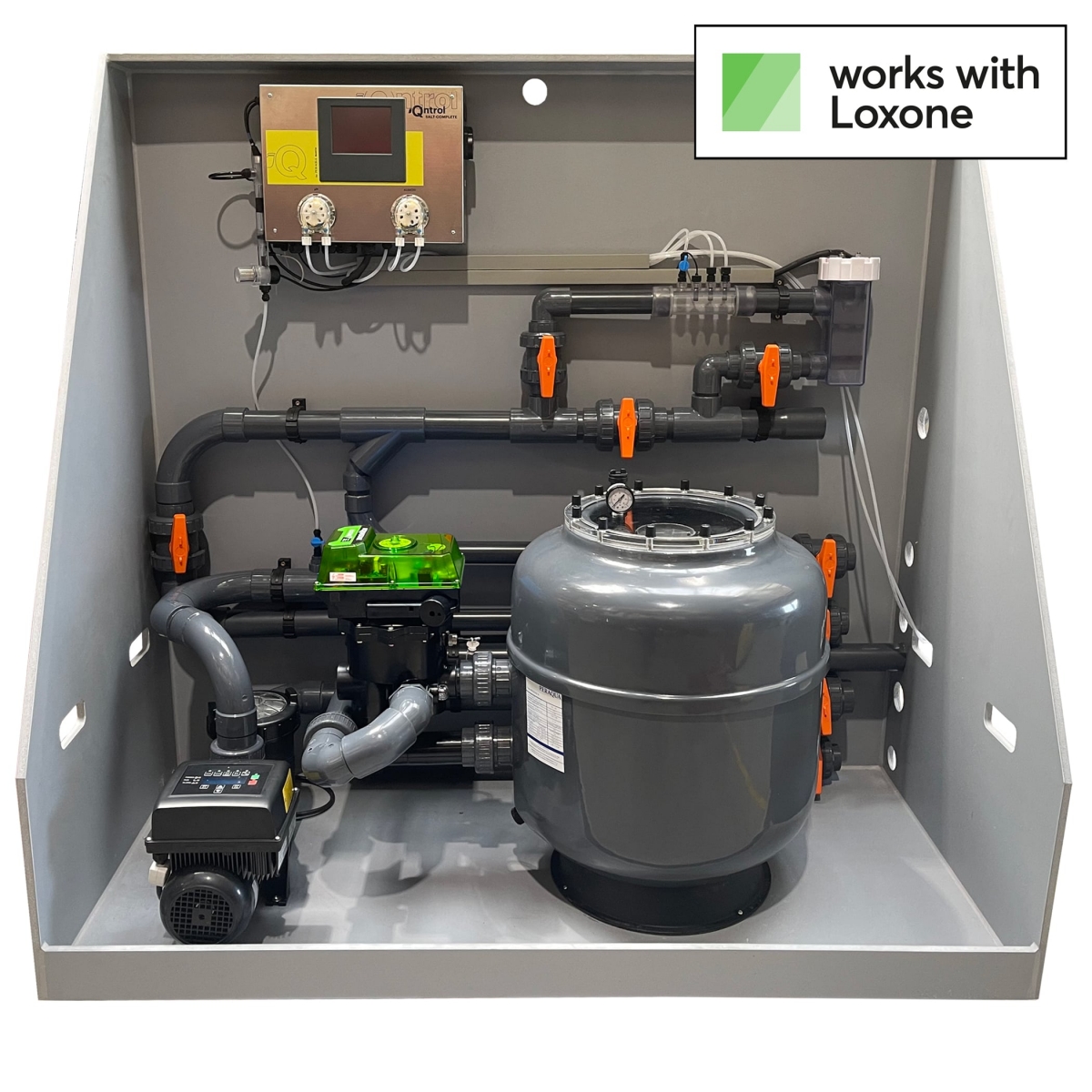

The iQnnect BASE is a pre-assembled, complete pool technology set for skimmer pools. The filter, filter pump, Loxone® AQUASTAR® air backwash valve, and an iQntrol chlorine or salt system are pre-assembled and piped onto a BASE (electrical components not included).

The system also allows for the optional integration of additional components such as a heat pump, level control, and underwater spotlights.

The control system is based on the Loxone® smart home system. The Loxone® AQUASTAR® Air with integrated Loxone® Air technology and a Loxone® Miniserver serve as the control center.

By networking the iQnnect components, key pool functions can be monitored and controlled via the Loxone® app. Temperature, water level, and pH and redox values can be viewed and adjusted using mobile devices. Notifications can be sent in the event of defined deviations or malfunctions.

A sample configuration file developed specifically for iQnnect is available for setup. The software is continuously being developed and updated.

Available with chlorine disinfection or a salt electrolysis system.

Overview

Product details

Components

• Polyester filter Bregenz 3 Pro, d610, 2" connection or Polyester filter Bregenz 3 Pro, d500, 1 ½" connection
• Loxone® AQUASTAR® air SM20, 2" ABS or Loxone® AQUASTAR® air SM10, 1 ½" ABS
• Ocean® pool pump Inver iQ 300, variable speed, 2.2 kW, 30 m³/h at 10 m
• iQntrol dosing system oder iQntrol salt electrolysis system
• Pressure sensor for Loxone® AQUASTAR® air, including connection cable, for filter pressure control
• iQnnect software package
• Pre-assembled Praher Plastics PVC fittings, pipes, fittings (d63)
• BASE platform: made of polypropylene, for save transport and easy placement
• Nature Works glass filter media

Technical data

• For pool sizes up to 60 m³ (AT, DE) resp. 50 m³ (CH)
• Available with chlorine or salt system
• Dimensions: 1700 x 780 x 1580 mm
• Wall thickness: 15 mm

Versions

Notes

• For implementation, we recommend working with a qualified Loxone® partner.
• Loxone® Mini-Go Server not included in the scope of delivery.
