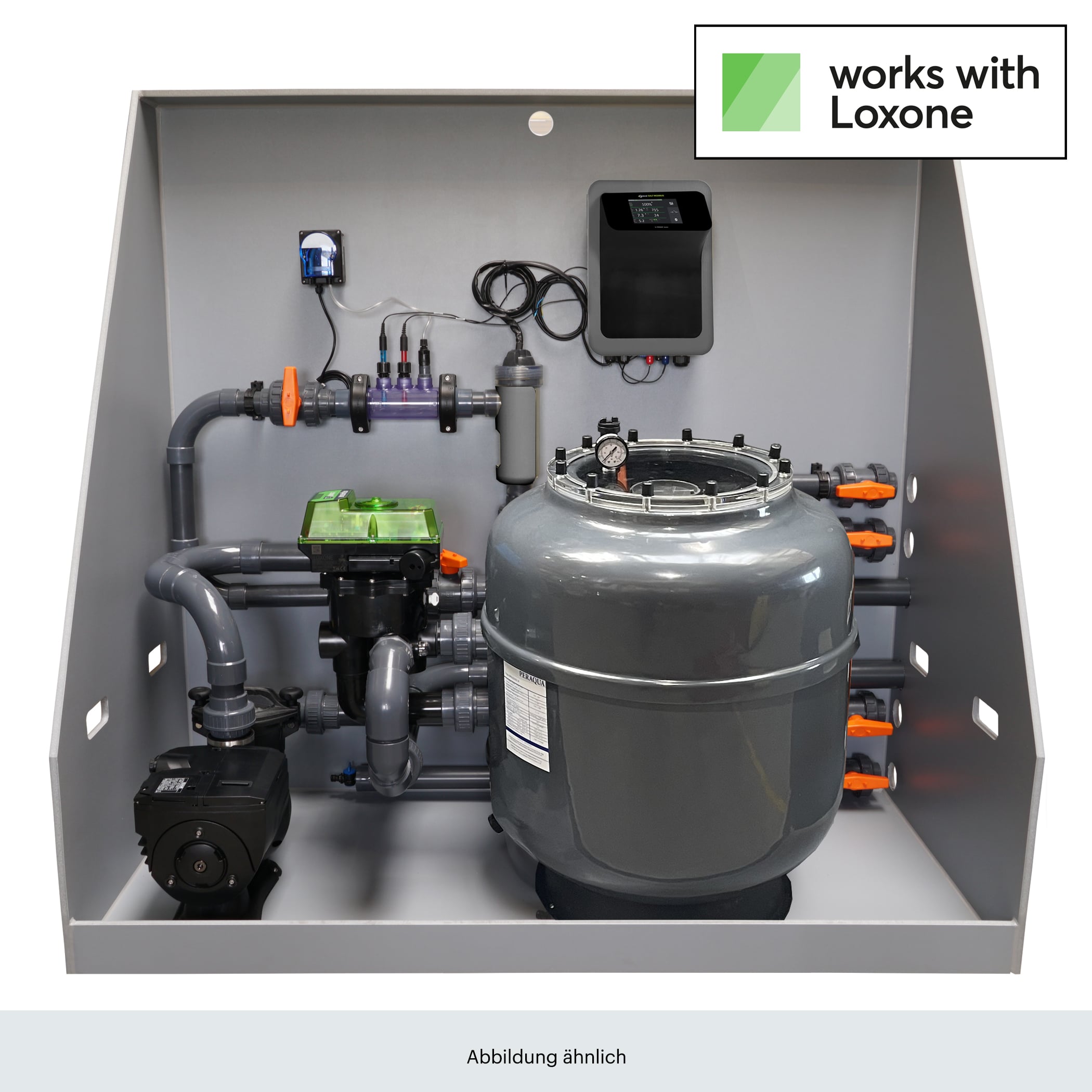

iQnnect Base Salt-Modbus, complete pool technology set with salt electrolysis system, for skimmer pools

The iQnnect BASE Salt-Modbus is an easy-to-install complete pool technology set for skimmer pools.

A filter, a filter pump, an Loxone® Aquastar® Air backwash valve and an iQntrol salt electrolysis system are piped and pre-assembled on a BASE (electrics not included). The optional integration of a heat pump, level control and underwater spotlights has also been taken into account.

The pool control of the iQnnect BASE is based on the Loxone® Smart Home System. The Loxone® Aquastar® Air with integrated Loxone® Air technology and a Loxone® Miniserver serve as the control center.

The intelligent networking of the iQnnect components makes it possible to monitor and control the entire pool technology via ONE SINGLE app: temperature, water level, pH and redox values can be called up and regulated in real time via the user-friendly and clear interface of the Loxone® app on smart end devices. Notifications in the event of deviating values and error messages are sent regardless of location and time.

A sample config specially developed for iQnncet enables simple configuration of the entire system in the Loxone® Config. The software is continuously updated and optimized by Peraqua®.

Product details

Components

• Polyester filter Bregenz 3 Pro, d610, 2" connection
• Loxone® Aquastar® Air SM20, 2" ABS, black, BSP thread, Top + Bottom slip
• Smart pool pump E.Pro 150, variable speed, 1.1 kW, 23 m³/h at 10 m
• iQntrol salt electrolysis system SALT-MODBUS
• Transparent electrode holder d50, 3 x sensor holders ½" internal thread
• pH sensor incl. sensor holder ½" external thread and dosing pump, without saddle clamp
• Redox (ORP) sensor inkl. sensor holder ½" external thread , without saddle clamp
• Data cable for E.Pro 150
• Pressure sensor for Loxone® Aquastar® Air, including connection cable, for filter pressure control
• iQnnect software complete package, for skimmer pools with iQntrol salt electrolysis system SALT-MODBUS
• Pre-assembled Praher Plastics PVC fittings, pipes, fittings (d63)
• BASE platform: made of polypropylene, for save transport and easy placement
• Nature Works glass filter media

Technical data

• For pool sizes up to 60 m³ (AT, DE) resp. 50 m³ (CH)
• Dimensions: 1700 x 780 x 1580 mm
• Wall thickness: 15 mm

Versions

Notes

• For implementation, we recommend working with a qualified Loxone® partner.
• Loxone® Mini-Go Server not included in the scope of delivery.

Advantages of Smart Pool and iQnnect

Sustainable pool management

• Stable water quality thanks to automatic measurement of real-time data
• Optimisation of water consumption by reducing backwashing processes
• Optimisation of the backwash processes:
  • According to requirements and situation, individual flow rates and filter times.
  • The pump is automatically switched off to depressurise the valve disc.
• Overflow protection through automatic backwash triggers
• Dry-running protection thanks to automatic level control. If the water level in the pool is too low, water is automatically added.
• Automatic adjustment of the water temperature to a set target temperature
• Sustainable energy management: If a photovoltaic system is integrated, power peaks can be used automatically for the pool technology (e.g. pool heating, filter processes).

Safety

Notifications of deviating values and error messages are sent via the app regardless of time and place.

Remote maintenance

The Loxone® app gives the pool expert an overview of the water values and the functions of the customer pools. This allows them to intervene remotely and quickly. This not only saves travel time and service costs, but also offers pool owners an additional service.

One Pool. One System. One Smart Home App.
