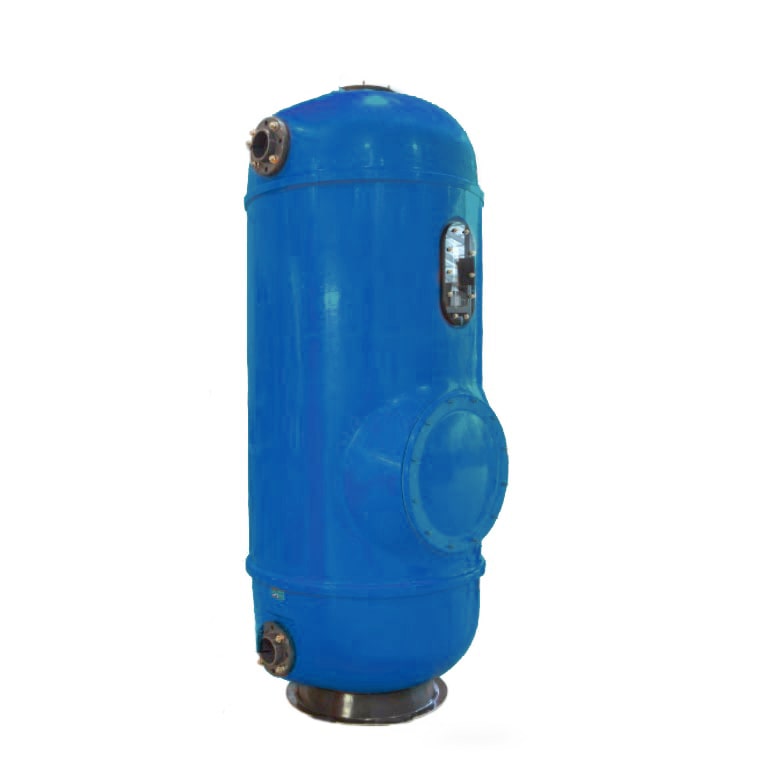

GRP multi-layer filter Steyr DIN 19643

GRP multi-layer filter Steyr DIN 19643

• 2 bar (PA)
  operating pressure
• Incl. connection
  venting/draining
• Large manhole
  lateral

Description

Filter container made of high-quality glass fibre reinforced plastic. Handmade to ensure maximum chemical and mechanical resistance. The built-in parts are made of PP, ABS and PVC. All installed screws are made of high-strength, corrosion-resistant INOX (stainless steel), nuts are made of nickel-plated brass. The filter tank is supplied with a connection for manual or automatic venting and draining.

5-year guarantee on filter container.

Product details

• DIN 19643 compliant
• Max. operating pressure: 2 bar (PA) / 2.5 bar (PP)
• Nozzle base
• Glass fibre reinforced plastic
• Incl. connection for venting and draining
• Side viewing window
• Large manhole at the side
• Bottom cover for easy servicing
• Filter container in RAL5015 blue

Dimensions

	d610	d765	d920	d1080	d1250	d1450	d1800
Connection (DN)	90/75	90/80	110/90	140/110	160/140	160/140	225/160
D inside (mm)	590	740	900	1050	1230	1430	1780
D outside (mm)	635	790	945	1120	1295	1470	1840
Height (mm)	2100	2350	2350	2500	2500	2700	2900
Filtration area (m²)	0.27	0.43	0.64	0.87	1.19	1.61	2.49
Flow rate 35 (m³/h)*	9.6	15.1	22.3	30.3	41.6	56.2	87.1
Flow rate 50 (m³/h)**	13.7	21.5	31.9	43.3	59.4	80.3	124.4
Top/side opening (DN mm)	210/210	210/210	210/430	500/500	500/500	500/500	500/500
Art.Nr.	7301702	7301703	7301664	7301665	7301666	7301667	7301668

* (v = 35 m/h) | ** (v = 50 m/h)

Multi-layer filter Steyr DIN

Filling quantities
