Compact filter system Attersee Premium, top mount

Please select a variant to see the product information.

Description

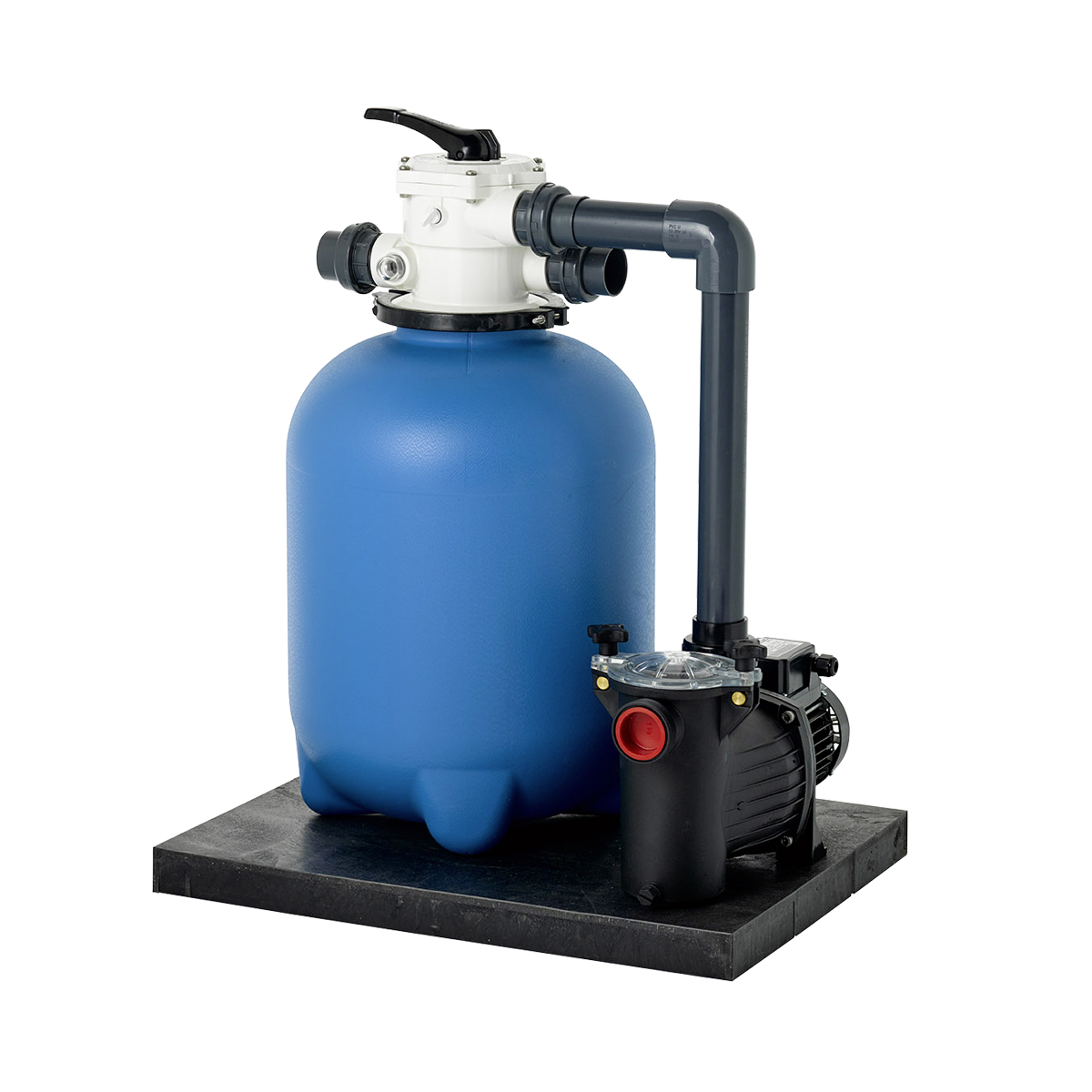

Compact filter system Attersee Premium, top mount

Incl. filter pump
Smart Series M
6-way valve
included
Piping set
glued
Pre-assembled
on filter pallet

Description

Compact filter system consisting of plastic filter, self-priming filter pump and 6-way backwash valve. Completely piped and mounted on a noise-reducing PPGFK base plate. Ready to plug in. Suitable for private pools.

Product details

PE filter Attersee, top mount
Top mount filter container made of polyethylene. One-piece, blown tank. Suitable for private pools.

Product image Smart filter pump Series M

Smart filter pump Series M
Self-priming electric pump with built-in, large pre-filter. Asynchronous motor, hermetically sealed. The motor's ball bearings are permanently lubricated and guarantee a long service life and low noise level.
More infos

Product image original Praher 6-way valve, top mount

Original Praher 6-way valve, top mount
ABS housing, max. operating pressure: 3.5 bar, 7 positions including winter position, with bonded pipework set.
More infos

Dimensions

Swipe/scroll to see all columns

	d300	d400	d500
Connection	1 ½"	1 ½"	1 ½"
D outside (mm)	300	400	500
Height A (mm)	650	790	920
Filter pump	Serie M (0.16 kW)	Serie M (0.16 kW)	Serie M (0.33 kW)
6-way valve	1 ½"	1 ½"	1 ½"
Art.Nr.	7300601	74432	74433

* (v = 50 m/h)

Dimensions filter Attersee

Filling quantities

Swipe/scroll to see all columns

	d400	d510	d620
Filter bed height (mm)	270	365	450
Nature Works* (kg)	25	50	70
Filter sand** (kg)	25	50	75

* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm

Scope of delivery

PE filter Attersee Premium
Smart filter pump Series M
Original Praher 6-way valve, 1 ½", top mount
Valve pipework set glued
Ocean screw connections 3 pcs.
Pre-assembled on PPGFK filter pallet

FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®

Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.

For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.

Our Aquastar® product range
