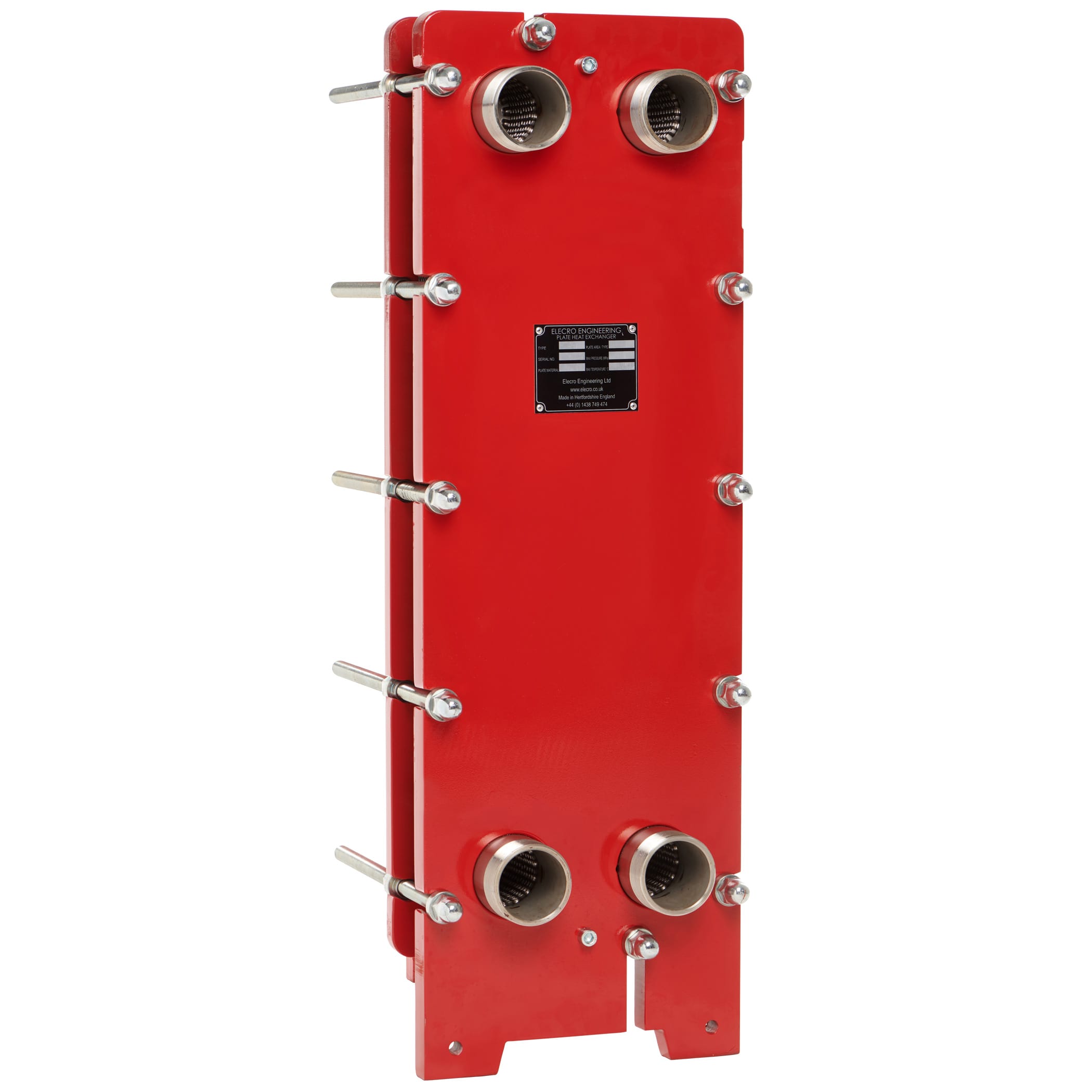

Titanium plate heat exchanger
- Heating & cooling
commercial pools
- Compact design
with low holding volume
- Easy cleaning
due to simple disassembly
- Salt electrolysis
suitable
Description
The plate heat exchanger is an affordable heat management system for heating and cooling commercial pools. Its high efficiency saves energy, reduces costs and minimises the environmental impact.
The compact design maximises the surface area of the heat exchanger without compromising its mechanical robustness. The plate heat exchanger is characterised by a high overall heat transfer coefficient and high performance with a low holding volume.
Product details
Process data (hot side)
Swipe/scroll to see all columns
| |
30 kW |
50 kW |
80 kW |
102 kW |
|---|
| Temp in (°C) | 90 | 90 | 90 | 90 |
| Temp out (°C) | 70 | 70 | 70 | 70 |
| Flow rate (m³/h) | 1.3 | 2.2 | 3.5 | 4.5 |
| Pressure drop (kPa) | 11.80 | 17.71 | 20.17 | 22.11 |
Process data (cold side)
| |
30 kW |
50 kW |
80 kW |
102 kW |
|---|
| Temp in (°C) | 20 | 20 | 20 | 20 |
| Temp out (°C) | 35 | 35 | 35 | 35 |
| Flow rate (m³/h) | 1.37 | 2.88 | 4.61 | 5.88 |
| Pressure drop (kPa) | 23.08 | 34.62 | 39.37 | 42.19 |
| Delta T Log. Mean (°C) | 52.46 | 52.46 | 52.46 | 52.46 |
| Heat exchanged (kW) | 30 | 50 | 80 | 102 |
Construction data
| |
30 kW |
50 kW |
80 kW |
102 kW |
|---|
| Heat transfer area (m²/h) | 0.240 | 0.336 | 0.528 | 0.624 |
| Overall K service (w/m² °C) | 2381.54 | 2835.17 | 2886.72 | 3114.33 |
| Plate thickness (mm) | 0.5 | 0.5 | 0.5 | 0.5 |
| Weight empty (kg) | 23.65 | 24.04 | 24.82 | 29.00 |
| Weight full (kg) | 24.26 | 24.85 | 26.04 | 31.00 |
| Art.-Nr. |
7301545 |
7301546 |
7301547 |
7301548 |
Features
- Plates: Titanium
- Frame: P335NH
- Gaskets: EPDM (max. 150° C)
- Hot side connections: stainless steel
- Cold side connections: stainless steel
- Bolts N8 M12: A193B7
- Temperature: -10/100° C
- Pressure: 10 Bar
- Test pressure: 14.3 Bar
- High overall heat transfer coefficient
- High performance with low hold-up volume
- Versatile, modular design
- Easy dismantling for rapid cleaning
- Suitable for salt electrolysis
- Connection: M G 1 1/4" AISI 304 thread
- Plate and seal materials available for most fluid types
Dimensions
| |
30 kW |
50 kW |
80 kW |
102 kW |
|---|
| A (Width) | 204 | 204 | 204 | 204 |
| B (Connection interaxis) | 86 | 86 | 86 | 86 |
| C (Height) | 490 | 490 | 490 | 490 |
| D (Connection interaxis) | 381 | 381 | 381 | 381 |
| H (Height connections) | 54.5 | 54.5 | 54.5 | 54.5 |
