Titanium electric heater, 9 kW, 400 V, 3P, IP44, with heating controller, temperature sensor and safety temperature limiter, suitable for salt electrolysis

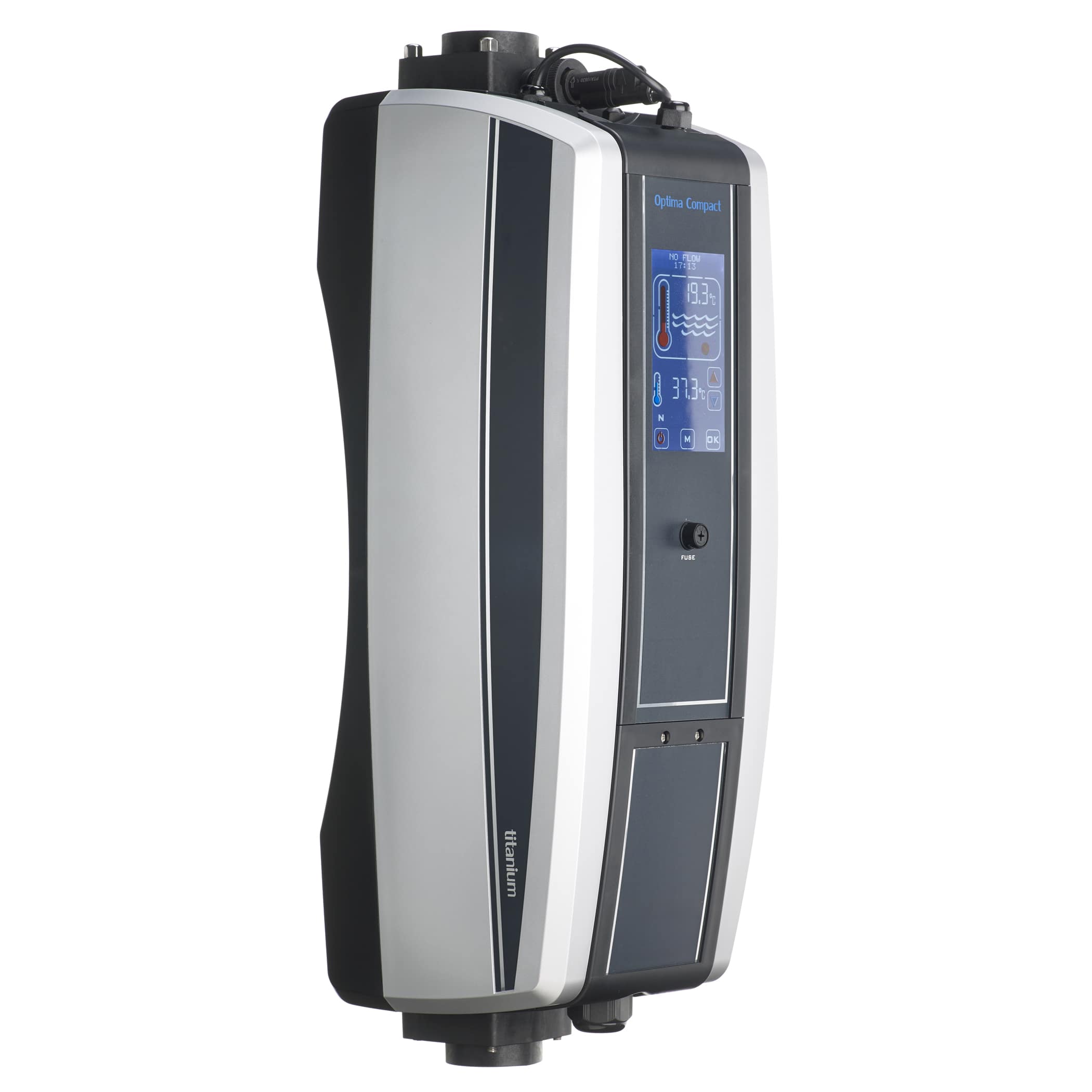

Titanium electric heater

• Titanium elements
  suitable for salt electrolysis
• Touch screen
  with backlight
• App control
  via TouchSmart app

Description

The Titanium electric pool heater is equipped with a heating controller, temperature sensor and safety temperature limiter. A reliable flow switch ensures safe operation. The titanium flow tube and titanium heating element(s) make the electric heater effective, robust, durable and suitable for salt electrolysis. The touchscreen control enables simple and user-friendly operation.

Ideal in combination with PV systems: in the event of an energy surplus, the energy is used for pool heating.

Suitable for pools and spas.

Product details

Technical data

Features

• Available in models 3/6/9/15 kW
• Robust, durable construction
• Silent operation
• Operating pressure: max. 4 bar
• Titanium flow tube and titanium heating element(s)
• Easy installation, fully equipped and pre-wired
• Highly reliable flow switch with gold tip and titanium pivot point
• Can be floor or vertically wall mounted
• Equipped with heating controller, temperature sensor and safety temperature limiter
• Touchscreen control with soft start to protect the power supply
• Vortex technology for long service life and clean heating elements
• 1 ½" BSP female thread with 50 mm stepped ABS connections for rigid pipes and stepped 1 ½" hose ends for flexible pipes
• Thermal safety cut-out: 60 °C (manual reset)
• Seals: High-temperature EPDM ferrules
• Protection class: IP44
• Suitable for salt electrolysis
• "Priority of heating" function
• Controllable via TouchSmart app
• Intelligent touchscreen display
• Ready for smart home integration
• 5 operating modes: Normal, Timer, Priority, Installation, Standby
• Programmable 24-hour clock (4 time zones)
• Flow and temperature sensor connections
• Precise control to 0.5°C
• Diagnostic display
• Multilingual user interface
• Flow switch and NTC temperature sensor included (cable length 1 m each)
