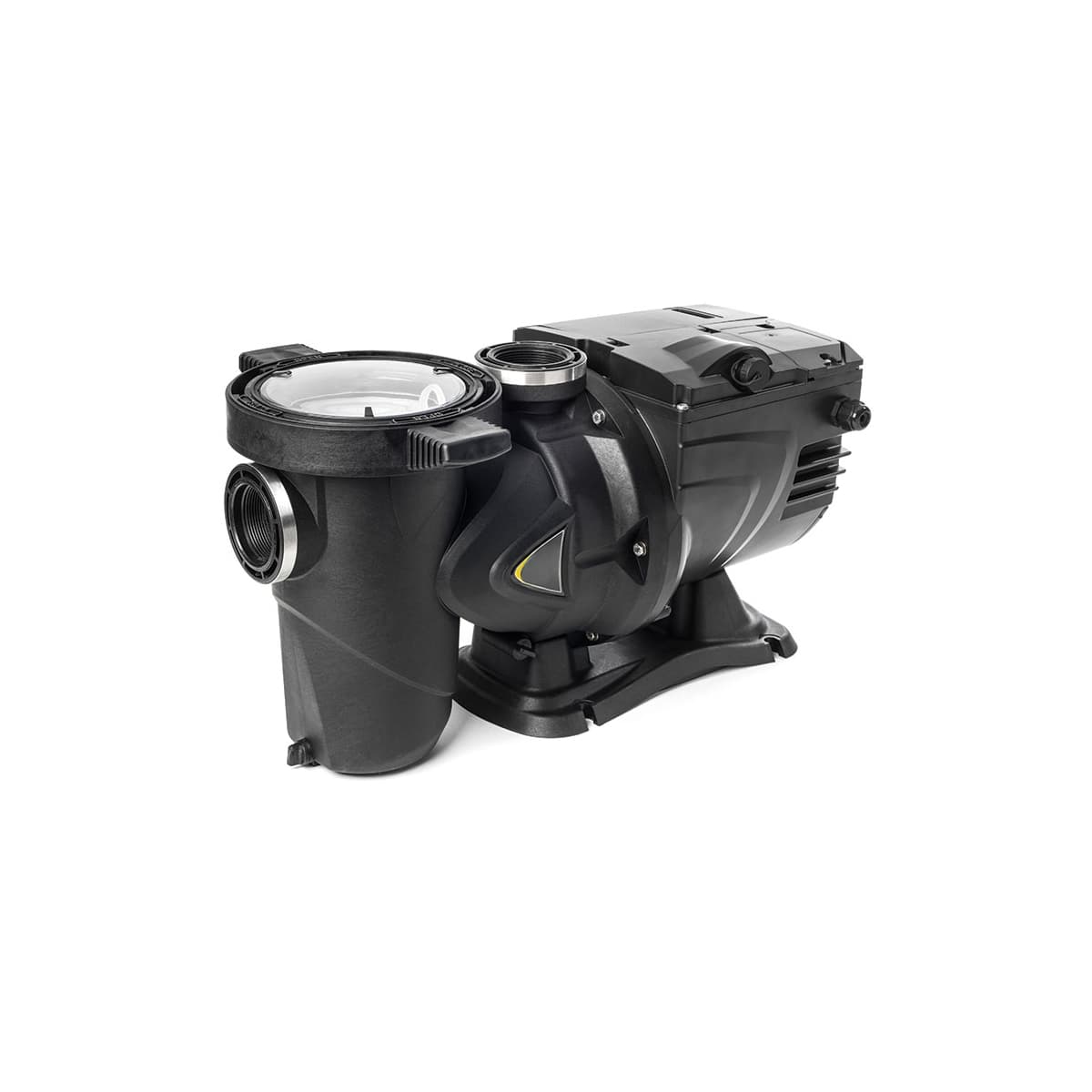

Smart pool pump E.Pro
- variable speed
via frequency converter
- LCD display
programmable menu
- water-cooled
extremly quiet
- 4 g/l
salt water resistant
Description
E.Pro is a particularly energy-efficient, electric, self-priming pool pump with a very large pre-filter.
The pump is equipped with a synchronous permanent magnet motor that is controlled by a frequency converter. Thanks to the frequency converter, the speed and therefore the flow rate can be adjusted to optimise performance and reduce energy consumption.
Four different outputs can be achieved with just one pump: 0.33 kW, 0.5 kW, 0.75 kW, 1.1 kW.
Product details
Swipe/scroll to see all columns
| |
E.Pro 150 |
E.Pro 300 |
|---|
| P1 (kW) | 1.25 | 2.25 |
| P2 rated power (kW) | 1.10 | 1.90 |
| P2 rated power (HP) | 1.50 | 2.60 |
| I max. (A) | 5.6 | 10 |
| Flow rate* (m³/h) | up to 23 m³/h | up to 37 m³/h |
| Phasen | single-phase | single-phase |
| Voltage 50/60 Hz (V) | 230 | 230 |
| Water Connection | 2" IT | 2" IT |
| Noise level (db) | < 50 | < 45 |
| Protection class | IPX5 | IPX5 |
| Efficiency class | IE3 | IE3 |
| Art.Nr. |
7300445 |
7300905 |
* at 10 m
Delivery head: Smart E.Pro 150
Delivery head: Smart E.Pro 300
Features
- 4 different outputs with just one pump: 0.33 kW, 0.5 kW, 0.75 kW, 1.1 kW
- Water-cooled, extremely quiet permanent magnet synchronous motor (no motor fan)
- Transparent lid with bayonet/twist closure
- High-resolution LCD display
- Die-cast aluminium housing with special coating to prevent oxidation
- Mechanical seal made of carbon/aluminia/NBR/AISI 316
- Impeller made of glass fibre reinforced plastic
- Support foot with rubber feet to reduce vibrations
- IPX5 protection class, reference standard: IEC - 60364, insulation class: F
- Control via 0 - 10 V or digital inputs
- Suitable for salt electrolysis (< 4 g/l)
- pH range: 6.5 - 8.4
- Water temperature max.: < 40 °C
- Ambient temperature max.: 50 °C
- Operating pressure max.: 2.5 bar
Dimensions
Swipe/scroll to see all columns
| |
A |
B |
C |
D |
E |
F |
G |
H |
H1 |
H2 |
I |
|---|
| E.Pro 150 | 550 | 242 | 245 | 259 | 266 | 220 | 150 | 351 | 217 | 309 | 11 |
| E.Pro 300 | 574 | 304 | 290 | 269 | 276 | 220 | 150 | 354 | 252 | 344 | 11 |
Also available ready to plug in
The Smart pool pump E.Pro 150 is also available in a plug-in version.
