Smart LED underwater pool light M5 12 V
- 17 cm
diameter
- VISION Moonlight
led light
- Mounting pot
generously sized
- Salt electrolysis
suitable
Description

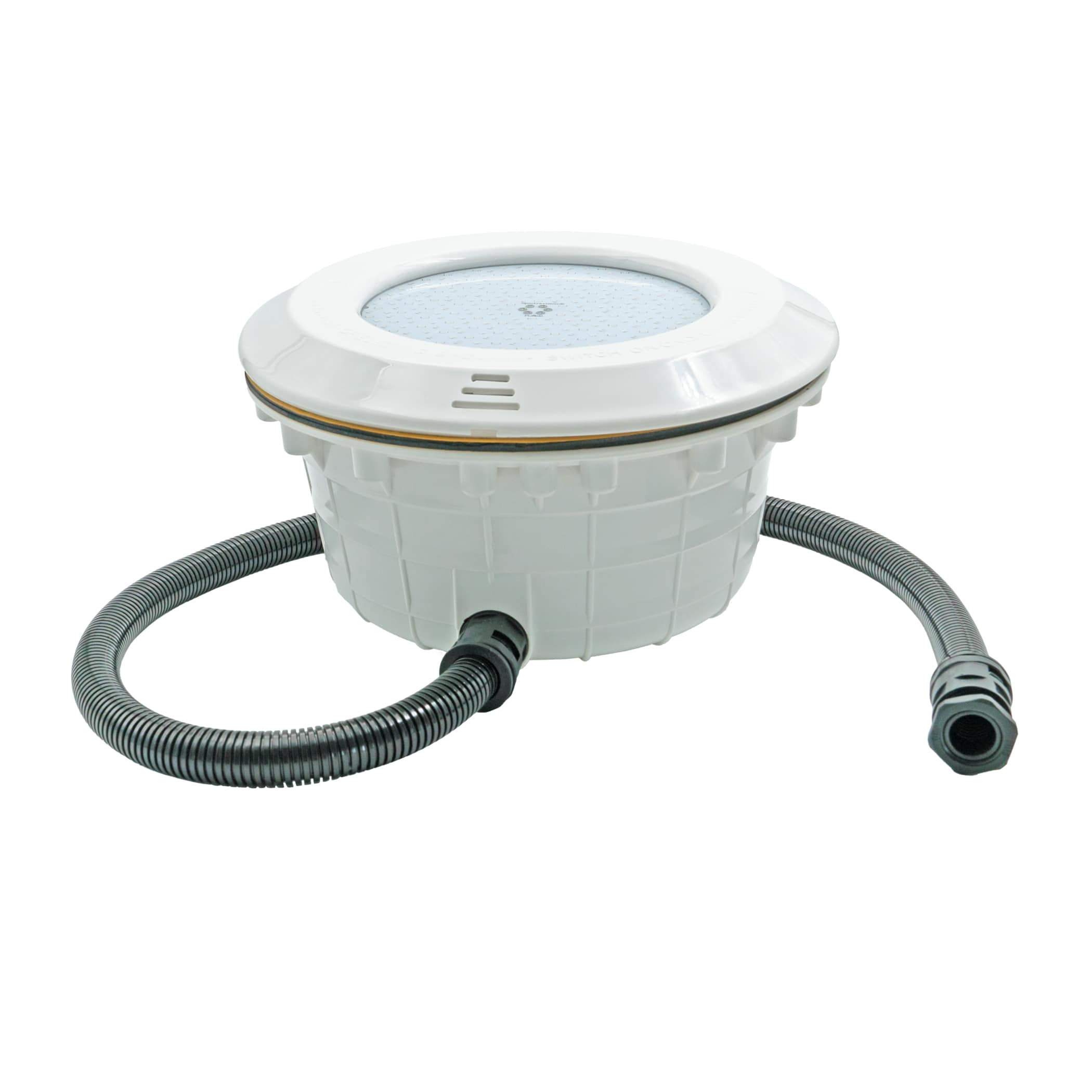

The Smart LED M5 12 V underwater spotlight was designed for use in liner pools and features a generously sized mounting pot for installation in the pool.
When using longer screws (not included), the spotlight can also be installed in poly, vinyl ester, or PP pools.
The system is available in White and RGB versions. The available models are VISION Moonlight White (2400 lm) and VISION Moonlight RGB (1550 lm) can be used.
Control is possible via a suitable transformer or compatible control solutions with a remote control.
Product details
Technical data
Swipe/scroll to see all columns
| |
WHITE |
RGB |
|---|
| Color | white | RGB |
| Nominal color temp. (K) | 9000 | - |
| Power (W) | 23 | 23 |
| Lumens (lm) | 2400 | 1550 |
| Diameter (mm) | 170 | 170 |
| Beam angle (°) | 120 | 120 |
| VA transformer (VA) | 30 | 30 |
| Voltage (V AC) | 12 | 12 |
| Max. water temp. (°C) | +40 | +40 |
| Art.-Nr. |
7301400 |
7301401 |
Features
- Suitable for liner pools
- LED underwater spotlight with 23 W power consumption
- Generously sized mounting pot
- ABS housing
- Brass bushings
- 360° rotatable socket
- Suitable for applications with salt electrolysis
- Operates on 12 VAC
- Can be controlled via compatible switching and remote control systems
- 4 m connection cable included
- Includes flange set
- RGB version with 16 preset color programs
Color programs
| |
RGB lamps |
|
| 1 | Sun White | Warm white |
| 2 | Red | Fixed color red |
| 3 | Green | Fixed color green |
| 4 | Blue | Fixed color blue |
| 5 | Green-Blue | Fixed color green-blue |
| 6 | Red-Green | Fixed color red-green |
| 7 | Blue-Red | Fixed color blue-red |
| 8 | Evening Sea | Slow animation red-blue |
| 9 | Evening River | Slow animation red-green |
| 10 | Riviera | Slow animation green-blue |
| 11 | Neutral White | Cold white |
| 12 | Rainbow | Slow animation blue-red-green |
| 13 | River of Colors | Program 12, followed by program 15 |
| 14 | Disco | Fast animation |
| 15 | Four Seasons | Slow animation red-blue-green-violet |
| 16 | Party | Fast animation |
Versions
| Product |
Art. Nr. |
|---|
| Smart LED underwater pool light M5 12 V white, 2400 lm, 23 W, d 170 mm | 7301400 |
| Smart LED underwater pool light M5 12 V RGB, 1550 lm, 23 W, d 170 mm | 7301401 |
Scope of delivery
- Smart M5 12 V underwater spotlight
- Flange set for liner pools
- 4 m connection cable
Suitable control units
Our recommendation
Control unit with transformer
For OFF/ON and color setting functions. Built-in 200 VA transformer. Includes 1 hand-held transmitter.
More infos
Control unit without transformer
For OFF/ON and color setting functions. Includes 1 hand-held transmitter.
More infos
Alternate control options
Transformer TORO DIN 150 W
Toroidal transformer. Model for DIN rail mounting.
More infos
Transformer TORO IP64 150 W
Toroidal transformer. Model for wall mounting with IP64 housing.
More infos
