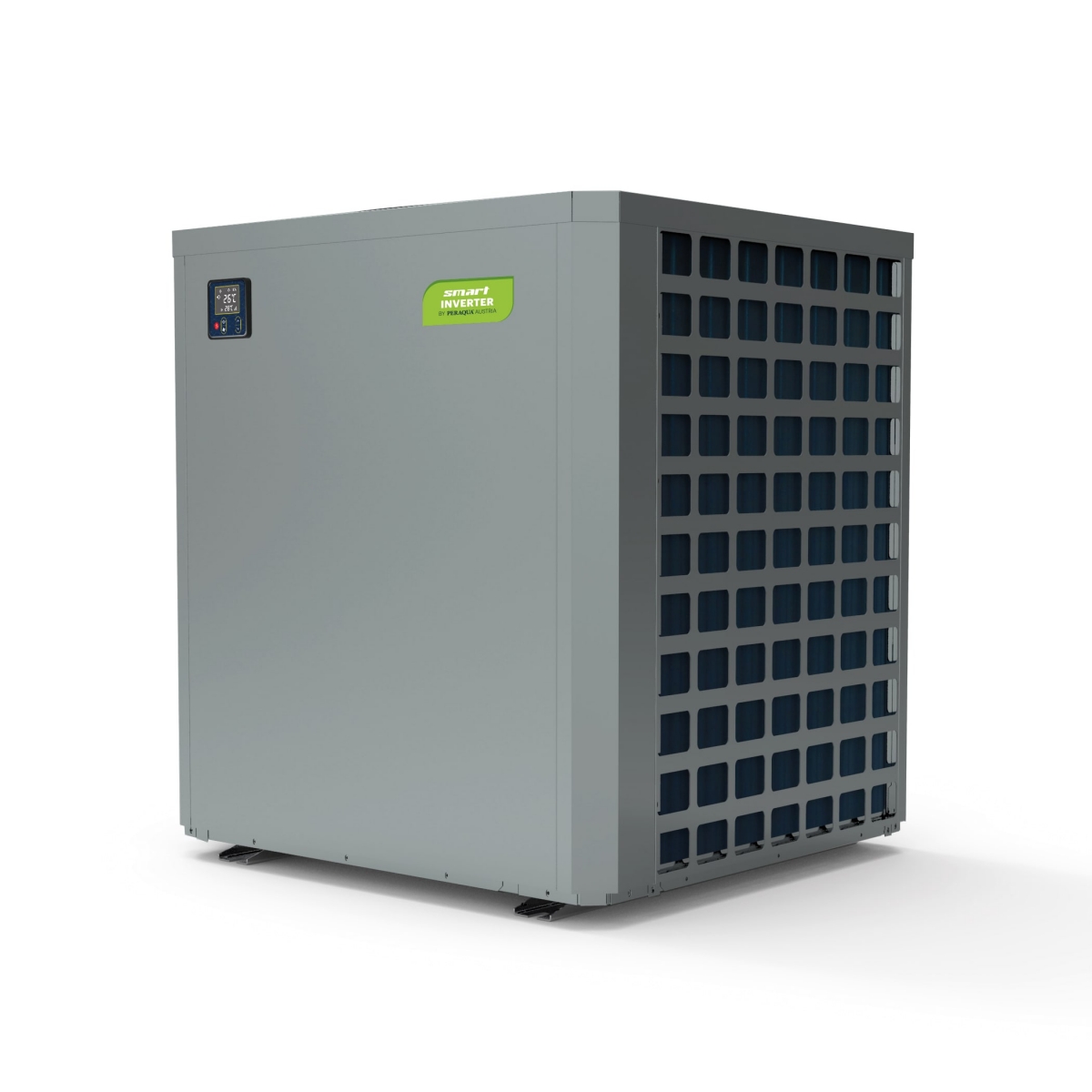

Smart inverter heat pump Plus, Vertical
- Discharge direction
vertical - Variable speed
inverter technology - Touch control
with WLAN connection
Description
Heat pump with vertical discharge for projects where the required minimum horizontal discharge distance cannot be maintained.
The pool water can be kept at a pleasant temperature using the heating and cooling function.
The integrated boost function can achieve up to 20 % higher heating output (compared to normal operation).
Product details
Performance conditions: air 26°C, water 26°C, humidity 80%
| 17,0 kW | 21,9 kW | |
|---|---|---|
| Heating capacity (kW) | 17.0 | 21.9 |
| Heating capacity (kW) Boost mode | 20.4 | 26.3 |
| C.O.P in Boost mode | 5.9 | 5.8 |
| C.O.P | 14.3 - 6.7 | 14.0 - 6.3 |
| C.O.P at 50% speed | 11.1 | 10.9 |
Performance conditions: air 15°C, water 26°C, humidity 70%
| 17,0 kW | 21,9 kW | |
|---|---|---|
| Heating capacity (kW) | 12.5 | 16.0 |
| Heating capacity (kW) Boost mode | 15.0 | 19.0 |
| C.O.P in Boost mode | 4.5 | 4.4 |
| C.O.P | 7.1 - 4.8 | 7.1 - 4.7 |
| C.O.P at 50% speed | 6.4 | 6.2 |
Performance conditions: air 35°C, water 28°C, humidity 70%
| 17,0 kW | 21,9 kW | |
|---|---|---|
| Cooling capacity (kW) | 8.4 | 11.2 |
Technical data
| 17,0 kW | 21,9 kW | |
|---|---|---|
| Advised pool volume (m³) | 40 - 75 | 50 - 95 |
| Working air temperature (°C) | -7 - 43* | -7 - 43* |
| Sound pressure 1 m dB(A) | 43.3 - 53.9 | 41.0 - 54.4 |
| Sound pressure 50 % capacity 1 m dB(A) | 46.5 | 46.6 |
| Heat exchanger | Titan | Titan |
| Housing | Aluminium | Aluminium |
| Phases | 1 | 1 |
| Power supply 50 Hz (V) | 230 | 230 |
| Rated input power at air 15 °C (kW) | 0.42 - 3.19 | 0.55 - 4.32 |
| Rated input current at air 15 °C (A) | 1.83 - 13.9 | 2.40 - 18.8 |
| Advised water flux (m³/h) | 6.5 - 8.5 | 8.0 - 10.0 |
| Water pipe in-out spec (mm) | 50 | 50 |
| Net dimension L x W x H (mm) | 776 x 687 x 656 | 776 x 687 x 755 |
| Net weight (kg) | 72 | 88 |
| Gas (g) | 1200 | 2000 |
| GWP | 675 | 675 |
| CO₂ equivalent (t) | 0.81 | 1.35 |
| Art.-Nr. | 7300725 | 7300726 |
* Efficient and optimum operation is only recommended above freezing point (0 C°). The specified values apply under ideal conditions: Pool is covered with an isothermal cover, filter system runs at least 15 hours a day, minor deviations in the technical specifications are possible depending on the system and subject to technical changes.
Features
- Vertical discharge
- Heating and cooling
- Fan motor with variable speed
- Soft start function
- Painted aluminum housing
- Grey
- Refrigerant: R32
- Boost mode for maximum performance
- With the power-off memory function, the appliance settings are retained even after a power failure
- The titanium heat exchanger is suitable for use in swimming pools with salt electrolysis systems
- Defrost function using efficient automatic hot gas defrosting
- Automatic flow detection thanks to integrated flow switch
- Pump can be controlled directly from the device
- Extensive diagnostic functions and parameter menu
- WLAN-capable for user-friendly control via mobile devices
Positioning the heat pump
During installation, ensure that the specified minimum distances are observed.
