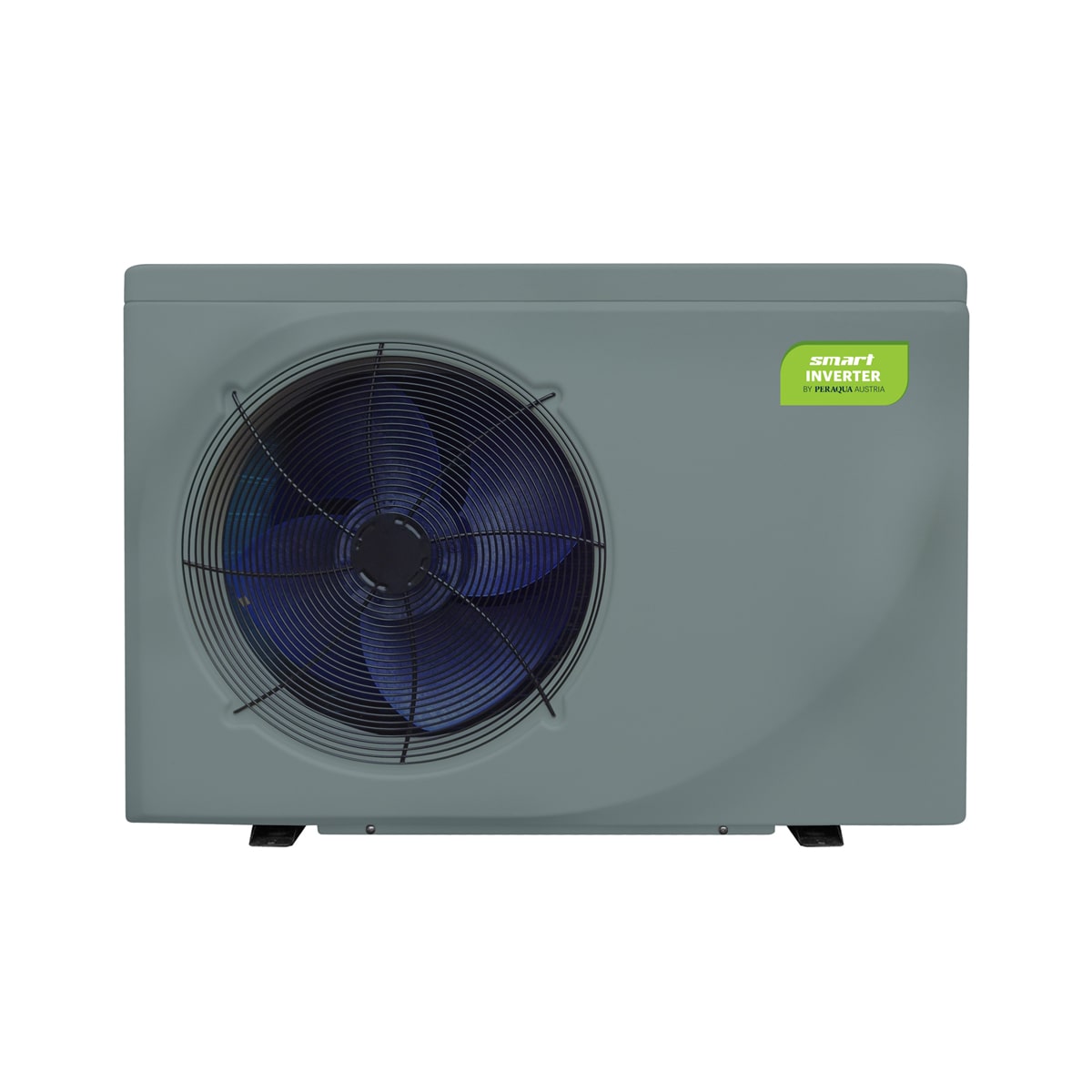

Smart full inverter heat pump Plus, 20.4 kW

Product code:

Please login to see the price.

The dispatch takes place within 5 working days.

Description
Downloads

Smart full inverter heat pump Plus, 20.4 kW

Variable speed
inverter technology
Modbus RTU capable
for smart home integration
Touch control
with WLAN connection
ABS
housing

Description

By using the very quiet Mitsubishi inverter compressor and the variable fan speed system, the inverter pump guarantees 10 × quieter operation than conventional heat pumps (while maintaining the pool temperature).

The pool water can be kept at a pleasant temperature using the heating and cooling function. The infinitely variable speed of the Smart full inverter heat pump allows the compressor output to be perfectly adapted to the ambient conditions.

The Modbus RTU capable heat pump allows integration into smart control electronics and smart home systems such as iQnnect.

The heat pump can be controlled automatically via the "Inverter Life" app. More information about the Inverter Life app

Product details

Performance conditions: air 26°C, water 26°C, humidity 80%

Swipe/scroll to see all columns

	20.4 kW
Heating capacity (kW)	20.4
C.O.P	14.5 - 5.7
C.O.P at 50% speed	10.2

Performance conditions: air 15°C, water 26°C, humidity 70%

	20.4 kW
Heating capacity (kW)	14.0
C.O.P	7.4 - 4.2
C.O.P at 50% speed	6.1

Performance conditions: air 35°C, water 28°C, humidity 80%

	20.4 kW
Cooling capacity (kW)	9.8

Technical data

	20.4 kW
Advised pool volume (m³)	50 - 95
Working air temperature (°C)	-7 - 43*
Sound pressure 1 m dB(A)	40.9 - 54.2
Sound pressure 10 m dB(A)	20.9 - 34.2
Sound pressure 50 % capacity 1 m dB(A)	46.4
Compressor	Mitsubishi DC Inverter
Heat exchanger	Titanium
Housing	ABS
Phases	1
Power supply 50 Hz (V)	230
Rated input power at air 15 °C (kW)	0.38 - 3.30
Rated input current at air 15 °C (A)	1.65 - 14.30
Advised water flux (m³/h)	8 - 10
Water pipe in-out spec (mm)	50
Net dimension L x W x H (mm)	961 x 420 x 758
Net weight (kg)	68
Gas (g)	1200
GWP	675
CO₂ equivalent (t)	0.810
Art.-Nr.	7300717

* Efficient and optimum operation is only recommended above freezing point (0 C°). The specified values apply under ideal conditions: Pool is covered with an isothermal cover, filter system runs at least 15 hours a day, minor deviations in the technical specifications are possible depending on the system and subject to technical changes.

Features

Heating and cooling
Can be controlled via the "Inverter Life" app
Particularly quiet
Fan motor with variable speed
Soft start function
ABS housing
Grey, RAL 7012
Refrigerant: R32
The infinitely variable speed-controlled compressor enables modulating operation
Smart mode for intelligent operation
Silence mode to reduce operating noise
With the power-off memory function, the appliance settings are retained even after a power failure
The titanium heat exchanger is suitable for use in swimming pools with salt electrolysis systems
Defrost function using efficient automatic hot gas defrosting
Automatic flow detection thanks to integrated flow switch
Pump can be controlled directly from the device
Extensive diagnostic functions and parameter menu
Modbus RTU capable for integration into smart home systems (iQnnect)
WLAN-capable for user-friendly control via mobile devices

Product note

Winter cover and vibration absorber included.
