Salt electrolysis system TOUCH EVO PLUS

Salt electrolysis system TOUCH EVO PLUS

• 15 - 35 g Cl/h
  models available
• MODBUS-RTU
  interface
• 4 relays
  for signal control
• iQnnect
  App control possible

Description

The TOUCH EVO PLUS salt electrolysis system was developed for water disinfection in private pools. The chlorine needed for disinfection is generated directly from the salt dissolved in the pool water.

During the electrolysis process, free chlorine (HClO) is produced, which helps disinfect the water. The system automatically controls chlorine production and ensures consistent water treatment during pool operation.

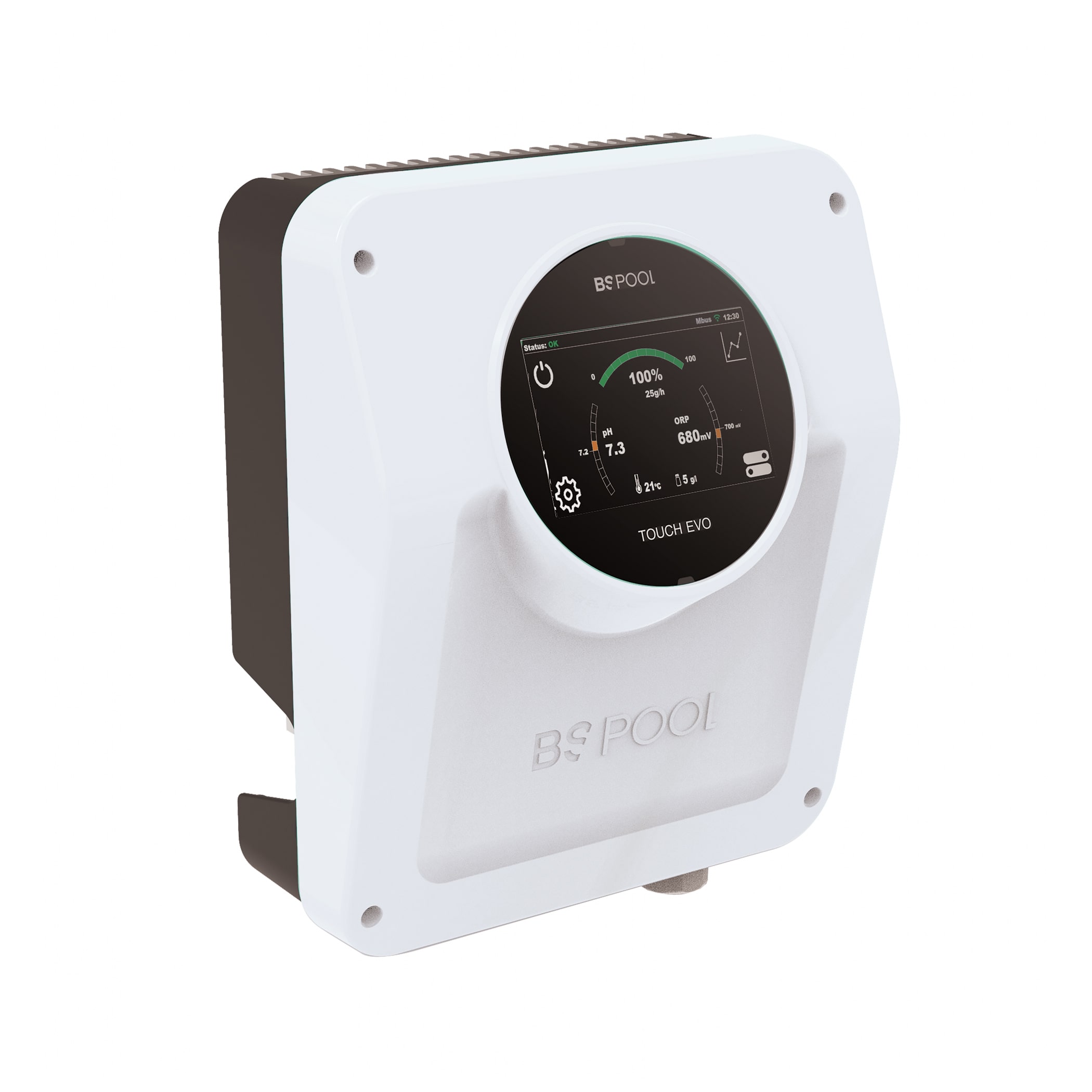

The devices in the TOUCH EVO series feature a TFT touchscreen that allows all functions to be displayed and configured.

A salt concentration of at least 4 kg/m³ is recommended for chlorine production. To compensate for typical salt losses due to backwashing or water replenishment, a concentration of 5 kg/m³ is recommended.

The series is available in various capacity levels ranging from 15 to 35 g Cl/h and is suitable for use in private pools.

Product details

Technical data

Features

• Bipolar electrolysis cell
• TFT color touchscreen with lock function
• MODBUS-RTU interface
• iQnnect connectivity available
• Data logging function
• Automatic backwash control
• Heat pump control
• Four programmable relays for signal control
• Automatic shutdown in case of no water flow
• Flow sensor included
• Automatic voltage adjustment based on salt concentration and temperature
• Automatic electrode cleaning cycle
• Automatic resumption of operation after a power outage
• 3-year warranty on the electrolysis unit
• 2-year warranty on the cell

Versions
