Description

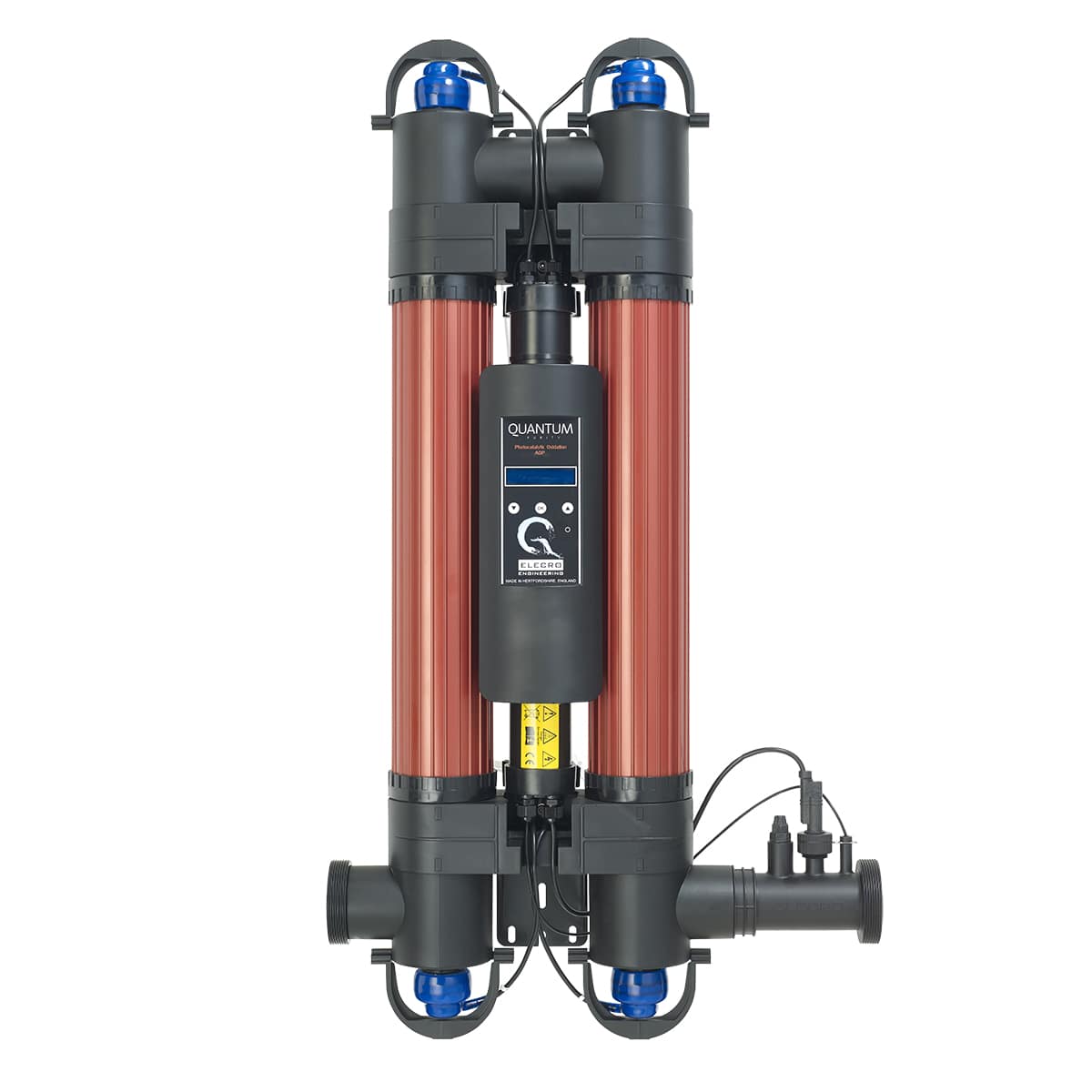

Quantum® is a water treatment system for swimming pools that combines photocatalytic processes with UV technology.
Photocatalytic processes facilitate additional oxidation reactions that can help break down certain organic compounds in the water. These include, for example, residues from sunscreen products, biofilm, or urea. The actual effect depends on water quality, operating conditions, and system configuration.
Product details
- Combination of photocatalytic, hydroxyl radical, and UV technology
- Supports water treatment through additional oxidation processes
- Suitable for freshwater and saltwater pool systems
- Integrated flow monitor
- Indicator light for lamp replacement
Technical data
- Voltage: 220–240 V, 50–60 Hz
- Max. operating pressure: 3 bar
- Max. flow rate (single-tube): 12 m³/h
- Lamp power: 55 W
- Pool size: up to 65 m³
- Max. flow rate (double-tube): 24 m³/h
- Pool size (two-pipe): up to 130 m³
- Protection rating: IP55
- Water connections: 2"/63 mm ABS glue-on fitting, including reducer
