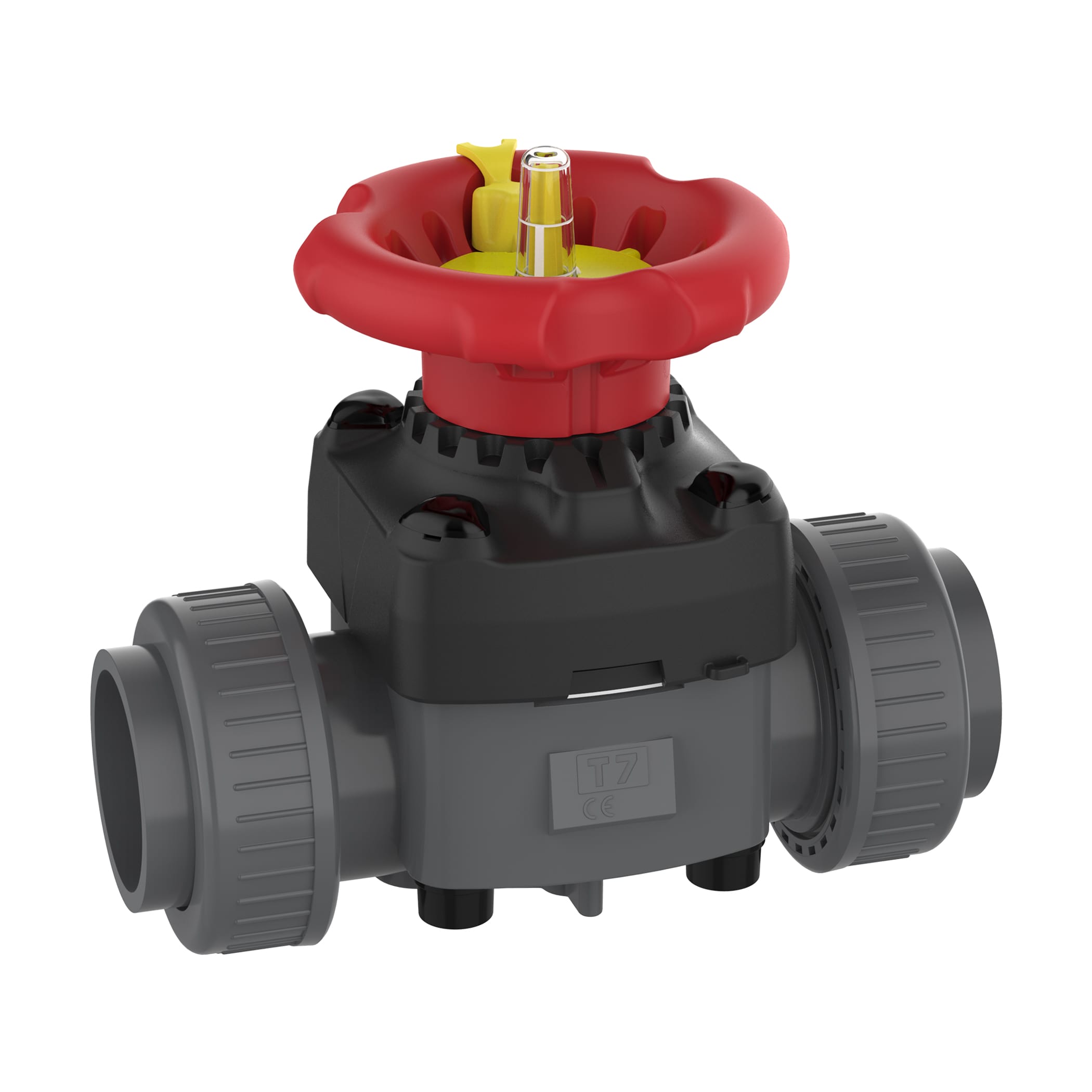

Praher Plastics diaphragm valve T7, solvent sockets, FPM diaphragm

Diaphragm valve T7, solvent sockets, FPM diaphragm

• Greater safety
  due to higher PN
• Position indicator
  shows valve opening status
• Complete drainage
  due to special body geometry
• Locking handwheel
  protects against misuse

Description

The Praher Plastics diaphragm valve T7 is characterised by its remarkable service life and outstanding ease of servicing.

The new housing shape allows liquids to drain away completely. The handwheel is ergonomically shaped, non-slip and equipped with a lockable catch. An end stop prevents the valve from sticking if it is open for a longer period. The T7 has a torque limiter to prevent the valve from being overtightened.

Product details

Properties

• Torque limiter
• Silicone-free
• Zero dead leg valve
• Visual position indication
• Limit Stop prevents the valve against sticking, when it is open for a longer period
• Ergonomic safety handwheel with locking positions
• Suitable for viscosity or solid content applications
• Suitable for slurries and abrasive media
• Fixed and sunken nuts
• Optimized diaphragm contour
• Various connection variants
• Self-outlet marking
• Praher Labeling System
• Pollution repellent design
• Easy maintenance bayonet connection
• Floating pressure body

Technical data

Torque

Flow - Pressure drop

Pressure-Temperature diagram

Flow characteristics

Note: The values of the pressure-temperature diagram are based on a service life of 25 years at static pressure load with water at 20°C

Dimensions

PVC-U solvent socket metric / ASTM / JIS via Union (Dimensions in mm)

* on request

Versions
