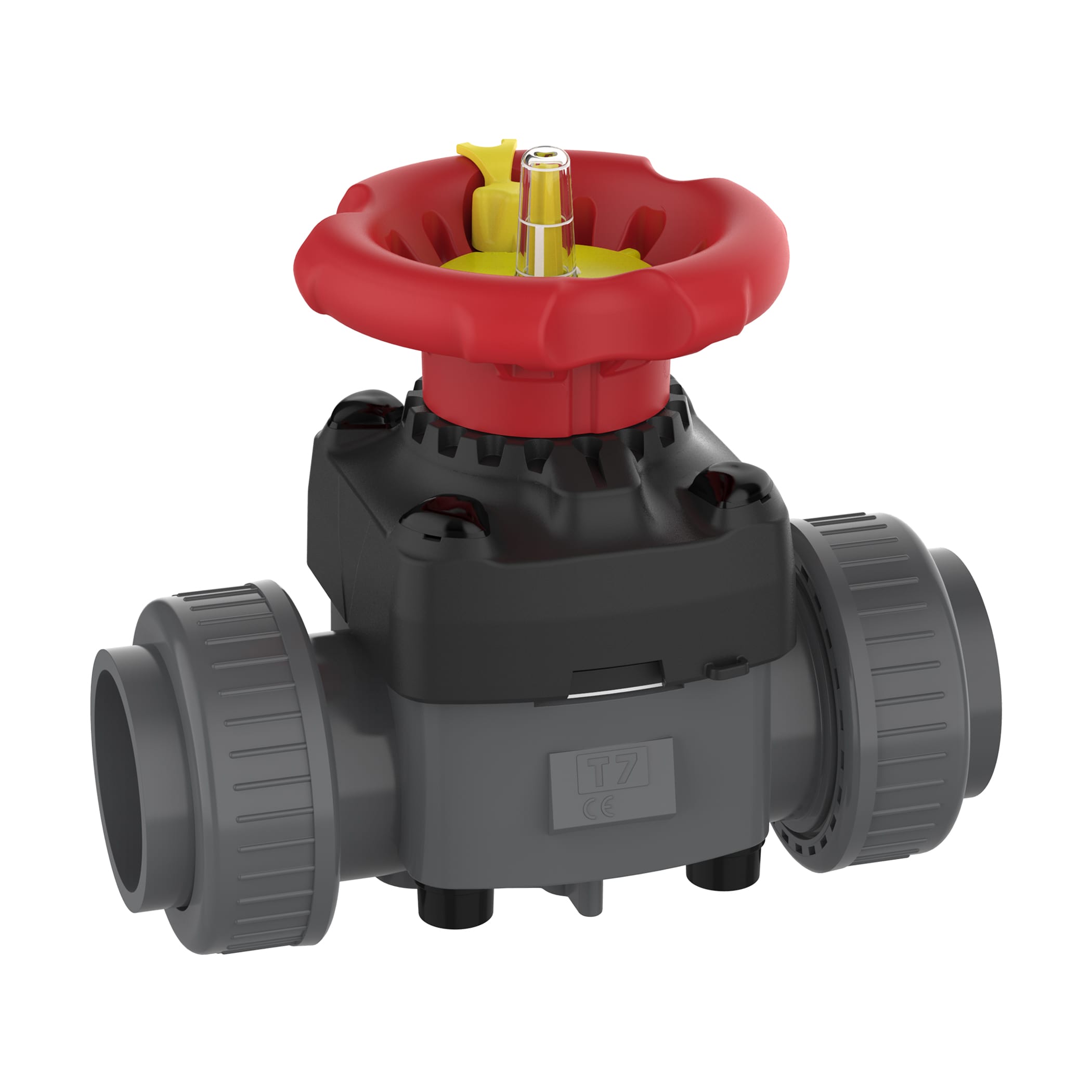

Praher Plastics diaphragm valve T7, solvent sockets, EPDM diaphragm

Diaphragm valve T7, solvent sockets, EPDM diaphragm

• PN12.5
  pressure rate
• Position indicator
  shows valve opening status
• Housing geometry
  facilitates fluid drainage
• Locking handwheel
  protects against misuse

Description

The Praher Plastics T7 diaphragm valve is a manually operated diaphragm valve designed for industrial applications and use in piping systems. Its design facilitates easy maintenance and operation.

The body geometry is designed for efficient fluid drainage. The handwheel features a slip-resistant design and is equipped with a lockable latch. An end stop prevents the valve from seizing in the fully open position. Additionally, an integrated torque limiter protects against over-tightening of the valve.

Product details

Properties

• Torque limiter
• Silicone-free version
• Dead-space-free design
• Visual position indicator
• End Stop for Valve Actuation
• Suitable for media containing solids and abrasive media according to product design
• Handwheel with locking positions
• Applications for high-viscosity media
• Fixed and sunken nuts
• Specially designed diaphragm contour
• Various connection options
• Self-draining indicator
• Praher Labeling System
• Design to reduce dirt buildup
• Bayonet connection for maintenance
• Floating pressure chamber

Technical data

Torque

Flow - Pressure drop

Pressure-Temperature diagram

Flow characteristics

Note: The values of the pressure-temperature diagram are based on a service life of 25 years at static pressure load with water at 20°C

Dimensions

PVC-U solvent socket metric / ASTM / JIS via Union (Dimensions in mm)

* on request

Versions
