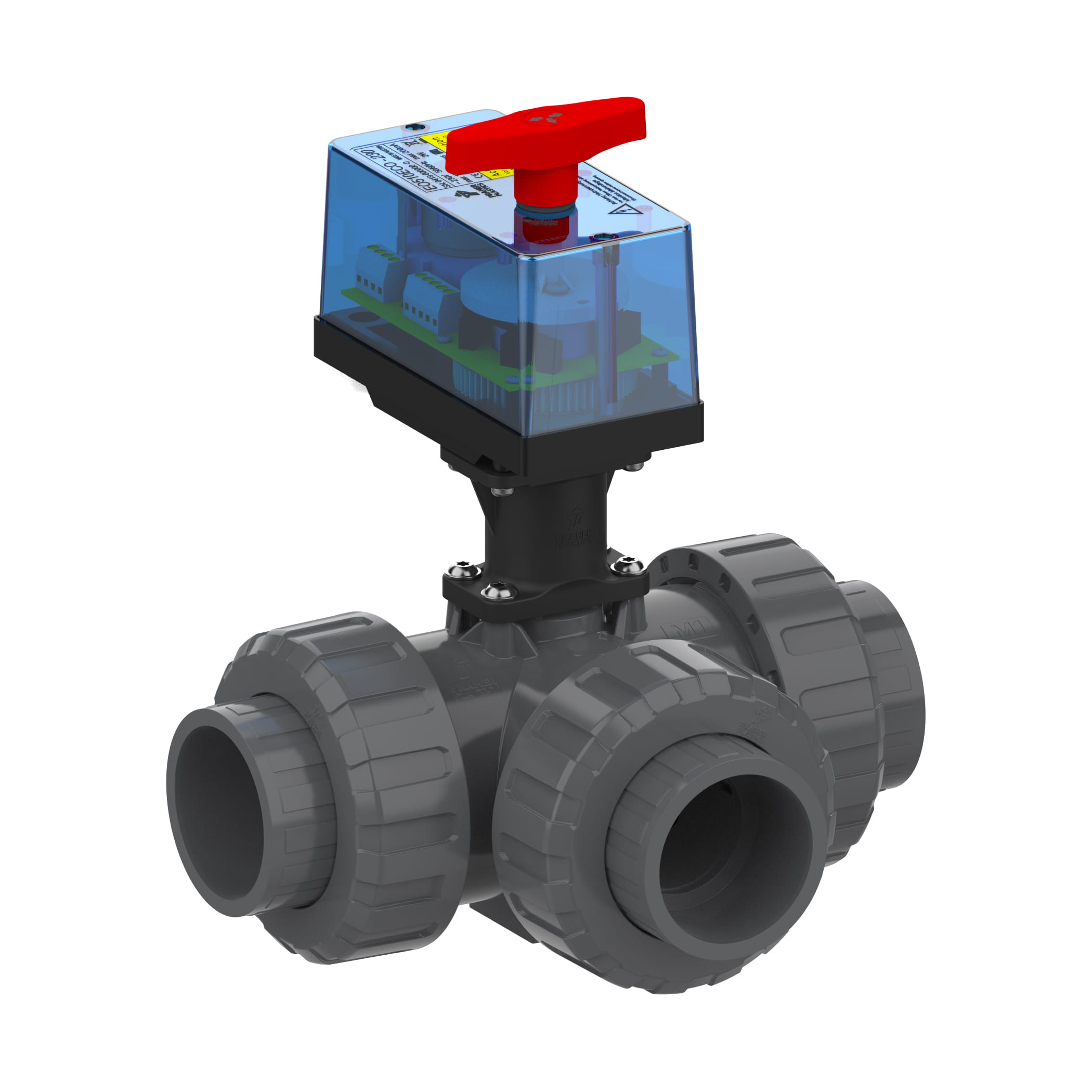

3-Way Ball Valve M1 Solar with solvent socket ends metric
- M1
series
- EO510
actuator
- Pressure ring
with pressure compensation system
- Radial
installation & removal
Description
The M1 Solar 3-way ball valve with T-ball from Praher Plastics is a modular valve designed for applications in swimming pool technology, water treatment, and process engineering. This model is equipped with an EO510 ECO-230 actuator with position indication.
To assist with pressure compensation during switching, the ball valve is equipped with an integrated pressure compensation system. For this purpose, one of the three pressure rings is provided with a pressure compensation bore.
This valve is specifically designed for use in solar thermal pool heating systems (e.g., heating via solar panels). The T-ball valve allows for the configuration of different flow paths according to the requirements of the respective system.
The ball valve can be combined with pool solar absorber systems and pool solar controls and can be integrated into corresponding pool solar systems.
The True-Union fittings with union nuts allow the valve to be removed without having to cut the connected pipes. This facilitates removal for maintenance and service work.
Product details
| |
3-way ball valve M1 Solar |
|---|
| Ball type: | T-Bore |
| Housing material: | PVCu |
| O-rings: | EPDM |
| Ball seat ring: | TPE |
| Dimensions: | DN40 / d50 / 1½" - DN50 / d63 / 2" |
| Pressure rate: | PN3 |
| Connection: | solvent socket end PVCu metric |
| Color: | Grey |
| Manufacturer: | Praher Plastics |
| |
Electric actuator EO510 |
|---|
| Type: | EO510 ECO-230 |
| Nominal torque: | 7 Nm |
| Peak torque: | 9 Nm |
| Protection: | IP65 |
| Voltage: | 230V AC ±10 % |
| Frequency range: | 50 / 60 Hz |
| Power consumption: | 4 W / 8 W max. |
| Duty cycle: | 60 % / max. 20 min |
| Max. switching cycles: | 5000 |
| Positions: | 2 positions in 180° |
| Altitude: | Until 2000 m |
| Ambient temperature: | -10°C to +60°C |
| Storage temperature: | -20°C to +70°C |
| Overvoltage category: | II |
| Degree of soiling: | 2 |
| Installation position: | Upright (handle pointing upwards), do not use outdoors |
| Weight: | 0.7 kg |
| Position indicator: | Optically (manual override handle) |
| Manual override: | Integrated |
| Color: | Blue |
Features
- Electric actuator EO510 ECO-230 with position indicator
- Pressure compensation system
- Modular design for accessory expansion
- Buttress thread for secure positioning of the union nut
- Integrated domes for adapter sets
- Integrated bracket for fix point mounting
- Silicon-free design
- TPE-seat with O-ring
- Double sealed shaft
- Radial installation and removal
Technical data

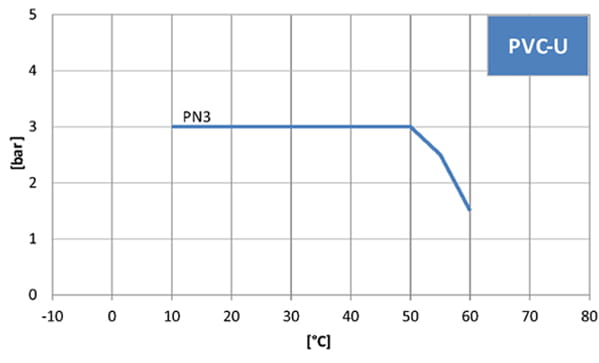

Pressure - temperature - diagram

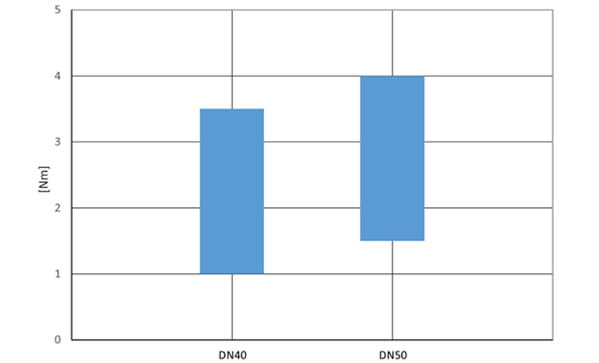

Torque at the shaft
Note: The values of the pressure-temperature-diagram are based on a service life of 25 years at static pressure load and apply to water or water-like media.

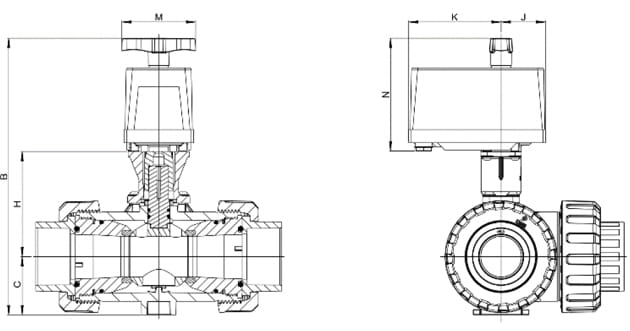

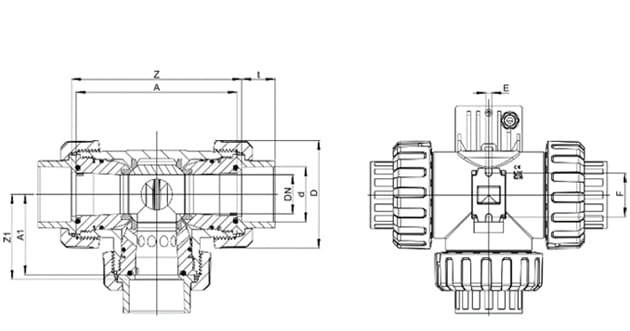

Dimensions
PVCu solvent socket ends metric / ASTM (Dimensions in mm)
Swipe/scroll to see all columns
DN
d
Zoll |
40
50
1 1/2" |
50
63
2" |
| A | 160 | 185 |
| C | 56.5 | 64.5 |
| D | 106 | 124.2 |
| E | 6.4 | 6.4 |
| F | 45 | 50 |
| H | 109 | 116.5 |
| t | 31.9 | 38.4 |
| Z | 168 | 195.8 |
| A1 | 80 | 92.5 |
| Z1 | 84 | 97.9 |
| PN | 3.5 | 3.5 |
Swipe/scroll to see all columns
| Actuator |
EO510 ECO/IND |
| B | 291 | 306.4 |
| J | 49.5 | 49.5 |
| K | 102.5 | 102.5 |
| M | 81.9 | 81.9 |
| N | 125 | 125 |
Versions
| Product |
Art. Nr. |
|---|
| DN40, solvent socket ends d50 metric with union nut, T-ball, PN3, grey | 514426 |
| DN50, solvent socket ends d63 metric with union nut, T-ball, PN3, grey | 514427 |
Compliance
The M1 3-Way Solar Ball Valve complies with the EC Pressure Equipment Directive 2014/68/EU and UK Regulation 2016 No. 1105 (UKCA).
Note
The fact that the valve is not completely leak-tight throughout the flow path is due to the pressure compensation system incorporated into its design and does not constitute a manufacturing defect or malfunction.
The key features of the M1 in detail
Modular design
Can be expanded from manual operation to an automated solution without replacing the base valve. Suitable for system designs that may require future expansions or modifications.
Prepared for automation
The design of the M1 3-way ball valve is optimized for easy installation of actuator components.
A dome and a mounting base are integrated into the valve body. This allows the valve to be prepared for retrofitting with electric or pneumatic actuators. Retrofitting is also possible while the valve is installed. A suitable adapter set is required for this.
A clamping element is available as an option for fixed-point mounting. For flange connections on flat surfaces, a spacer facilitates positioning and installation.
Buttress thread
A buttress thread helps ensure a secure fit for the union nut and is designed for applications subject to vibration.
Left-hand thread on the pressure rings
The left-hand thread on the pressure rings reduces the risk of accidental rotation when installing the union nut and helps position the ball.
Safety handle with labeling plate
The safety handle ensures safe operation and maintenance. The correspondence between the handle and ball positions, integrated locking lugs, and a tool for removing the pressure rings make handling easier.
A form-fit connection to the shaft ensures proper installation. Custom label plates provide additional clarity.
T-ball for clear switching functions
Simultaneous connection of three lines: The T-bore can hydraulically connect two or three connections, allowing media to be distributed or mixed without additional fittings.
Robust & chemical-resistant
The M1 3-way ball valve features:
- Corrosion-resistant materials
- Resistance to suitable chlorine and water treatment media in accordance with material properties
- Unrestricted flow
- Low operating torque
The double-sealed shaft and TPE seat rings ensure reliable sealing during normal operation.
View Chemical Resistance Guide
Easy to service
Can be installed and removed radially.
