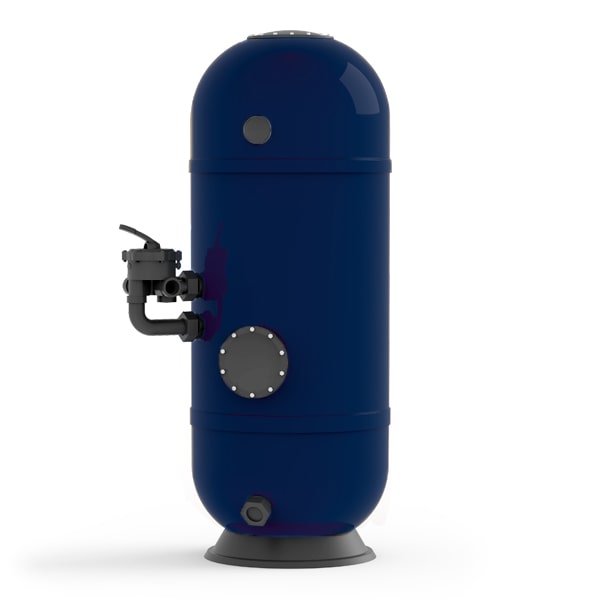

Polyester high-layer filter Leoben 2, 1.2 m filter bed, filter star, including 6-way valve

Polyester high-layer filter Leoben 2, 1.2 m filter bed, filter star, including 6-way valve

• 1.2 m
  filter bed height
• 0 - 1.6 bar
  operating pressure
• d220 mm
  inspection glass
• 6-way valve
  inkludiert

Description

Side mount filter with reinforced fibreglass filter container. With filter star, side opening and inspection glass. UV-resistant. Black, easy-to-open flange cover. The filter bed height is 1.2 metres. Suitable for public pools.

2-year guarantee on filter housing tightness.

Product details

• Including original Praher 6-way valve, 2", black
• Filter bed height 1.2 m
• Filter star
• PPGF flange cover, easy to open
• Pipework set included
• Including pressure gauge
• With side opening and inspection glass
• Max. operating pressure: 2 bar
• Max. working temperature: 40 °C
• Reinforced fibreglass filter bowl
• UV-resistant
• Side mount
• Swivelling filter arm for easier filling of the filter with filter medium
• Drain tap for emptying water and sand
• Integrated ventilation to prevent air bubbles in the filter
• Filter container in RAL5011 steel blue
• 2-year guarantee on filter housing tightness

Dimensions

	d620	d750	d900
Connection	2"	2"	2"
D outside B (mm)	620	750	900
Height A (mm)	1845	1845	1845
C (mm)	728	728	728
D (mm)	868	868	868
E (mm)	1200	1200	1200
Filtration area (m²)	0.30	0.44	0.64
Flow rate 30 (m³/h)*	9.4	13.8	19.9
Flow rate 40 (m³/h)**	12.0	17.9	25.8
Art.Nr.	7300512	7300513	7300514

* (v = 30 m/h) | ** (v = 40 m/h)

High-layer filter Leoben 2

Filling quantities
