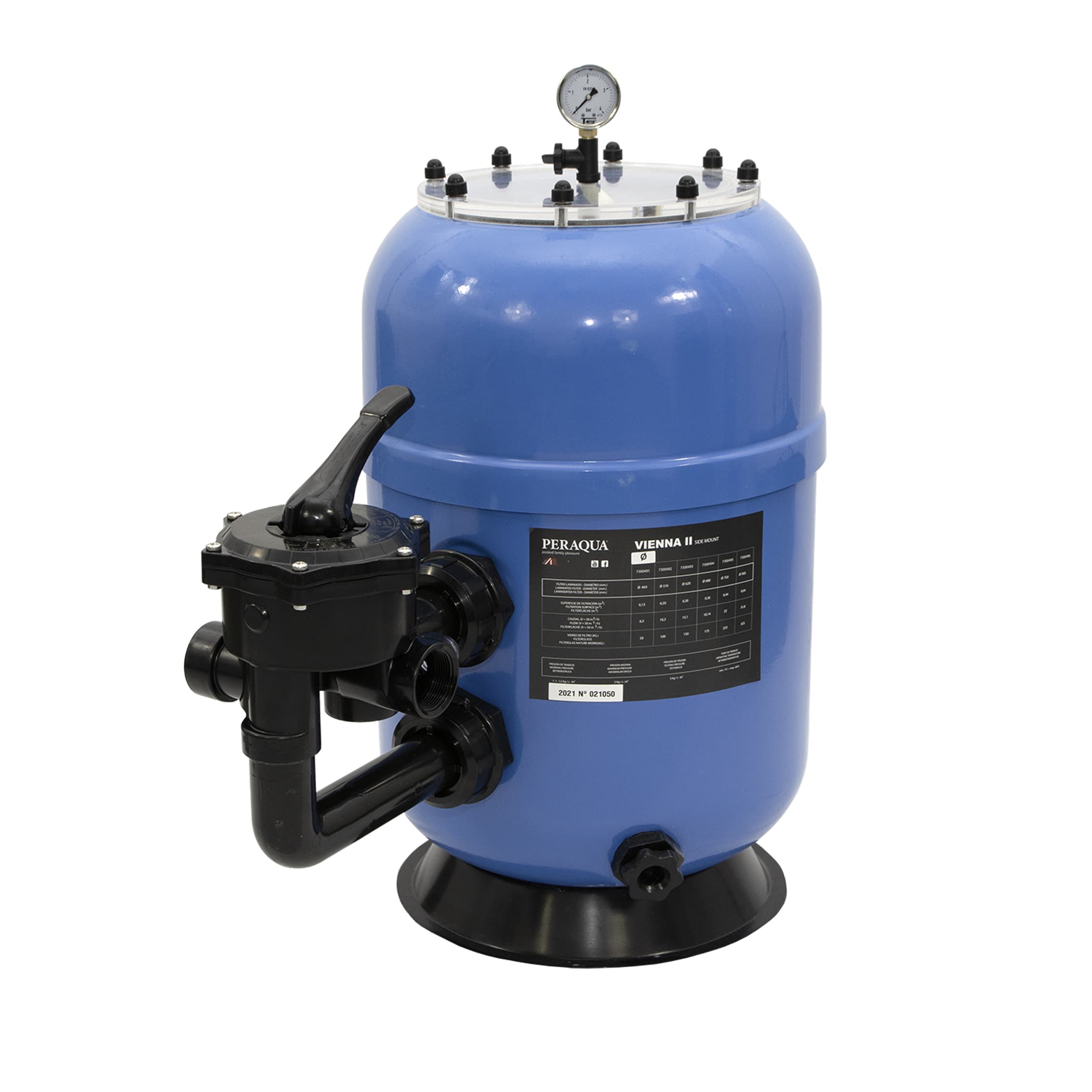

Polyester filter Vienna 2, side mount, including 6-way valve
- 2,5 bar
operating pressure - Flange cover
transparent, 8 screws - Pressure gauge
included - 6-way valve
included
Description
Laminated side mount polyester filter for private pools with reinforced fiberglass filter container. A swivel filter arm and integrated ventilation to prevent air bubbles in the filter ensure easy maintenance and operation.
2-year guarantee on filter container.
Product details
Features
- Including original Praher 6-way SM backwash valve, 1 ½" or 2" (from d680)
- Including piping set
- Transparent flange cover
- Including pressure gauge
- Max. operating pressure: 2.5 bar
- Test pressure: 3.7 bar
- Reinforced fiberglass filter container
- Integrated ventilation
- Swivel filter arm
- UV-resistant
- Laminated
- Side mount
- Filter container in RAL5015 blue
- 2 year guarantee on filter housing tightness
Dimensions
| d400 | d510 | d620 | d750 | d900 | |
|---|---|---|---|---|---|
| Connection | 1 ½" | 1 ½" | 1 ½" | 2" | 2" |
| D outside (mm) | 400 | 510 | 620 | 750 | 900 |
| Height A (mm) | 675 | 790 | 860 | 1020 | 1020 |
| B (mm) | 400 | 510 | 620 | 750 | 900 |
| C (mm) | 250 | 350 | 400 | 455 | 455 |
| D (mm) | 375 | 475 | 525 | 580 | 580 |
| Filtration area (m²) | 0.13 | 0.20 | 0.30 | 0.44 | 0.64 |
| Flow rate (m³/h*) | 7 | 10 | 15 | 22 | 32 |
| Art.Nr. | 7301455 | 7301456 | 7301457 | 7301488 | 7301489 |
* (v = 50 m/h)
Polyester filter Vienna 2 SM
Filling quantities
| d400 | d510 | d620 | d750 | d900 | |
|---|---|---|---|---|---|
| Filter bed height (mm) | 375 | 475 | 525 | 580 | 580 |
| Nature Works (kg)* | 42 | 85 | 191 | 297 | |
| Filter sand (kg)** | 70 | 100 | 225 | 350 |
* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm
Product note
Drain set and laboratory ball valve for venting the pressure gauge not included in the scope of delivery.
Suitable drain set: Drainage including drain valve with hose connection for polyester filter Vienna 2 (7300853)
FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®
Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.
For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
