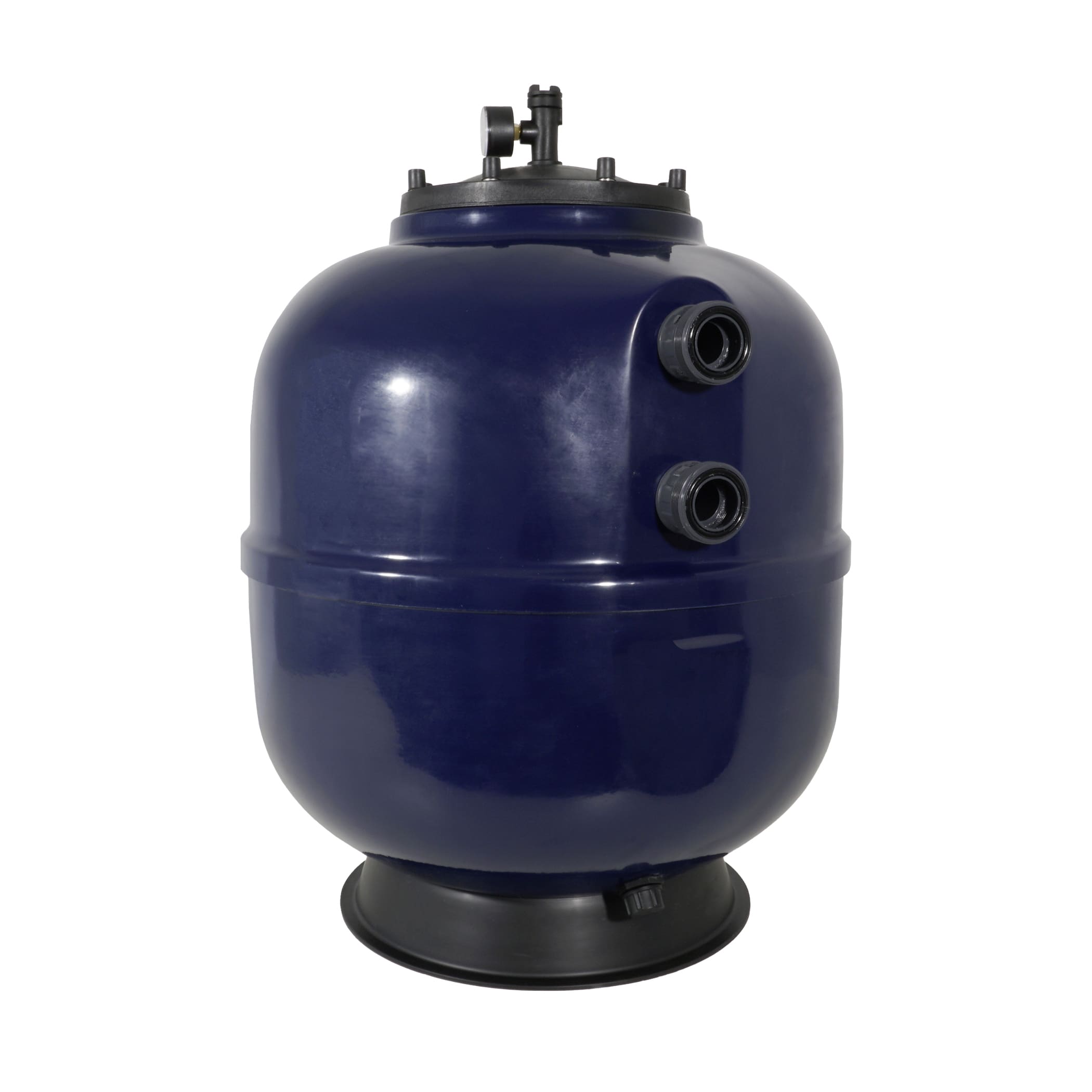

Polyester filter Linz, side mount
- DIN EN 16713
compliant - 2 bar
operating pressure - d300 mm
black lid
Description
Laminated side mount filter for private pools made of glass fibre reinforced plastic. Handmade to ensure maximum chemical and mechanical resistance. The built-in parts are made of PP, ABS and PVC. All screws used are made of high-strength, corrosion-resistant INOX (stainless steel), nuts are made of nickel-plated brass. Supplied with vent valve and pressure gauge. Black flange cover (d300 mm).
5-year guarantee on filter container.
Product details
- DIN EN 16713 compliant
- Black flange cover (d300 mm)
- Supplied with vent valve and pressure gauge (scale up to 4 bar)
- Max. operating pressure: 2 bar
- Side mount
- Laminated
- Filter container in RAL5011 steel blue
- 5-year guarantee on filter container.
Dimensions
| d500 | d610 (1 ½") | d610 (2") | d765 | d920 | |
|---|---|---|---|---|---|
| Connection | 1 ½" | 1 ½" | 2" | 2" | 2" |
| D inside (mm) | 480 | 590 | 640 | 740 | 900 |
| D outside (mm) | 510 | 620 | 620 | 770 | 920 | Height (mm) | 630 | 735 | 735 | 760 | 940 |
| Filtration area (m²) | 0.18 | 0.27 | 0.27 | 0.43 | 0.64 |
| Flow rate (m³/h)* | 9.1 | 13.7 | 13.7 | 21.5 | 31.9 |
| Lid D (mm) | 300 | 300 | 300 | 300 | 300 |
| Art.Nr. | 7301594 | 7301595 | 7301596 | 7301597 | 7301598 |
* (v = 50 m/h)
Polyester Filter Linz
Filling quantities
| d500 | d610 (1 ½") | d610 (2") | d765 | d920 | |
|---|---|---|---|---|---|
| Filter bed height (mm) | 400 | 400 | 400 | 400 | 400 |
| Nature Works (kg)* | 84 | 147 | 147 | 210 | 315 |
| Filter sand (kg) | 100 | 175 | 175 | 250 | 375 |
* Filter glass
Product notes
Matching PraherPlastics 6-way valve:
| Connection 1 ½" (d500, d610) | 131471 |
| Connection 2" (d610, d765, d990) | 131472 |
FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®
Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.
For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
