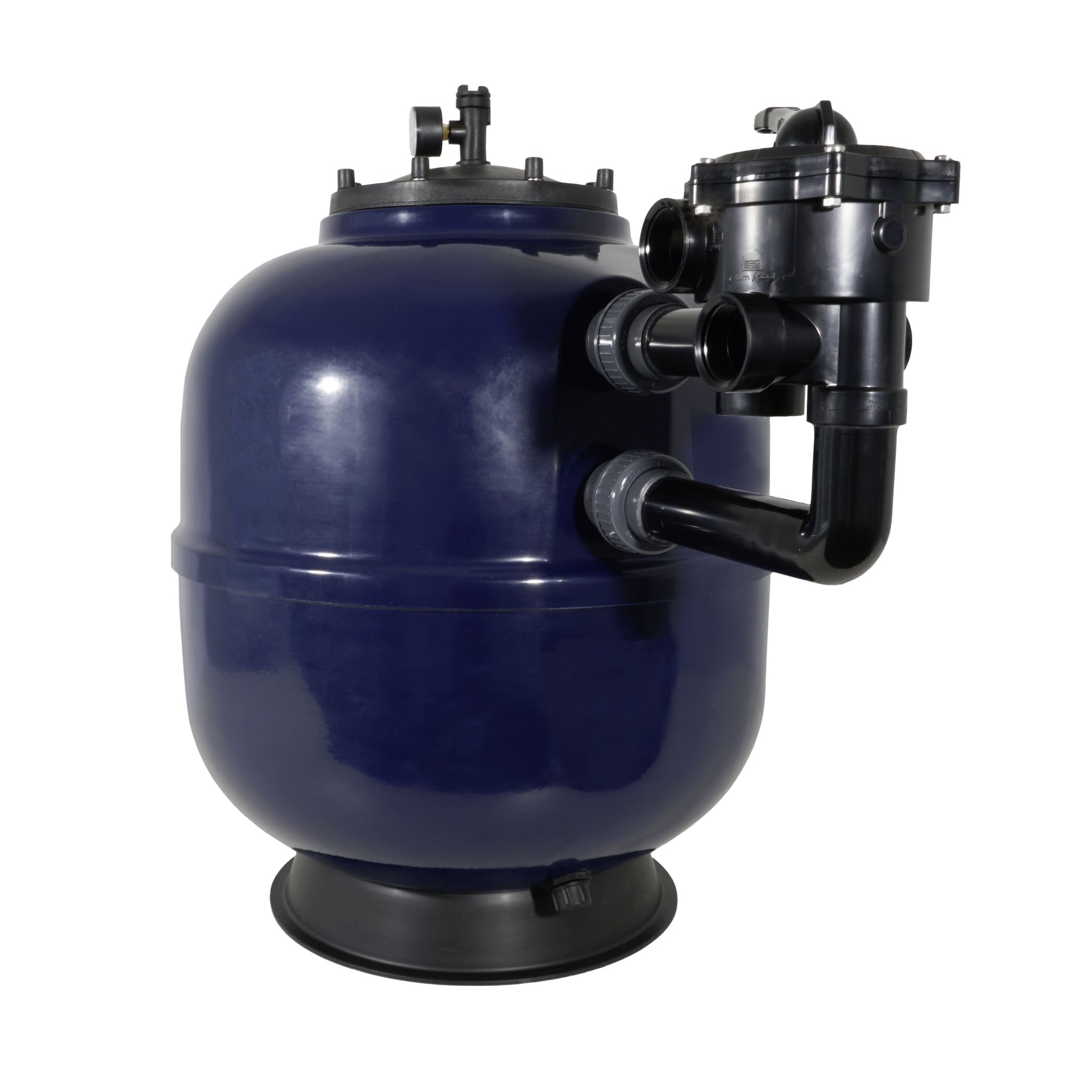

Polyester filter Linz, d500, incl. original Praher 6-way valve 1 ½" in black, side mount, black flange cover, RAL5011 steel blue

Polyester filter Linz, side mount, including 6-way valve

• DIN EN 16713
  compliant
• 2 bar
  operating pressure
• d300 mm
  black lid
• 6-way valve
  included

Description

Laminated side mount filter for private pools made of glass fibre reinforced plastic. Handmade to ensure maximum chemical and mechanical resistance. The built-in parts are made of PP, ABS and PVC. All screws used are made of high-strength, corrosion-resistant INOX (stainless steel), nuts are made of nickel-plated brass. Supplied with vent valve and pressure gauge. Black flange cover (d300 mm).

5-year guarantee on filter container.

Product details

• Including original Praher 6-way valve, 1 ½" or 2", black
• DIN EN 16713 compliant
• Black flange cover (d300 mm)
• Supplied with vent valve and pressure gauge (scale up to 4 bar)
• Max. operating pressure: 2 bar
• Side mount
• Laminated
• Filter container in RAL5011 steel blue
• 5-year guarantee on filter container.

Dimensions

	d500	d610 (1 ½")	d610 (2")	d765	d920
Connection	1 ½"	1 ½"	2"	2"	2"
D inside (mm)	480	590	640	740	900
D outside (mm)	510	620	620	770	920
Height (mm)	630	735	735	760	940
Filtration area (m²)	0.18	0.27	0.27	0.43	0.64
Flow rate (m³/h)*	9.1	13.7	13.7	21.5	31.9
Lid D (mm)	300	300	300	300	300
Art.Nr.	7301603	7301604	7301605	7301606	7301607

* (v = 50 m/h)
