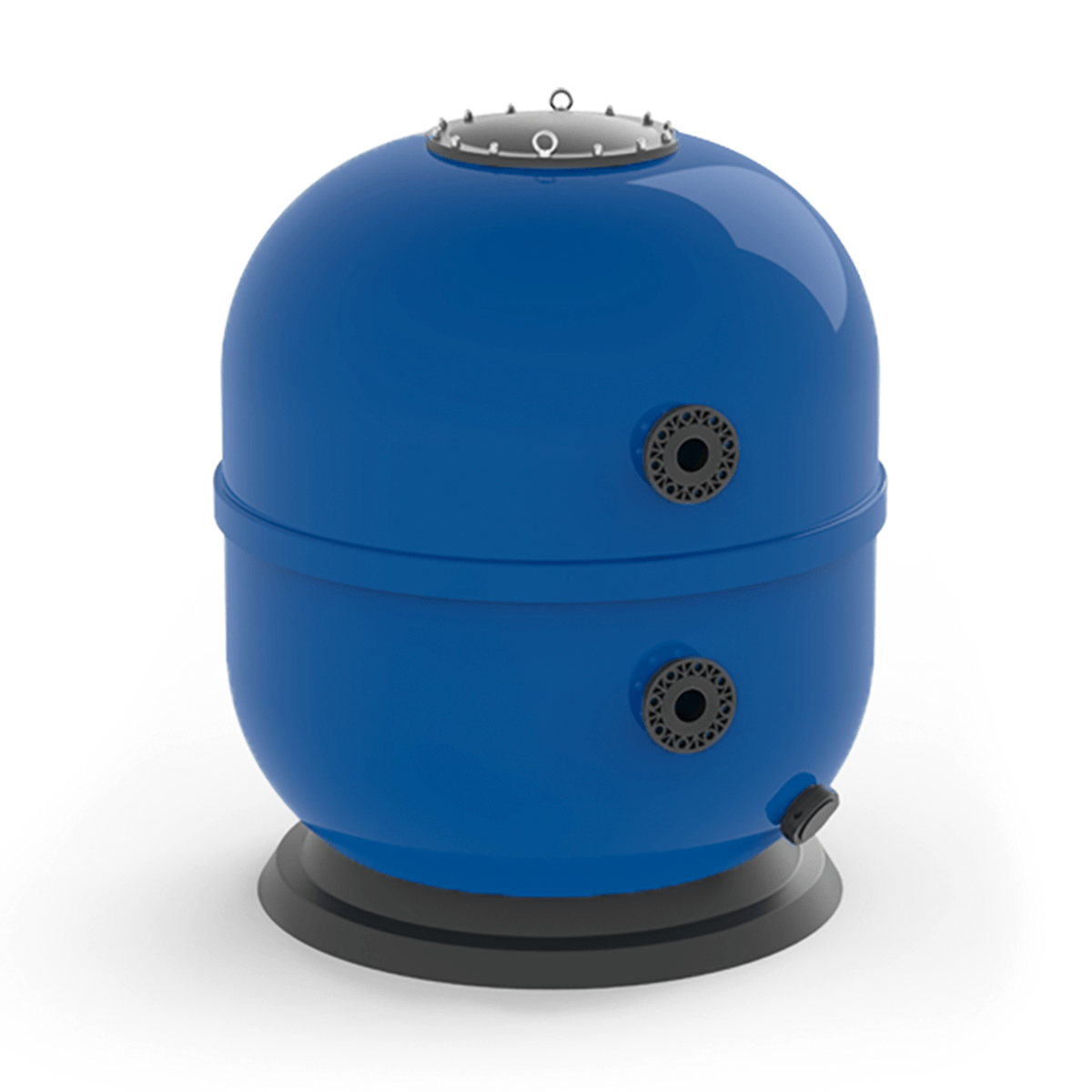

Polyester filter, filter star, laminated

Polyester filter, filter star, laminated

• d400 mm
  flange cover
• 0 - 2 bar
  operating pressure
• 1 m
  filter bed height
• pressure relief valve
  included

Description

Commercial side mount filter with laminated, glass fibre reinforced filter container. UV-resistant. Large flange cover (d400 mm). The filter bed height is 1.0 m. Supplied with pressure relief valve as standard. Suitable for large private and public pools.

Product details

• Flange connections
• Filter bed height 1.0 m
• Filter star
• Large GRP flange cover (d400 mm)
• Pressure relief valve included
• Including drain set (d75), 1" plug
• Max. operating pressure: 2 bar
• Max. operating temperature: 40 °C
• Glass fibre reinforced filter container
• Laminated
• UV-resistant
• Side mount
• Filter container in blue

Dimensions

	d1050	d1200	d1400	d1600	d1800	d2000
Connection (DN)	D90	D90	D110	D125	D140	D160
D outside B (mm)	1050	1200	1400	1600	1800	2000
Height A (mm)	1755	1755	1755	1755	1980	1980
C (mm)	685	685	685	685	700	700
D (mm)	520	520	520	520	720	720
Filtration area (m²)	0.87	1.13	1.54	2.01	2.54	3.14
Flow rate (m³/h)*	43	56	77	100	125	157
Art.Nr.	7300546	7300547	7300548	7300549	7300550	7300551

* (v = 30 m/h)

Polyester filter laminated

Filling quantities
