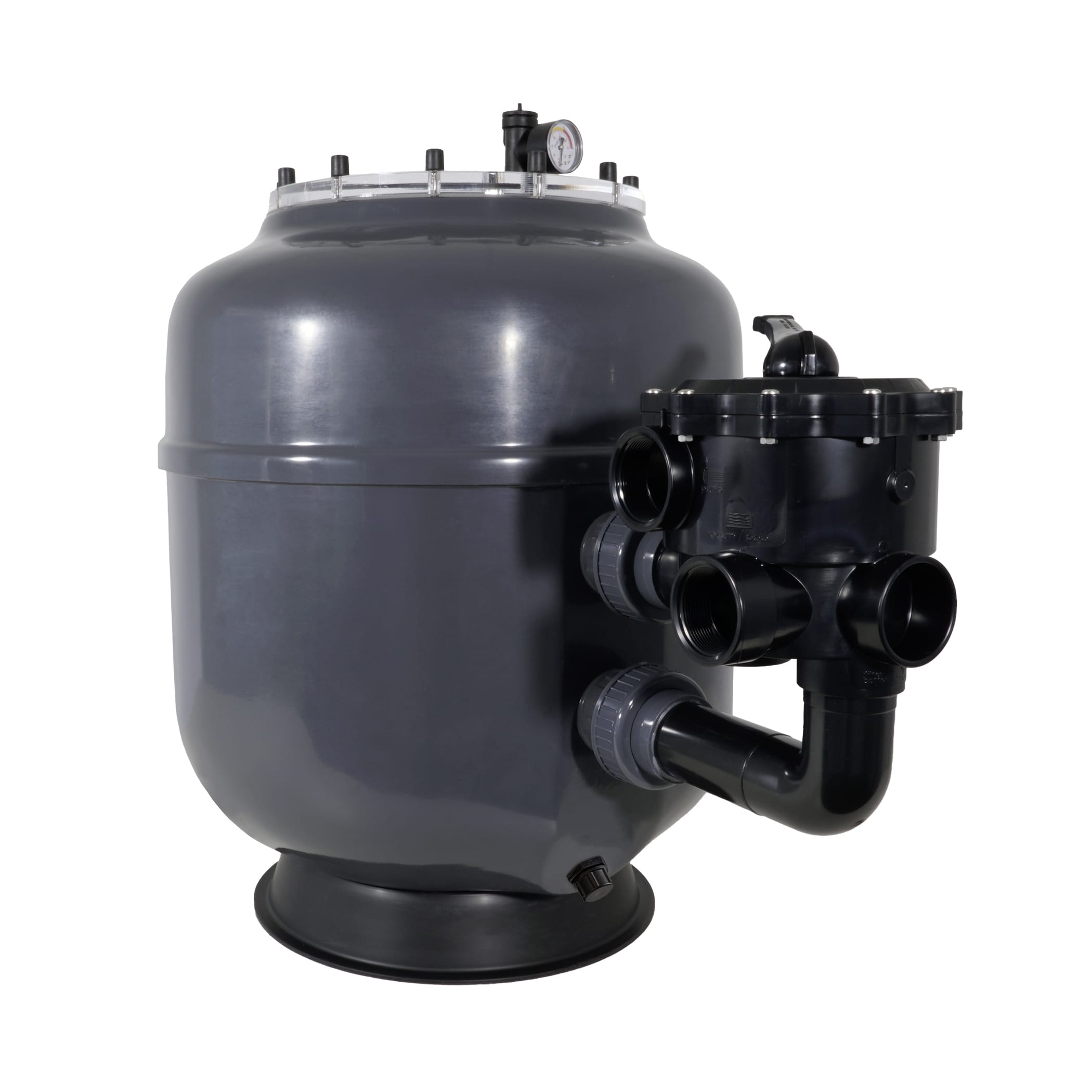

Polyester filter Bregenz 3 Pro, d500, incl. original Praher 6-way valve 1 1/2" in black, side mount, transparent flange cover, RAL7024 graphite grey

Polyester filter Bregenz 3 Pro including 6-way valve

• d390 mm
  transparent lid
• 2 bar
  operating pressure
• water drain
  below valve connections
• 6-way valve
  included

Description

Side mount filter container made of high-quality glass fiber reinforced plastic. With large opening at the top and drainage under the valve connections. Handmade to ensure maximum chemical and mechanical resistance. Large transparent filter cover (d390 mm). The built-in parts are made of PP, ABS and PVC. All installed screws are made of high-strength, corrosion-resistant INOX (stainless steel), nuts are made of nickel-plated brass.

5-year guarantee on filter container.

Product details

• Including original Praher 6-way valve, 1 ½" or 2", black
• DIN EN 16713 compliant
• Large transparent lid (d390 mm)
• Supplied with vent valve and pressure gauge (scale up to 4 bar)
• Water drain below the valve connections
• Max. operating pressure: 2 bar
• Test pressure 2.6 bar
• Ozone-resistant inner coating
• Side mount
• Filter arm slots of 0.25 mm
• Filter container in RAL7024 graphite gray
• 5-year guarantee on filter container

Dimensions

	d500	d610 (1 ½")	d610 (2")	d765	d920
Connection	1 ½"	1 ½"	2"	2"	2"
D inside (mm)	480	590	590	740	900
D outside (mm)	510	620	620	770	920
Height A (mm)	630	735	735	805	930
B (mm)	125	125	140	140	140
C (mm)	305	305	275	240	250
Filtration area (m²)	0.18	0.27	0.27	0.43	0.64
Flow rate (m³/h)*	9.1	13.7	15.8	21.5	31.9
Lid D (mm)	390	390	390	390	390
Art.Nr.	7301357	7301358	7301359	7301360	7301361

* (v = 50 m/h)

Dimensions Bregenz 3 Pro

Filling quantities
