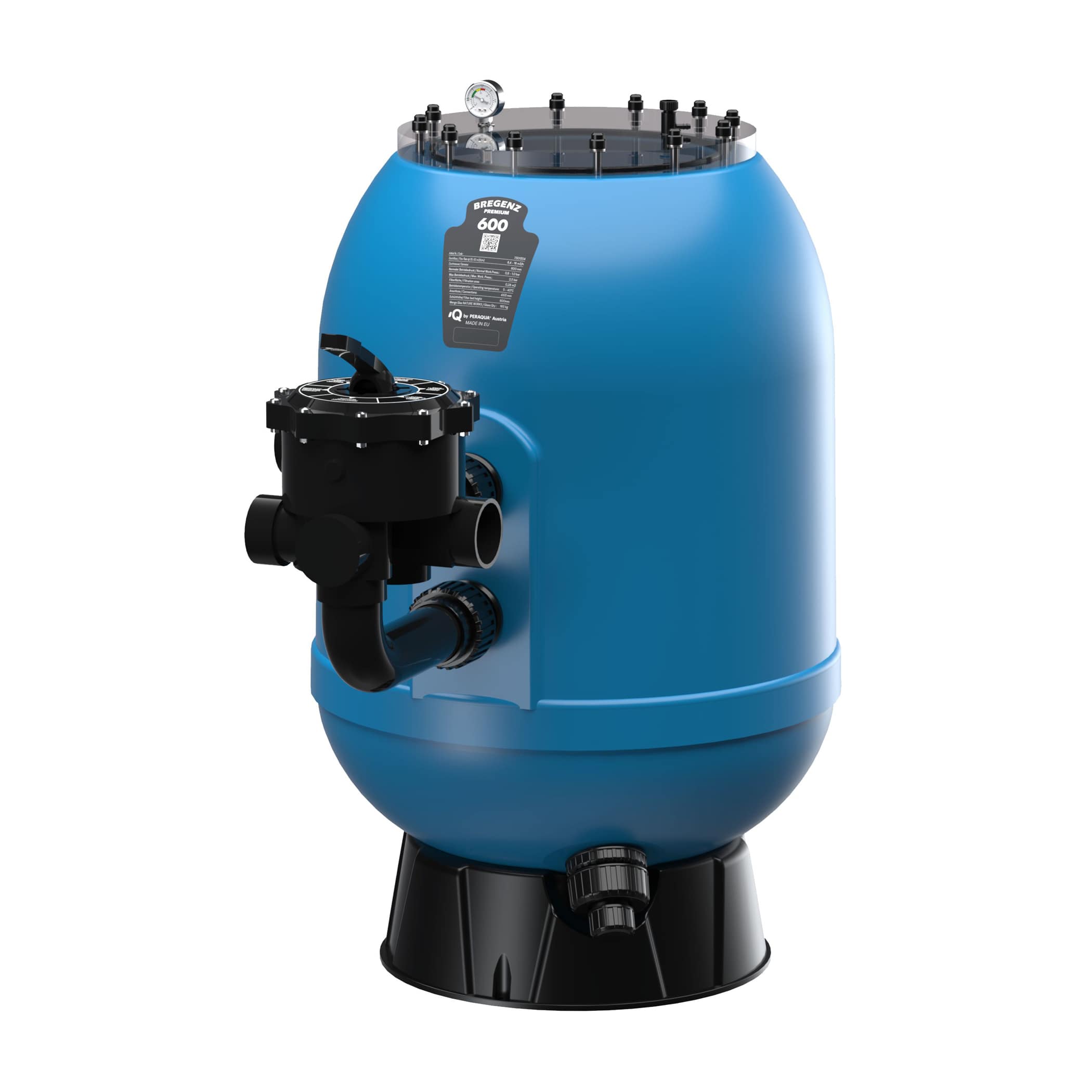

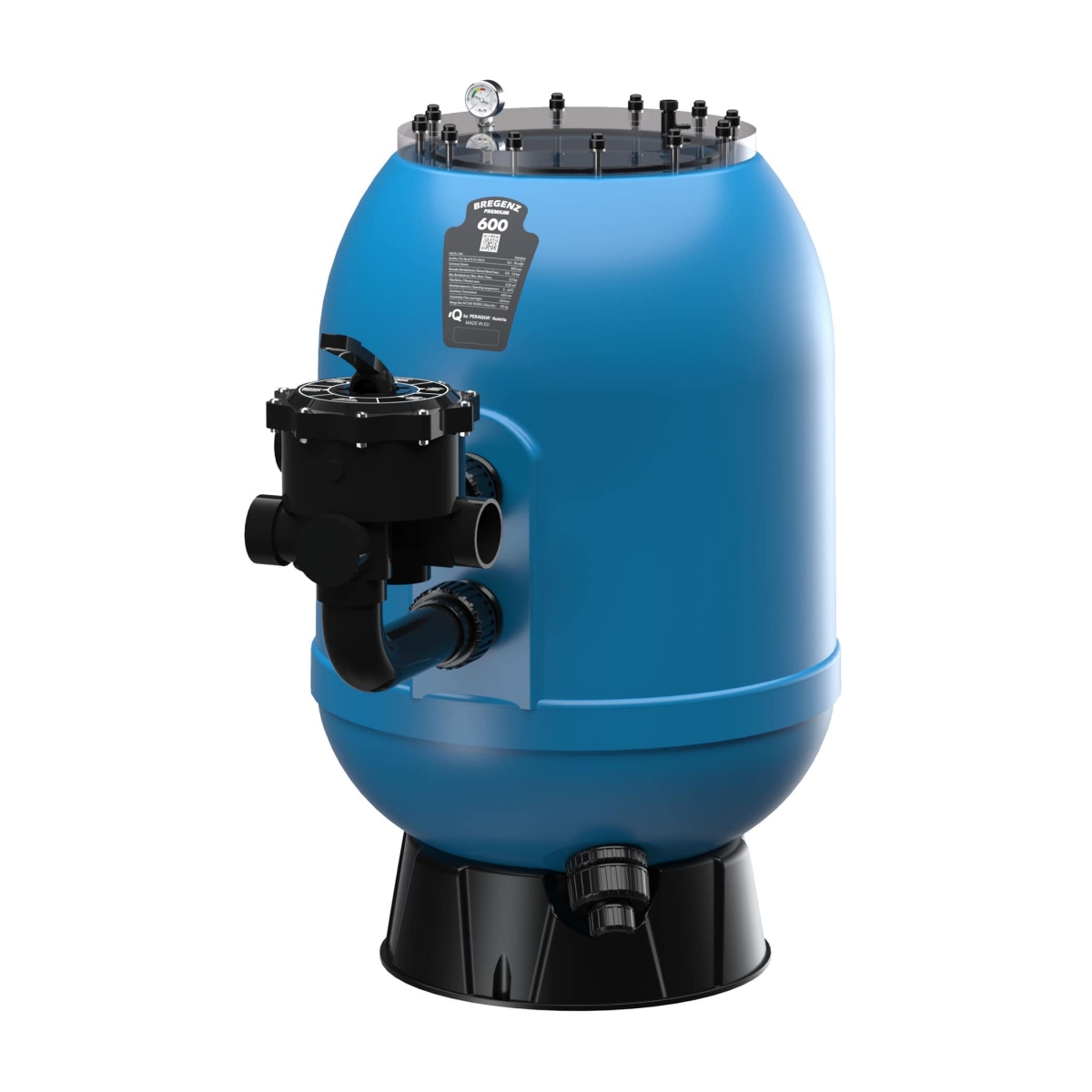

Polyester filter Bregenz 2 Premium, d600, incl. original Praher 6-way valve 1 ½" in black, side mount, transparent flange cover, RAL5015 sky blue

Polyester filter Bregenz 2 Premium, sm, including 6-way valve

• d400 mm
  transparent lid
• 1.5 bar
  operating pressure
• filtration bed
  extra high
• 6-way valve
  included

Description

Side mount filter container made of high-quality glass fiber reinforced plastic. Large transparent lid (d400 mm). Particularly easy to inspect and maintain. With extra high filtration bed for improved filtration.

5-year guarantee on filter container.

Product details

• Including original Praher 6-way valve, 1 ½" or 2", black
• DIN EN 16713-1 compliant
• Large transparent lid (d400 mm) made of methacrylat with O-ring seal
• Extra high filtration bed
• V4A pressure gauge adaptor kit including gasket, washer and nut
• Plastic nut covers
• Drain valve kit
• Nickle plated brass nuts M8
• Max. operating pressure: 1.5 bar
• Max. test pressure: 2.5 bar
• Maximum working temperature: +50°C
• Head loss in clean filter: <50 kPa
• Side mount
• Filter container in RAL5015 sky blue
• 5-year guarantee on filter container

Dimensions

	d500	d600 (1 ½")	d600 (2")	d750	d900
Connection	1 ½"	1 ½"	2"	2"	2"
D inside (mm)	500	600	600	750	900
D outside (mm)	520	620	620	770	930
Height A (mm)	946	1010	1010	1115	1150
B (mm)	125	125	140	140	140
C (mm)	450	530	485	565	585
Filtration area (m²)	0.20	0.28	0.28	0.44	0.63
Flow rate (m³/h)*	10	14	16	22	32
Lid D (mm)	400	400	400	400	400
Art.Nr.	7301798	7301799	7301800	7301801	7301802

* (v = 50 m/h)

Dimensions Bregenz 2 Premium

Filling quantities
