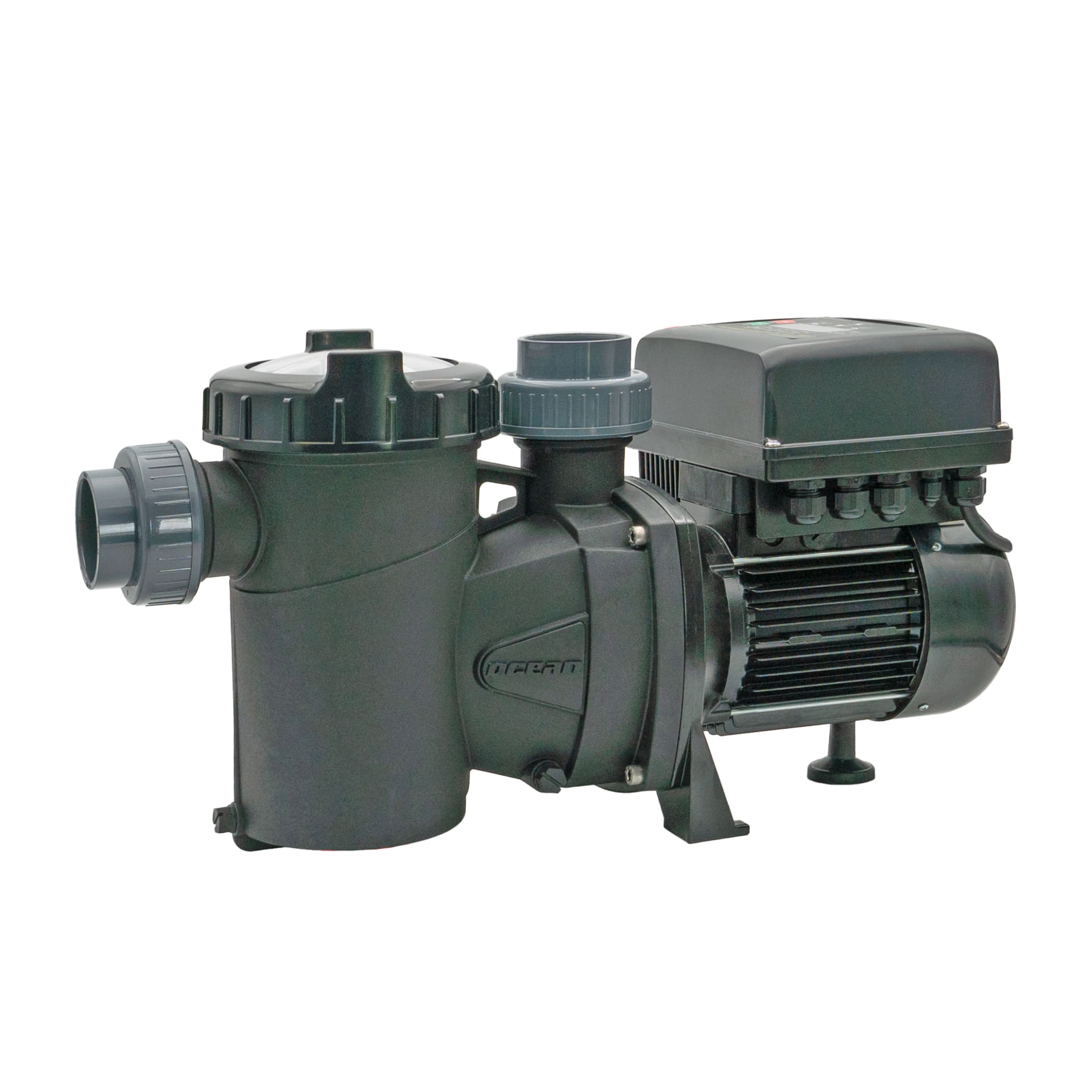

Ocean pool pump Vario iQ 150
- Variable speed
inverter pump - IE4 Motor
noise-optimized - MODBUS RTU
interface - Ready to plug in
product
Description
The self-priming Ocean® Vario iQ 150 pool pump features integrated inverter technology and stepless speed control. Operation can be adapted to different requirements and pool sizes.
The pump is equipped with an IE4 permanent magnet motor and is designed for continuous use in pool applications. The sensorless and brushless design ensures low-wear operation of the drive components.
The integrated MODBUS-RTU interface allows the pump to be integrated into iQnnect, building automation, and smart home systems. Additionally, various options are available for external control and connection of other components.
The pump can also be controlled via devices from the Aquastar series using the digital inputs. This allows you to take advantage of features such as demand-based filter performance during filtration and backwashing.
Alternatively, the control unit can be mounted up to 30 m away from the pump (minimum cable cross-section: 4 x 2.5 mm²).
The difference to the Ocean® Inver iQ 300 pool pump, apart from the performance, is also in the control: With the Vario iQ 150, only the speed can be controlled, and not the volume flow as with the Inver iQ 300.
Product details
| Vario iQ 150 | |
|---|---|
| P1 (kW) | 1.1 |
| P2 rated power (kW) | 1.28 |
| P2 rated power (HP) | 1.74 |
| I max. (A) | 10.5 |
| Flow rate* (m³/h) | bis 21 |
| Voltage 50/60 Hz (V) | 230 |
| Water Connection | 2" IG und AG |
| Noise level (db) | ~ 45 |
| Protection class | IP55 |
| Efficiency class | IE4 |
| Art.Nr. | 7301854 |
* at 10 m
Delivery head: Vario iQ 150
Features
- IE4 permanent magnet motor
- Sensor-based and brushless drive technology
- Pump housing made of glass-fiber-reinforced plastic
- Large pre-filter (4.6 l)
- Two-piece transpaent lid with opening aid
- 4 individually configurable filter programs
- Stainless steel screws and stainless steel shaft
- Stepless speed control
- Noise-optimized operation
- Self-priming design
- Suitable for salt electrolysis systems up to < 7 g/l
- Alert when pre-filter is dirty
- Input for NTC temperature sensor
- Plug-and-play design
- Flow rate up to 21 m³/h at 10 m head
- Speed control
- Two drain outlets
- IP55 protection rating
- External control via MODBUS-RTU, 0–10 V signal, or 4–20 mA signal
- Two freely programmable relay outputs
- Four digital inputs
- Robust mechanical seal
- Connection via 2" (d63) male and female threads
- Protection against dry running, overpressure, and underpressure
- Maximum water temperature < 40 °C
- Maximum ambient temperature 40 °C
- Maximum operating pressure 1.9 bar
Dimensions
| iQ 150 | |
|---|---|
| Length (mm) | 625 |
| Height (mm) | 322 |
| Width (mm) | 216 |
| Height connection front (mm) | 216 |
| Height connection top (mm) | 322 |
