Ocean® pool pump series O

Please select a variant to see the product information.

Description
Downloads

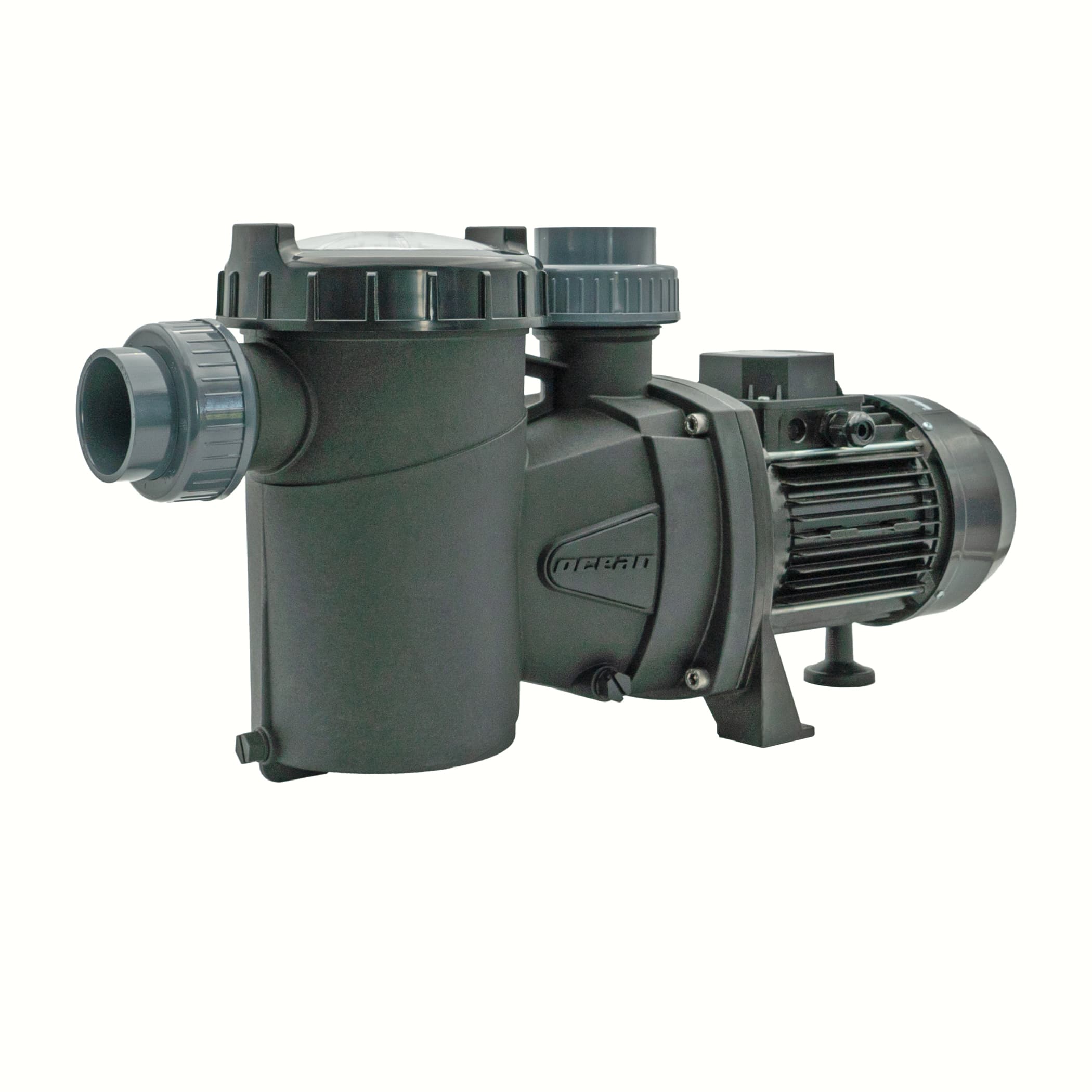

Ocean pool pump series O

IE3 motor
low noise level
<7 g/l
suitable for salt water
large pre-filter
incl. 2-part lid

Description

The self-priming Ocean® pump series O for pools achieves a very high filtration performance. The particularly large pre-filter (4.6 l) offers high filter quality and requires significantly less cleaning compared to conventional filter pumps.

The polycarbonate lid of the pre-filter is transparent and makes maintenance easier.

The O series filter pump is designed so that there is no possible electrical contact with the water.

Product details

Swipe/scroll to see all columns

	O50		O75		O100		O150		O200		O300
P1 (kW)	0.53	0.49	0.74	0.70	0.97	0.92	1.38	1.33	1.84	1.78	2.64	2.54
P2 rated power (kW)	0.37	0.37	0.55	0.55	0.75	0.75	1.10	1.10	1.50	1.50	2.20	2.20
P2 rated power (HP)	0.50	0.50	0.75	0.75	1.00	1.00	1.50	1.50	2.00	2.00	3.00	3.00
I max. (A)	4.2	1.7	5.0	2.0	5.5	2.2	7.3	2.9	9.2	3.5	12.2	5.0
Flow rate* (m³/h)	11,1	11,1	13,5	13,5	18	18	21	21	24	24	29	29
Voltage 50 Hz (V)	230	400	230	400	230	400	230	400	230	400	230	400
Water Connection	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG	2" IG+AG
Noise level (db)	66	66	66	66	67	67	68	68	68	68	69	69
Protection class	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55
Efficiency class	IE3	IE3	IE3	IE3	IE3	IE3	IE3	IE3	IE3	IE3	IE3	IE3
Plug-in ready: **	yes	yes	yes	yes	yes	yes	yes	yes	no	no	no	no
Art.-Nr.	7301525	7301526	7301527	7301528	7301529	7301530	7301531	7301532	7301533	7301534	7301535	7301536

* at 10 m | ** cable length: 2.5 m

Pump characteristics

Delivery head: Ocean series O

Features

Highly efficient IE3 engine, single or three phase
Available in six different sizes, from 0.5 to 3 HP
Large pre-filter (4.6 l) including 2-part lid with key for easy opening
Housing made of glass fiber reinforced plastic
Double connection options: internal and external thread 2” (d63), high-quality IBG fittings included in the scope of delivery
Single-phase models (7301525, 7301527, 7301529, 7301531) are supplied ready to plug in
Mechanical seal made of AISI-316 stainless steel
Cataphoretic dip painting
Stainless steel screws and stainless steel shaft
Protection class IP55
2 drains
Suitable for salt electrolysis (< 7g/l)

Dimensions

	Series O
Length (mm)	625
Height (mm)	322
Width (mm)	216
Height connection front (mm)	216
Height connection top (mm)	322
